Resideo L4006A1967 High or Low Limit Aquastat 100-240 Degrees F Range 5-30 Degrees F Adjustable Differential

Product Description

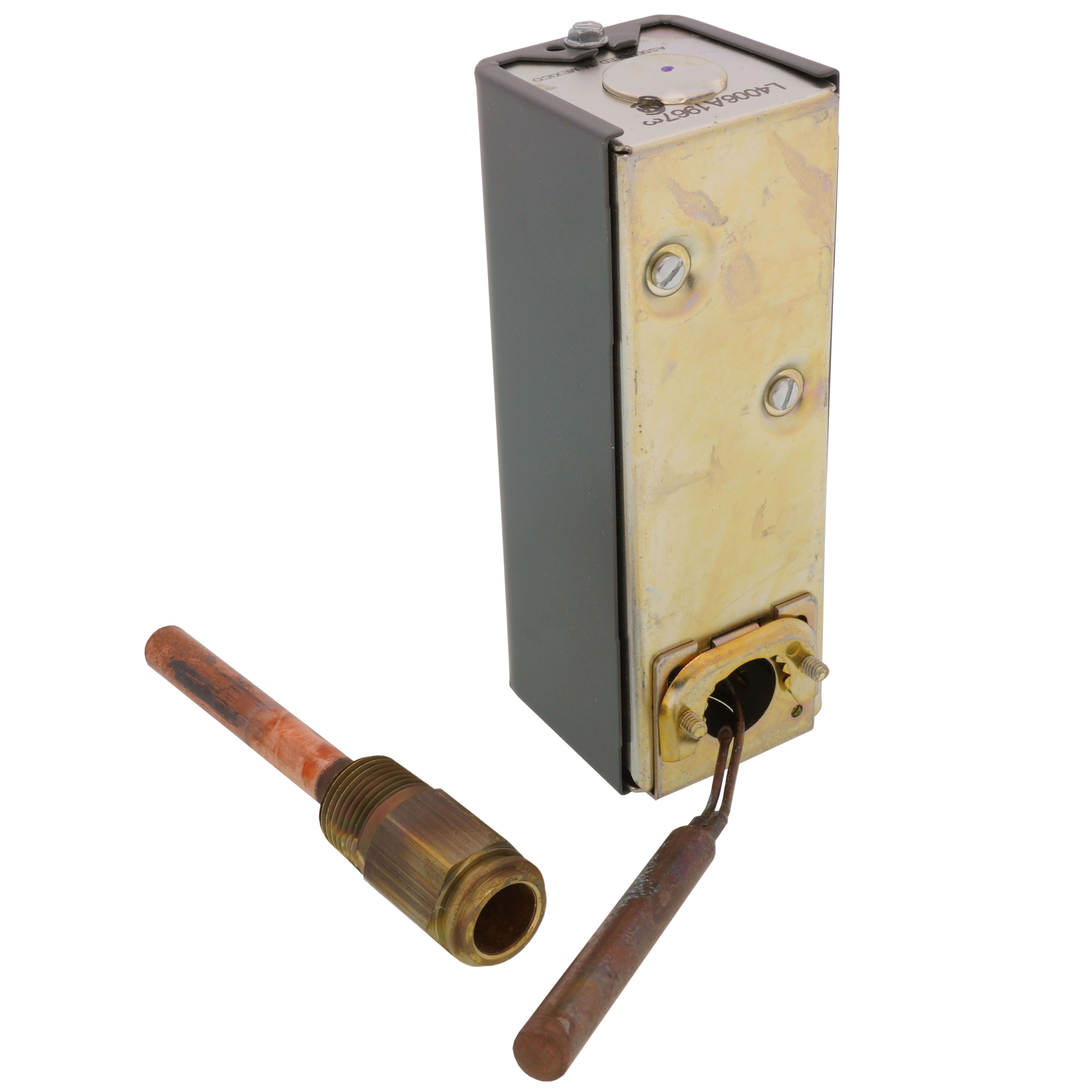

The Resideo L4006A1967 Aquastat Controller regulates the temperature of fluids in boilers and storage tanks. This model is suitable for both high and low limit applications. It comes equipped with a 1-1/2 inch well and is factory-set to stop at 240 degrees Fahrenheit.

• Direct well immersion for precise temperature control.
• Horizontal and vertical mounting options for flexibility in installation.

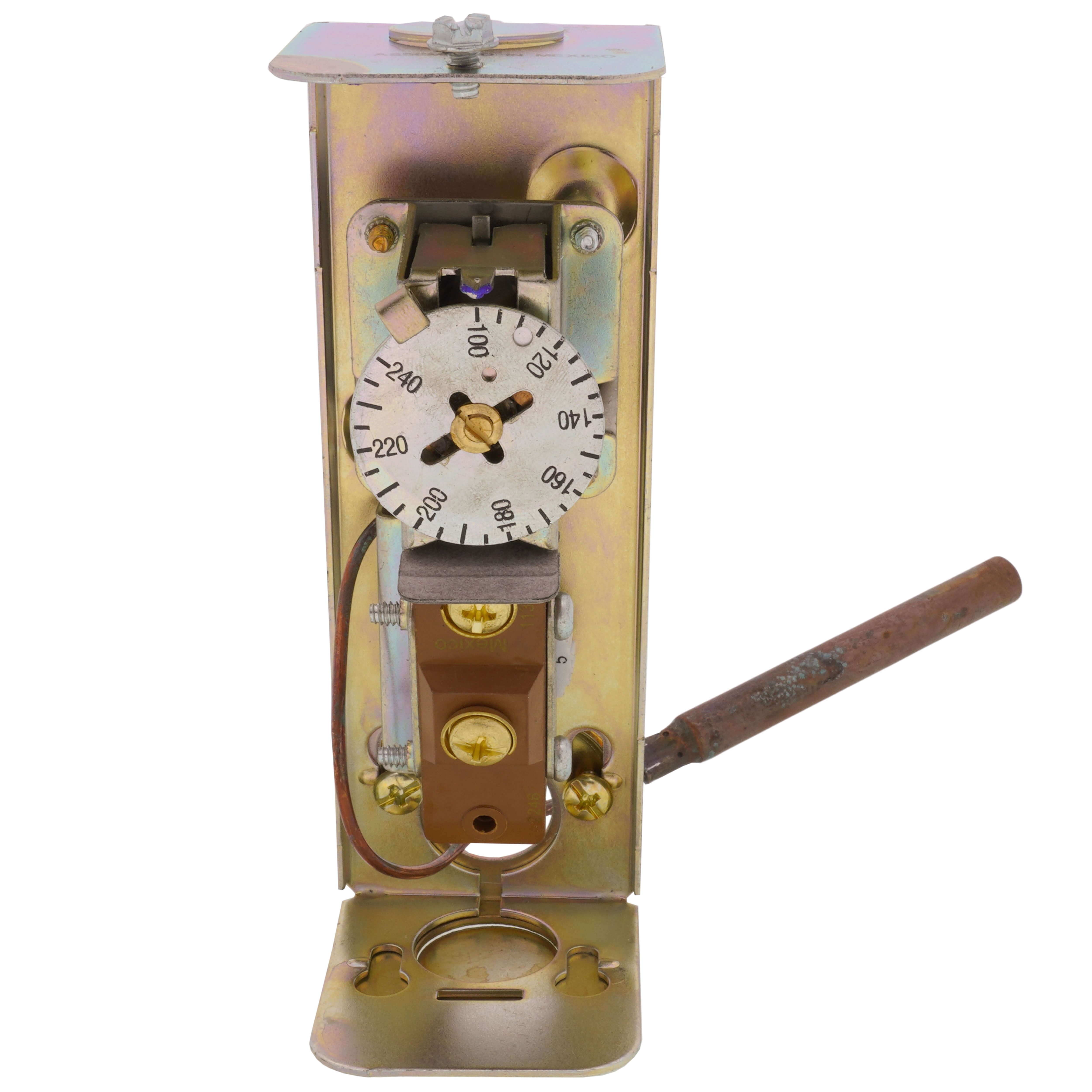

• Includes a visible control point scale and external adjustment screw for easy setting.

Product Highlights

Designed for easy integration into heating systems, this aquastat controller features a fully enclosed Micro Switch snap-acting switch, which activates on temperature rise to the set point. Notable for its reliability in maintaining system temperatures within a range of 100 to 240 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4006A1967

Technical Specifications

• Temperature Range: 100 to 240 degrees Fahrenheit
• Differential: Adjustable from 5 to 30 degrees Fahrenheit
• Mounting: Can be mounted vertically or horizontally
• Electrical Rating: Includes various models up to 8A at 120 Vac
