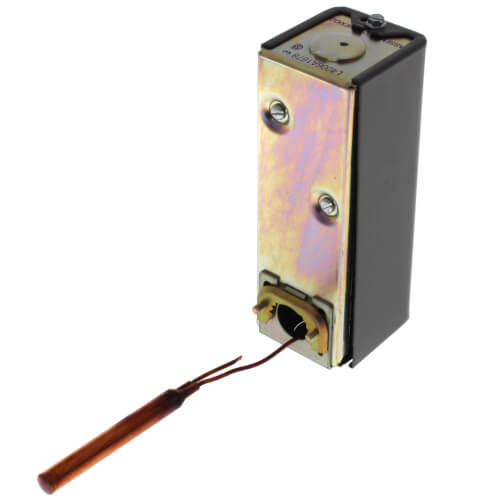

Resideo L4006A1678 High or Low Limit Aquastat 100-240 Degrees Fahrenheit Range 5-30 Degrees Fahrenheit Differential

Product Description

The Resideo L4006A1678 High or Low Limit Aquastat effectively manages the temperature of liquids in various applications such as boilers and storage tanks. This device is crucial for achieving precise temperature control in commercial heating systems.

• Temperature adjustment range from 100 degrees Fahrenheit to 240 degrees Fahrenheit with a differential of 5 to 30 degrees Fahrenheit.
• Capable of both horizontal and vertical mounting to accommodate different installation needs.
• Equipped with a Micro Switch snap-acting switch that activates on temperature rise to the set point.

Product Highlights

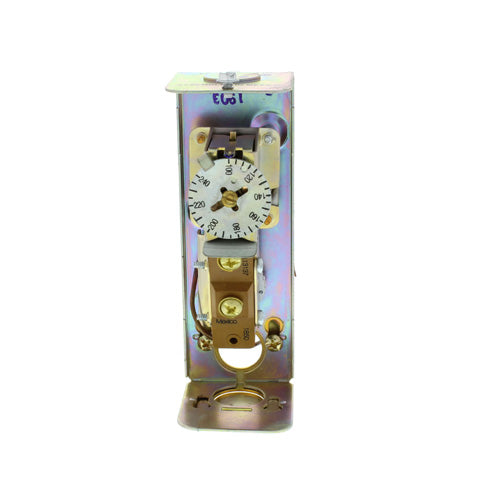

Features a visible control point scale and an external adjustment screw, simplifying the setting process. It can be directly immersed or mounted in a well, and is versatile for air sensing in ducts or exterior applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4006A1678

Technical Specifications

• Temperature Range: 100°F to 240°F
• Temperature Differential: Adjustable from 5°F to 30°F
• Mounting Options: Vertical or Horizontal
• Switch Type: SPST, contacts break on temperature rise
• Applications: High Limit, Low Limit
• Electrical Ratings: 5.1A at 240Vac, 8A at 120Vac
• Capillary Length: 3 inches
• Overall Width: 2 inches
• Overall Height: 5-5/8 inches
