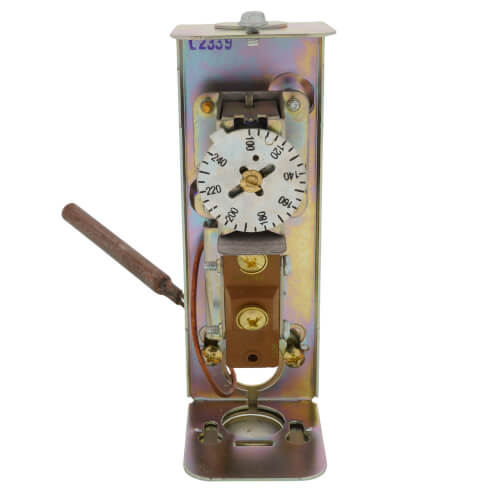

Resideo L4006A1017 High or Low Limit Aquastat, 100-240 DegreeF range, 5-30 DegreeF Adj Differential

Product Description

The Resideo L4006A1017 is a high or low limit aquastat designed for applications involving temperature regulation in liquids. This device operates within a temperature range of 100 degrees Fahrenheit to 240 degrees Fahrenheit and features an adjustable differential of five degrees to thirty degrees Fahrenheit.

• Immersion type design for controlling liquid temperature.
• Features snap-acting micro switches for accurate temperature control.
• Compatible with both direct and well immersion methods.

Product Highlights

High or low limit aquastats are essential in heating systems, including boilers and storage tanks. They ensure that temperatures remain within safe limits to prevent overheating.

Product Information

Standard Information

• Manufacturer: Resideo
• Minimum Quantity: 1

Technical Specifications

• Electrical Rating: 5.1A @ 240 Vac, 8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc
• Temperature Range: 100 degrees Fahrenheit to 240 degrees Fahrenheit
• Shipping Weight: 1.37 pounds
• Length: 3.9 inches
• Width: 12.55 inches
• Height: 2.3 inches
• Well Included: Yes
• Capillary Length: 1.5 inches
