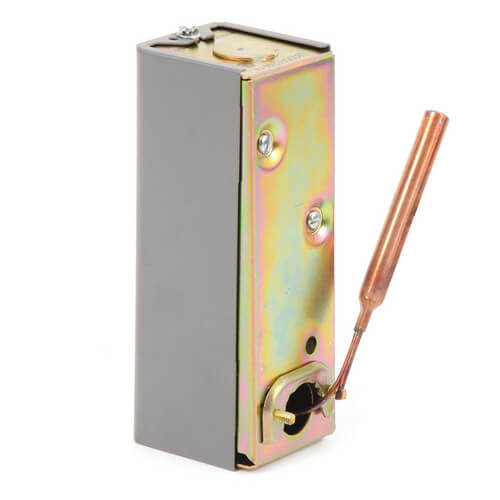

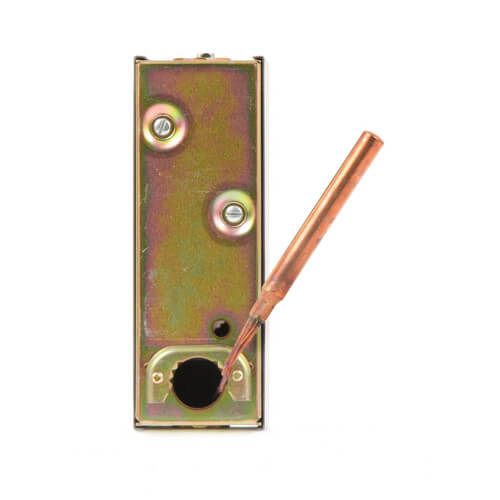

Resideo L4006A1009 High or Low Limit Aquastat 100-240 Degree(F) Range 5-Degree(F) Differential

Product Description

The Resideo L4006A1009 High or Low Limit Aquastat controls the temperature of liquids in boilers and storage tanks. This product can be used for both horizontal or vertical insertion of the sensing element, including either direct or well immersion.

• Adjustable temperature range of 100 to 240 degrees Fahrenheit.
• Equipped with a 5-degree Fahrenheit differential for sensitive response.
• Includes SPST switch type, breaking contacts on temperature rise.

Product Highlights

This Aquastat features a Micro Switch snap-acting switch enclosed fully to enhance safety and durability. Visible control point scales and an external adjustment screw make setting and monitoring easy, enhancing efficiency in heat management systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4006A1009

Technical Specifications

• Electrical Rating: 8A at 120 Vac, 5.1A at 240 Vac
• Temperature Range: 100°F to 240°F
• Maximum Differential: 5°F
• Installation: Horizontal or Vertical
• Switch Type: SPST, break on temperature rise
• Well Included: Yes
