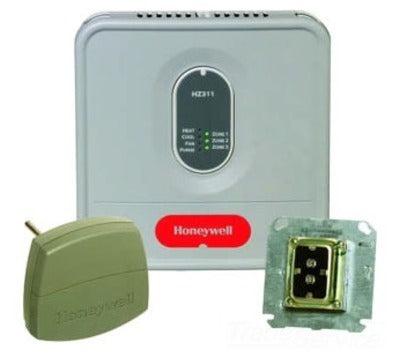

RESIDEO HZ311K/U TrueZONE Zoning Control Kit, With HZ311 Zone Control Panel, AT140 Transformer and C7735A Discharge Air Temperature Sensor

Product Description

The RESIDEO HZ311K/U is a TrueZONE Zoning Control Kit designed for conventional, single-stage HVAC systems. It effectively manages up to three zones with one heating and one cooling stage. The kit includes the HZ311 Zone Control Panel, an AT140 Transformer, and a C7735A Discharge Air Temperature Sensor.

• Manages up to three zones
• Includes zone control panel, transformer, and temperature sensor
• Compatible with one heat and one cool systems

Product Highlights

This kit is suited for users looking to improve temperature control and system efficiency in multi-zone applications.

Product Information

Standard Information

• Manufacturer: RESIDEO
• Part #: 244140

Technical Specifications

• Model Number: HZ311K/U
• Control Panel Type: Panel Kit
• Voltage Rating: 18 to 30 V AC
• Operating Temperature: Minimum -40 degrees F, Maximum +165 degrees F
• Weight: 4.05 lb.
• Dimensions: Length - 8 inches, Width - 1.86 inches, Height - 8.12 inches
• Display Type: LED
• Includes: HZ311 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
• Stages: 1 Heat/1 Cool
• For Use With: ZD, ARD, MARD Dampers
