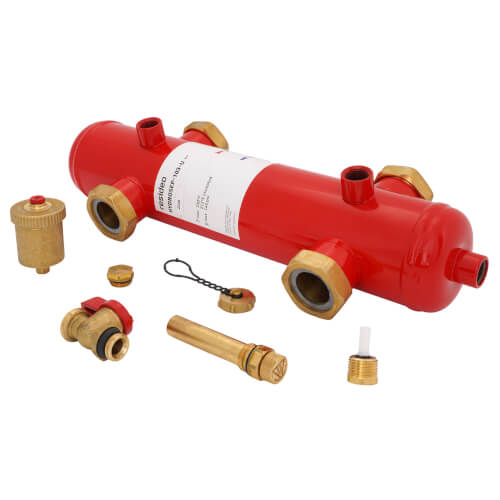

RESIDEO HYDROSEP-103-U Union Hydraulic Separator 1-1/4 Inch

Product Description

The RESIDEO HYDROSEP-103-U Union Hydraulic Separator offers a robust solution to maintain efficient boiler operation by streamlining hydraulic circuits. This model requires two 1-1/4 inch adapters for full installation.

• Includes flanged and union models with built-in insulation.
• Designed for residential and commercial settings.
• Features a metal mesh that minimizes reciprocal circulator influences and system turbulence.

Product Highlights

This hydraulic separator aids in debris and air removal within heating systems, enhancing overall efficiency. Its magnetic feature pulls out metal debris, protecting crucial components like the boiler and heat exchanger. The included insulated cover ensures additional protection.

Product Information

Standard Information

• Temperature Range: 32°F to 230°F
• Maximum Working Pressure: 145 PSI
• Air Vent Maximum Pressure: 102 PSI
• Fluid Compatibility: Glycol-based solutions up to 50% concentration

Technical Specifications

• Separator Connections: ASTM B124 UNS C37700
• Air Vent Valve Connection: 1/2inch F
• Drain Tap Connections: 1/2inch M + pipe-holder
• Additional Frontal Connection: 1/2inch F
