Resideo HYDROSEP-102-U/U hydraulic separator union 1 inch

Product Description

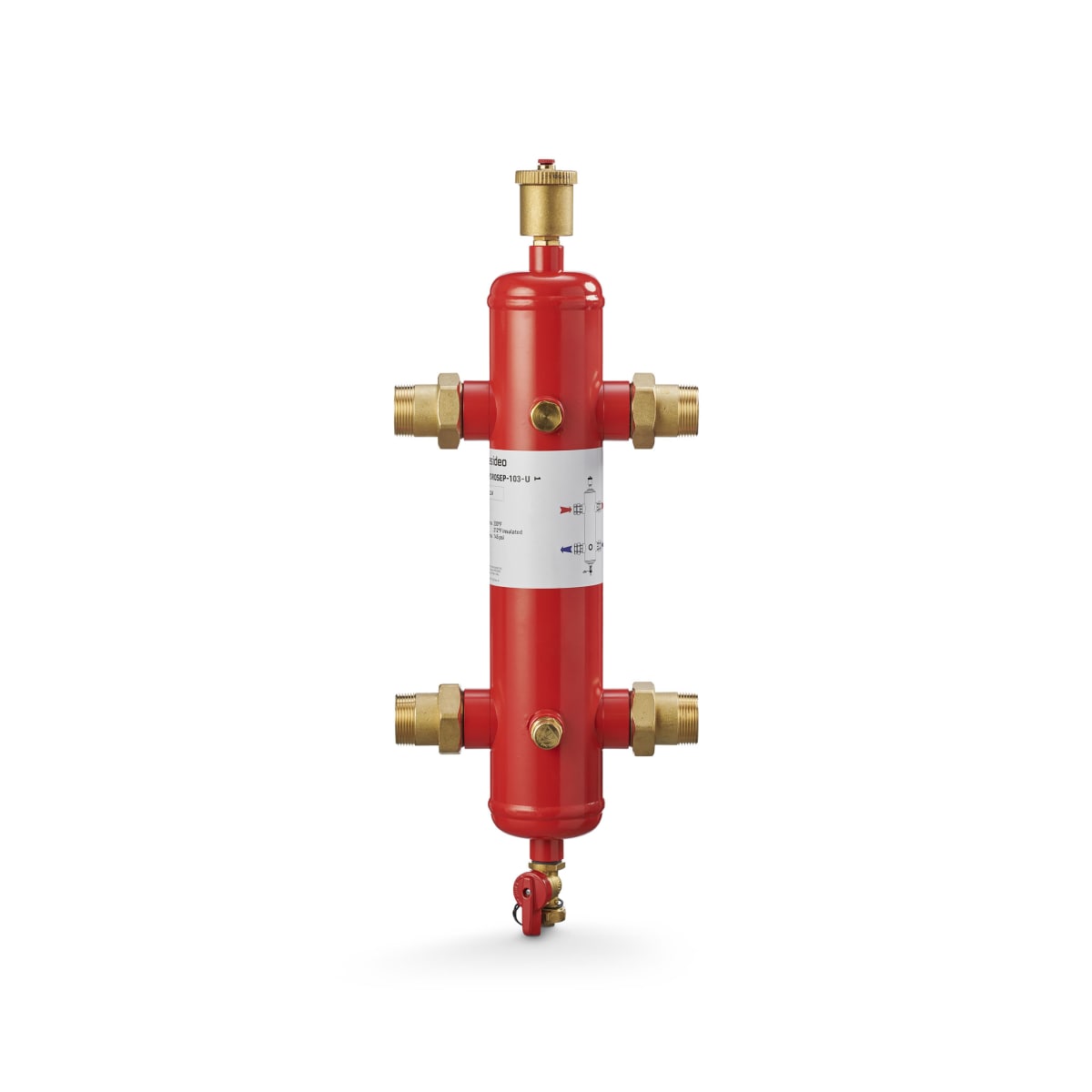

The RESIDEO HYDROSEP-102-U/U is a 1-inch hydraulic separator designed to optimize boiler efficiency and protection. This union type separator effectively manages critical flow between hydraulic circuits, gathering dirt and magnetite to improve heat transfer and remove air. It operates within a temperature range of 32 to 230 deg F and a working pressure of 145 psi, suitable for water and up to 50% glycol mixtures.

• Magnet included for filtering and balancing.

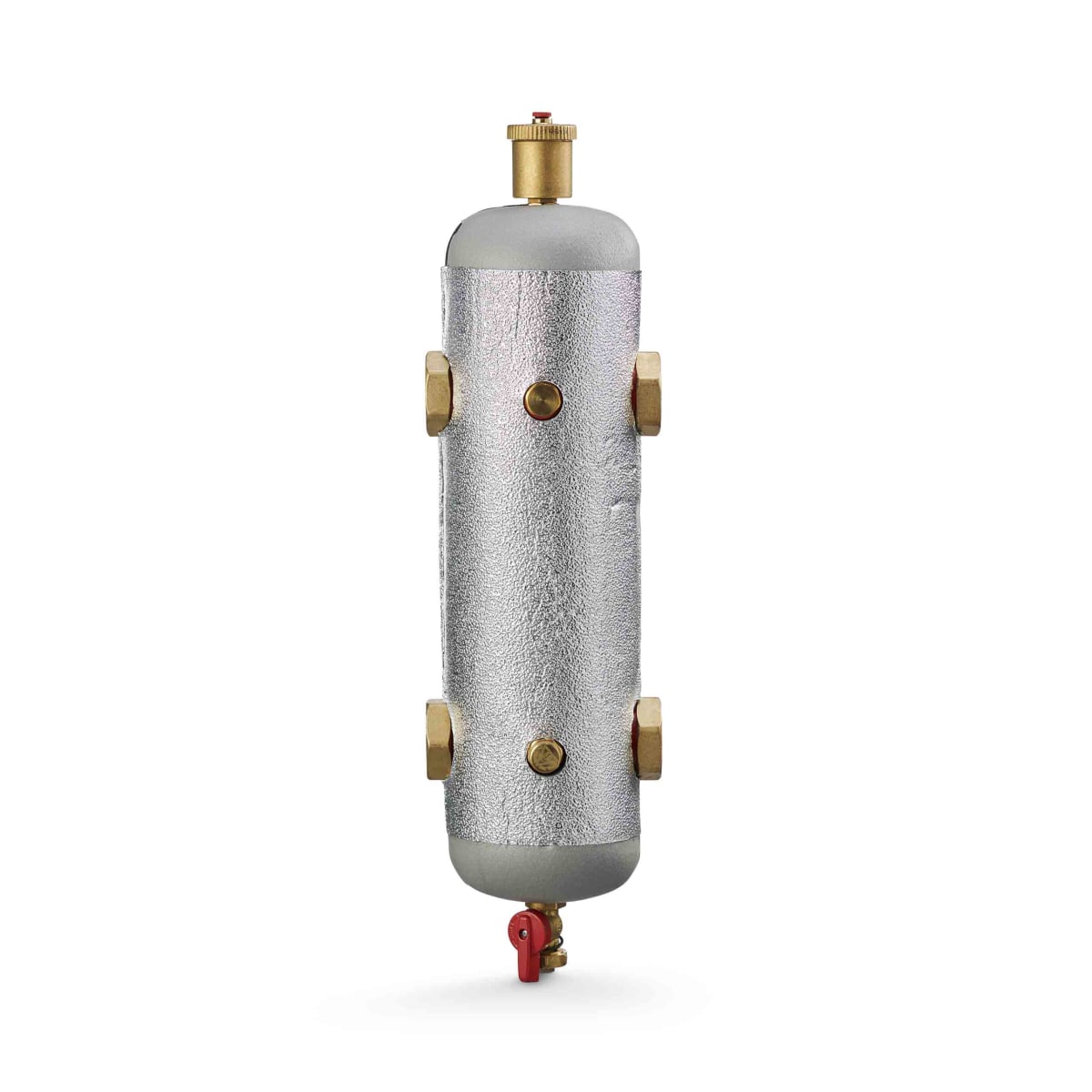

• Insulation included with every model.
• Ideal for residential and commercial applications.

Product Highlights

Enhances boiler efficiency and protection by separating hydraulic circuits and removing impurities.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: HYDROSEP-102-U/U

Technical Specifications

• Nominal Size: 1 inch
• Type: Hydraulic Separator
• Connection Type: Union
• Controlled Media: Water, 50% (maximum) Glycol Mixture
• Operating Temperature: 32 to 230 deg F
• Working Pressure: 145 psi
