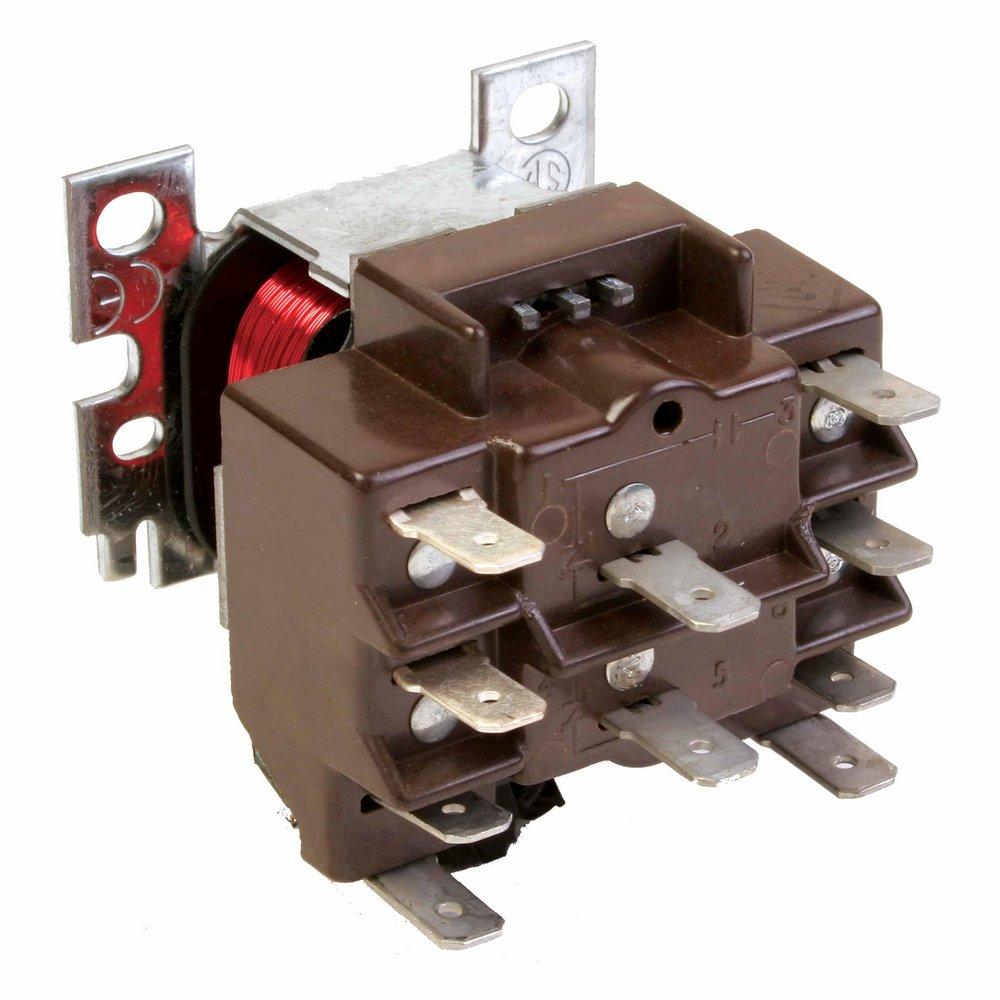

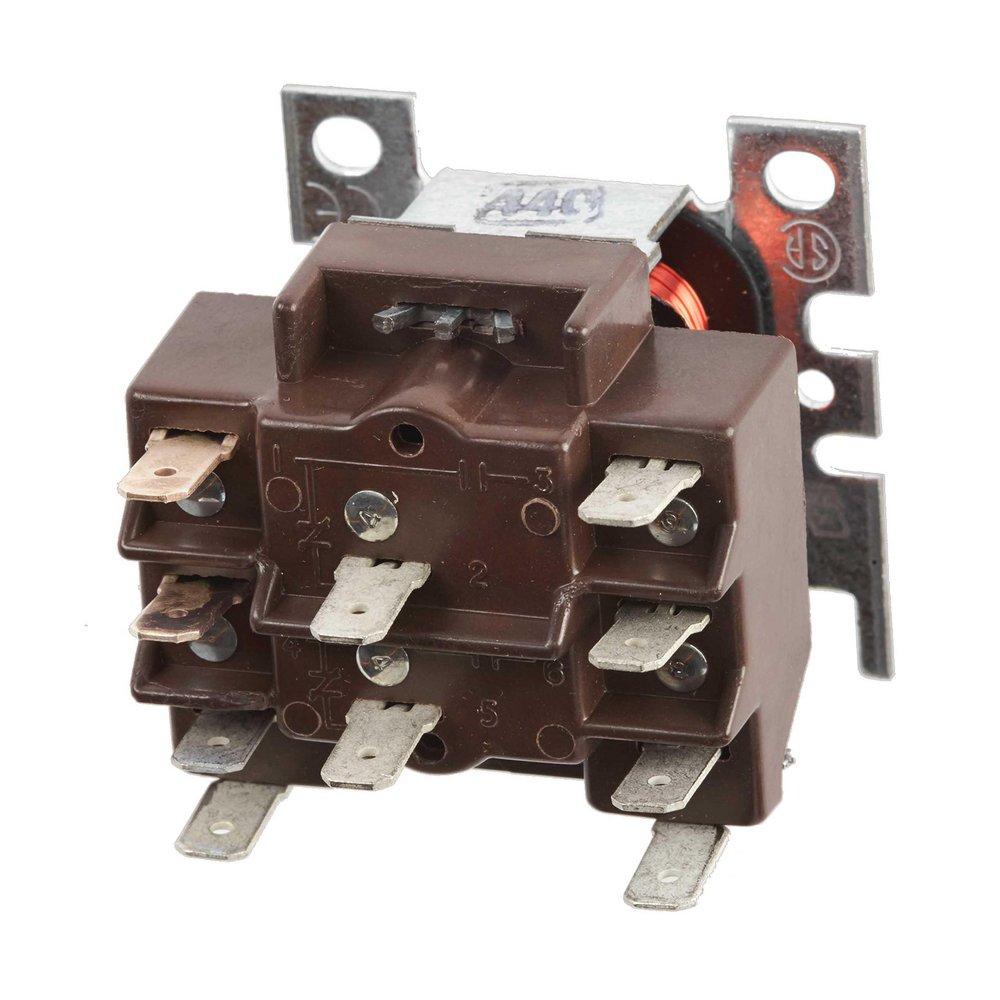

Resideo R4222D1013 120V General Purpose Relay with DPDT Switching

Product Description

The Resideo HR4222D1013 is a 120V general purpose relay designed for robust performance in switching applications. Ideal for use in refrigeration, air conditioning equipment, and in appliances that require reliable operations.

• DPDT (Double Pole Double Throw) configuration for comprehensive control
• Compatible with various systems including Steveco 90-340 and Mars 90340

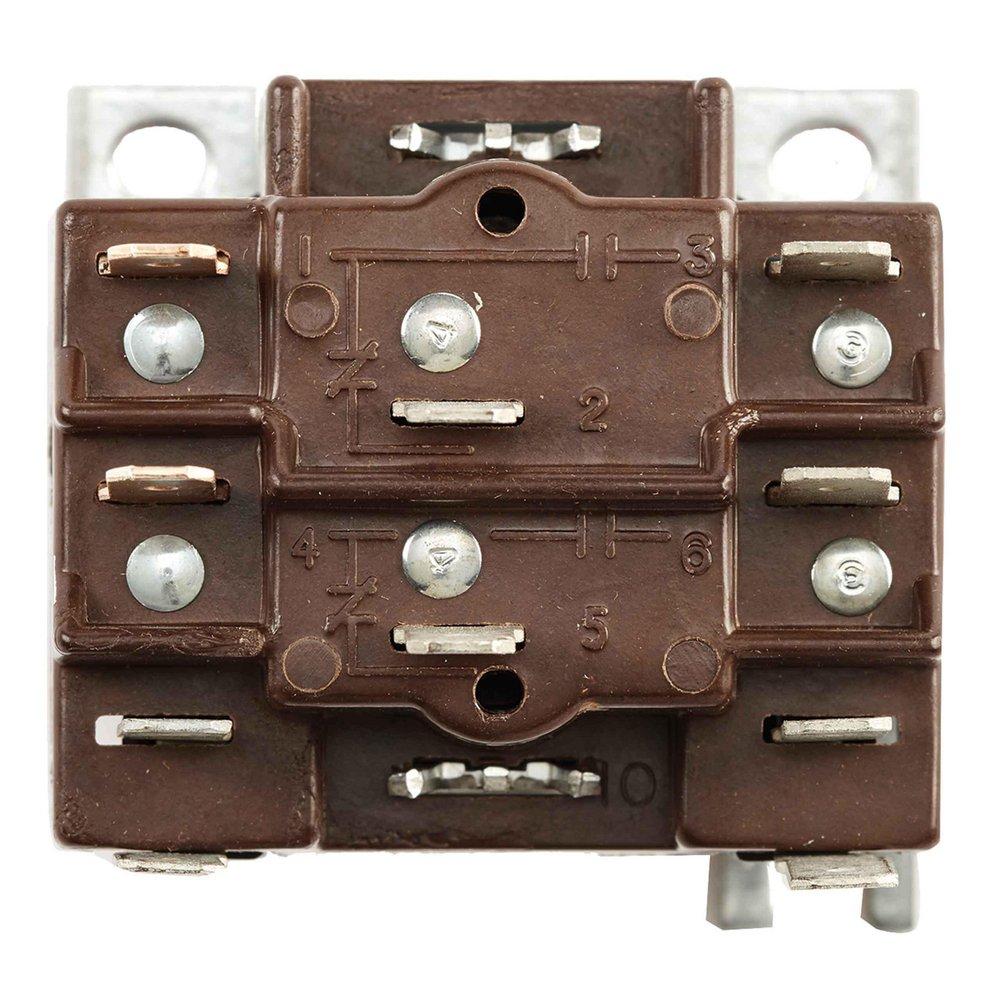

• Easy identification features with molded terminal numbers and circuit diagrams

Product Highlights

This relay ensures efficient operation with its untaped coil that maintains cooler operational temperatures and a laminated magnet construction that enhances its efficiency. The base of the relay is engineered for simple replacement of competitive units.

Product Information

Standard Information

• Application: Universal use in HVAC and refrigeration systems
• Voltage: 120V, frequency 50-60 Hz ensuring compatibility with standard systems
• Setup: Includes single 1/4 inch quick-connect coil terminals for swift installation

Technical Specifications

• Type: DPDT
• Weight: 0.48 lbs
• Dimensions: Length 3.05 inches, Width 2.8 inches, Height 2.5 inches
