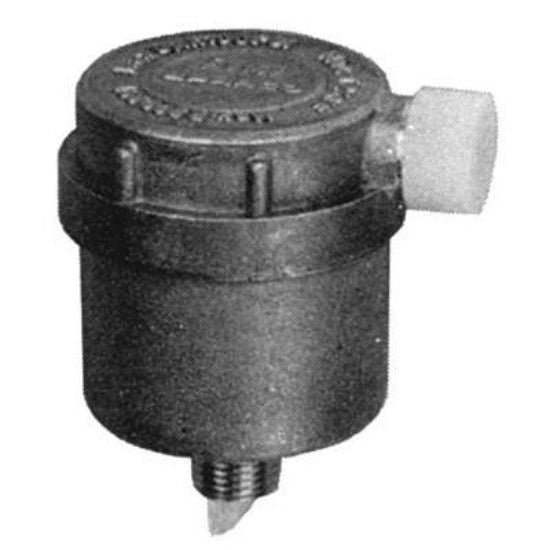

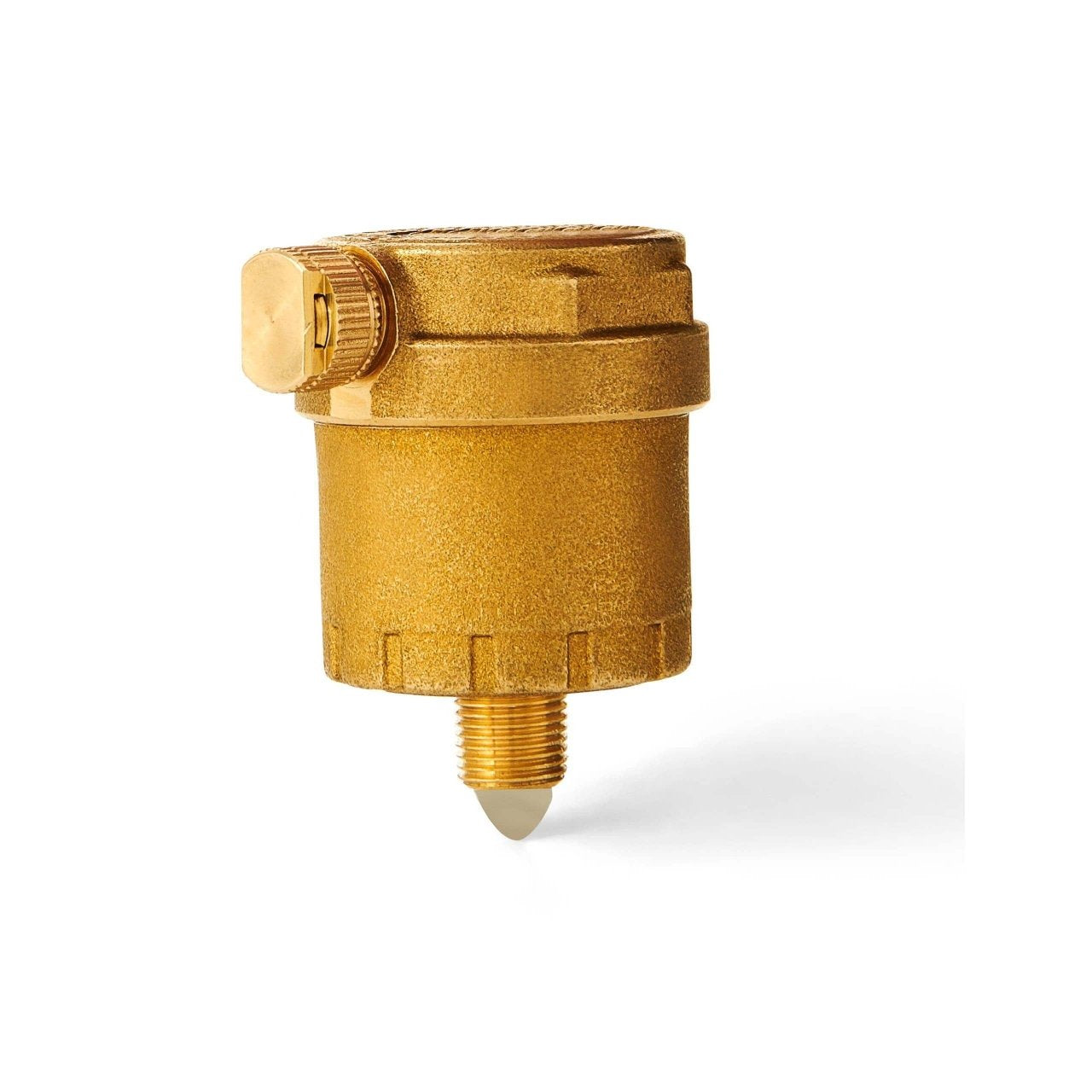

Resideo FV147A/U MaxiVent Air Vent for Heating and Cooling Systems 1/4 MNPT

Product Description

The RESIDEO FV147A/U MaxiVent is an automatic air vent designed for hydronic heating and cooling systems. This brass air valve features a low profile design, a solid brass body and cover, and a high-temperature polypropylene float. It is suitable for residential and light commercial applications, providing efficient air ventilation with a 1/4 inch MNPT connection.

• Low profile design
• Solid brass body and cover
• High temperature polypropylene float

Product Highlights

Automatic air vent for efficient air removal in hydronic heating and cooling systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: FV147A/U
• Country of Origin: Italy

Technical Specifications

• Product Type: Hydronic Air Vents
• Color: Metallic
• Application: Residential|Light Commercial|Air Ventilation|Hydronic Heating Systems|Hydronic Cooling Systems
• Compatible With: Hydronic Heating and Cooling Systems
• Controlled Media: Non Potable Water
• Bottom Connection: Yes
• Maximum Operating Pressure: 150 psi
• Body Material: Brass
• Maximum Operating Temperature: 240 °F
• Connection Type: 1/4 in. MNPT
• Number in Pack: 1
• Fitting Type: Straight
