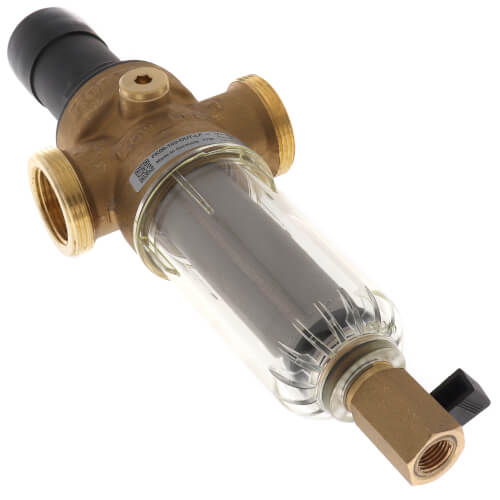

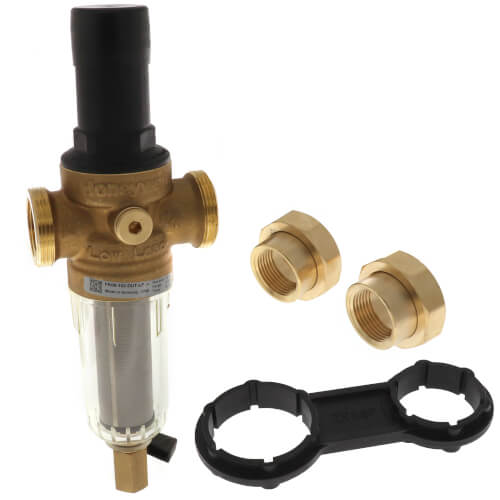

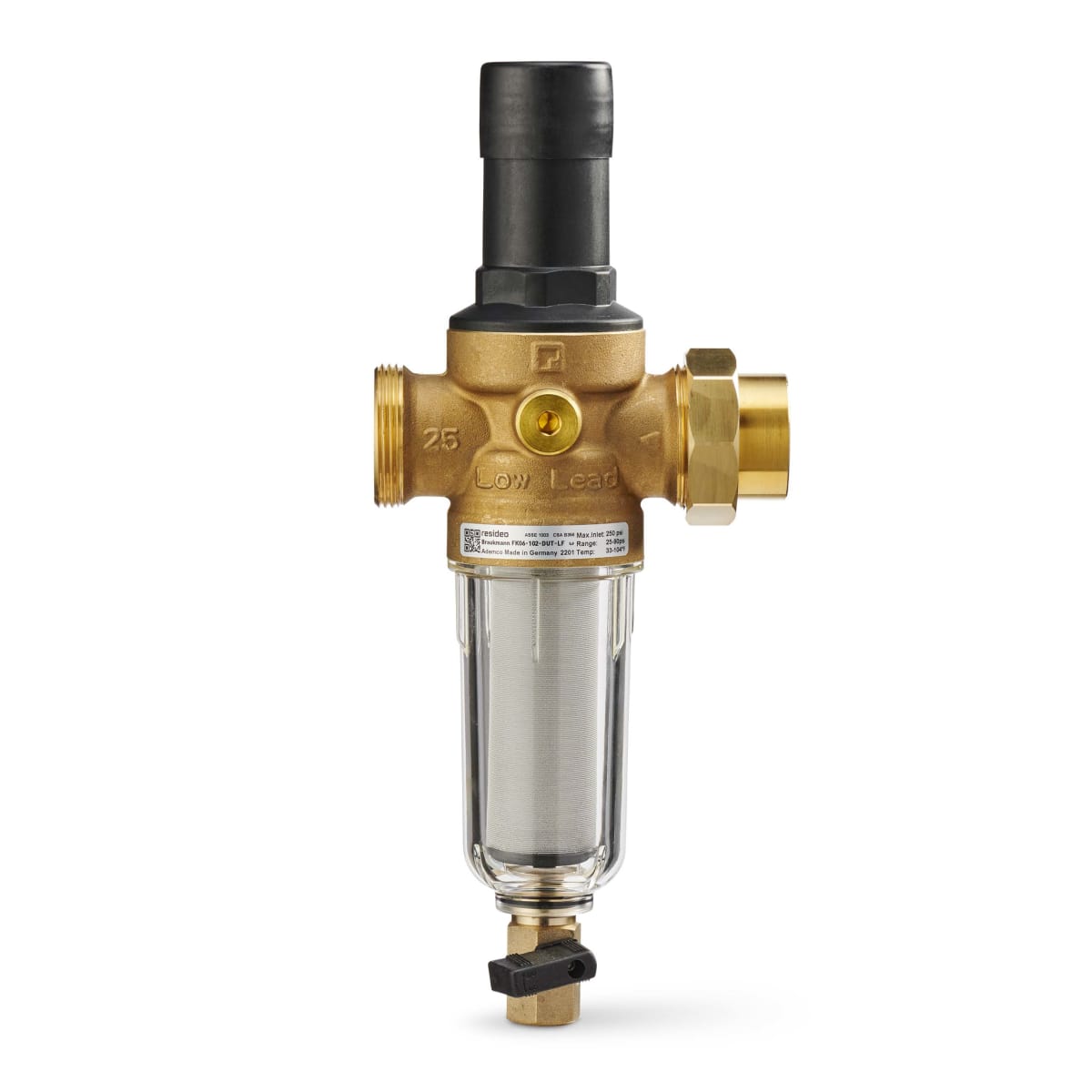

Resideo FK06-101-DUT-LF Lead-Free Pressure Reducing Valve (3/4 in NPT)

Product Description

Resideo FK06-101-DUT-LF is a lead-free pressure reducing valve with an integrated sediment filter designed to protect plumbing systems from excessive water pressure. The unit reduces incoming pressure to a preset outlet (typically 25–50 psi), includes a built-in filter to remove sediment, and features a compact, threaded 3/4 in NPT connection for point-of-entry and irrigation applications.

• Lead-free brass construction compliant with the Safe Drinking Water Act; integrated pressure reducing valve and filter
• 3/4 in NPT threaded connection with a rinseable stainless steel filter element (50 micron) and clear synthetic filter bowl for inspection
• Downstream pressure adjustment dial with set point scale; designed to maintain constant outlet pressure across varying inlet pressures

Product Highlights

3/4 in NPT lead-free PRV with built-in 50 micron stainless steel sediment filter and downstream pressure adjustment dial

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: FK06-101-DUT-LF

Technical Specifications

• Brand: Resideo
• MPN: FK06-101-DUT-LF
• Product Type: Pressure reducing valve with integrated sediment filter
• Connection Size: 3/4 in NPT
• Connection Type: NPT threaded (unit uses threaded connections for 3/4 in NPT installation)
• Material: Lead-free brass
• Lead Free Compliance: Safe Drinking Water Act compliant; NSF/ANSI 372
• Filter Type: Rinseable sediment filter with clear synthetic bowl
• Filter Micron Rating: 50 micron stainless steel element
• Set Pressure (Typical): 25–50 psi
• Differential Pressure Minimum: 14.5 psi
• Maximum Inlet Pressure: 250 psi
• Temperature Range: 33°F to 140°F
• Approvals and Certifications: ASSE 1003 Listed; CSA Certified; NSF/ANSI 61 Compliant; NSF/ANSI 372 Compliant; ACS certified; KTW approved; TUEV LGA low noise approval
• Application: Potable water, household, light commercial, irrigation, turf and industrial point-of-entry pressure regulation
• Strainer Included: Yes
• Valve Insert: Exchangeable synthetic valve insert
• Inspection Feature: Shock-resistant clear synthetic filter bowl for visual inspection
• Additional Notes: Downstream pressure adjustment dial with set point scale; unitized cartridge with replaceable components
