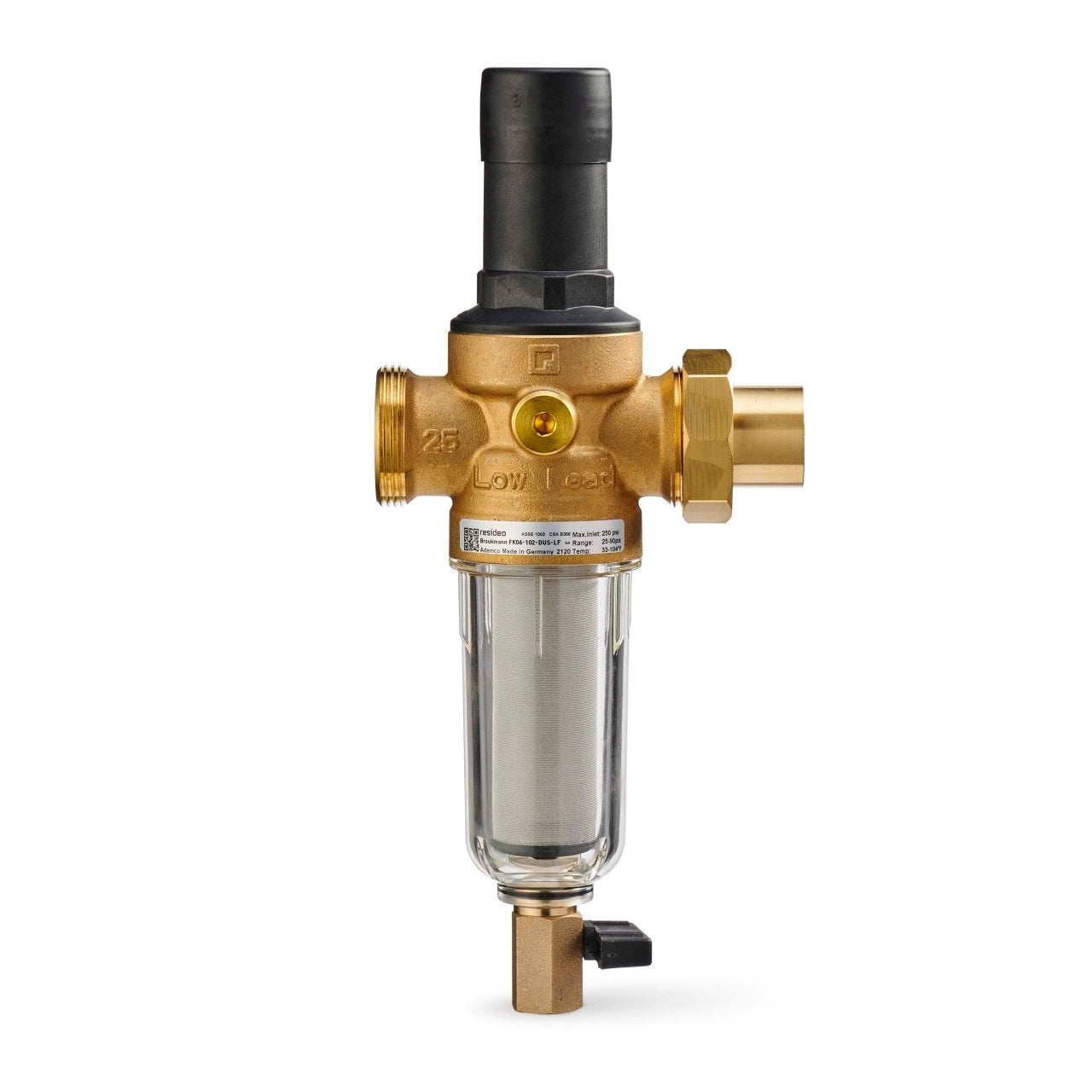

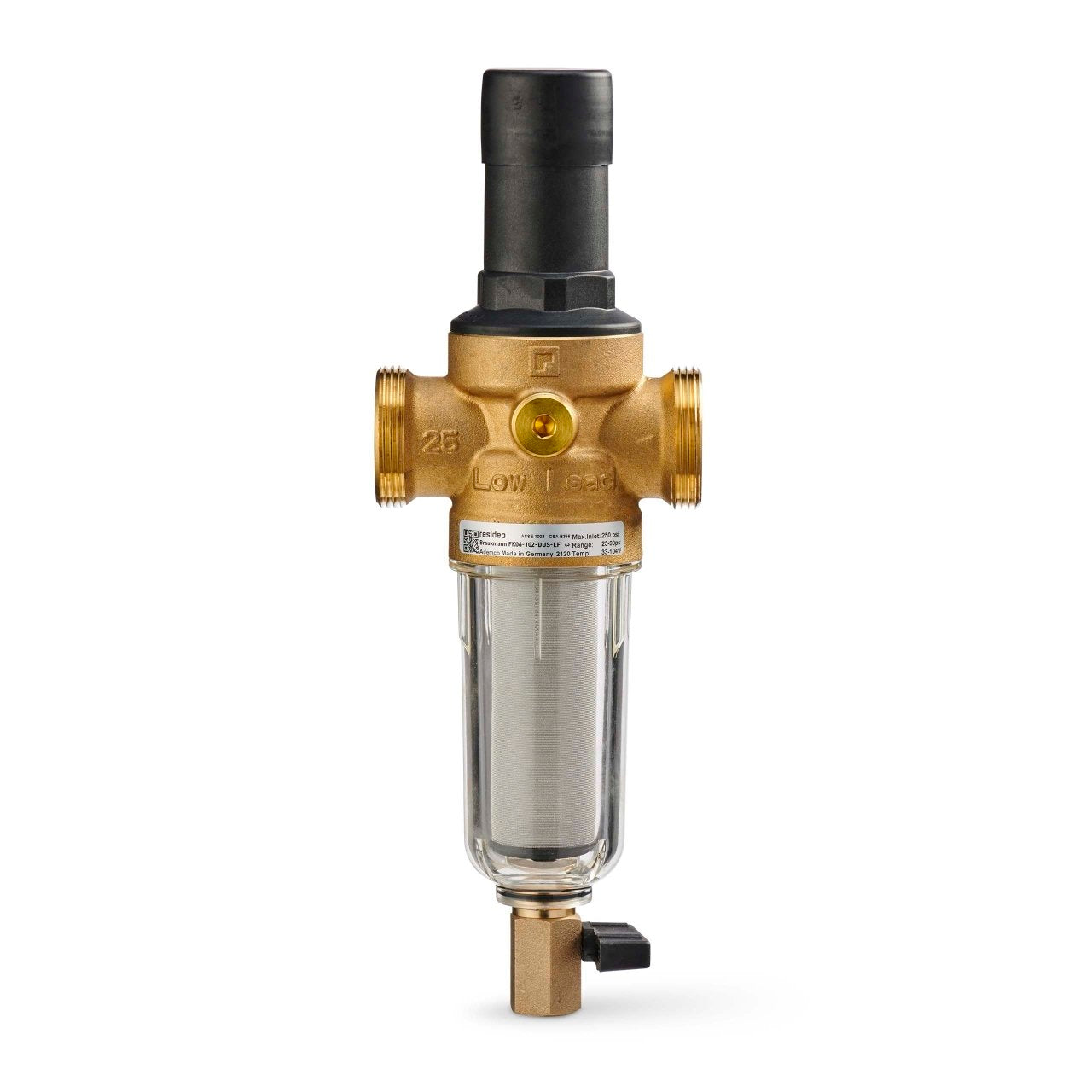

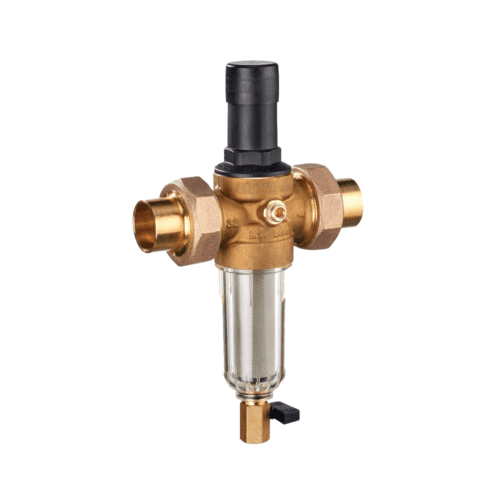

Resideo FK06-101-DUS-LF 3/4 in Sweat Connection Low Lead Pressure Regulating Valve and Filter Combination

Product Description

The RESIDEO FK06-101-DUS-LF MiniPlus FK06 rinsable filter combination ensures a continuous supply of filtered water. The fine filter prevents the ingress of foreign bodies and reduces the probability of corrosion. The accumulation of foreign particles can be easily removed by rinsing the filter. The pressure reducing valve prevents over-pressure damage and reduces water consumption.

• Prevents ingress of foreign matter and protects against over-pressurization.
• Maintains a constant outlet pressure.
• Suitable for potable water pressure regulation and irrigation applications.

Product Highlights

This combination filter and pressure regulating valve is compact in size and corresponds to DIN/DVGW requirements. It is ASSE 1003 Listed, CSA Certified, and NSF/ANSI 61 and 372 Compliant.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: FK06-101-DUS-LF

Technical Specifications

• Application: Potable Water Pressure Regulation and Irrigation
• Filter_Type: Reverse Rinsing
• Controlled_Media: Drinking Water
• Strainer_Included: Yes
• Approvals_and_Standards: ASSE 1003 Listed|CSA Certified|NSF/ANSI 61 Compliant|NSF/ANSI 372 Compliant
• Reverse_Rinsing_with_Filtered_Water: Yes
• Warranty: 1 Year
• Product Type: PRV & Sediment Filter Combo
• Point of Entry: Point of Entry
• Irrigation: Irrigation
• Type: Whole House Sediment
• Size: 3/4"
• Connection Type: Sweat Connection
• Material: Brass
• Lead Free: Yes
• Temperature Range (F): 33°F to 140°F
• Micron Rating: 50
• Max Pressure (PSI): 250
• Flow Rate (GPM): See PDF for Details
• Reduction Claim: Sediment
• ACS certified: Yes
• All materials are KTW approved: Yes
• Approved by TUEV LGA for low noise: Group 1 without limitations
• Inlet Pressure Max: 250 psi (1723.69 kPa)
• Valve Body Material: Brass
• Differential Pressure: 14.5 PSI Minimum, 99.97 kPa Minimum
• Connection Size: 3/4"
• Body Material: Brass
• Flow Rate: 25.14 gpm
• Media: Potable Water
• Nominal Size: 3/4 in
• Pressure Rating: 25 to 90 psi
• Softgoods Material: Fabric-Reinforced Diaphragm
• Temperature Rating: 33 to 140 deg F Ambient
• Dimensions: 5-13/64 in L x 9-3/4 in H
• Series: FK06
