Resideo f300e1019/u Electronic Air Cleaner 16x25 Merv 11

Product Description

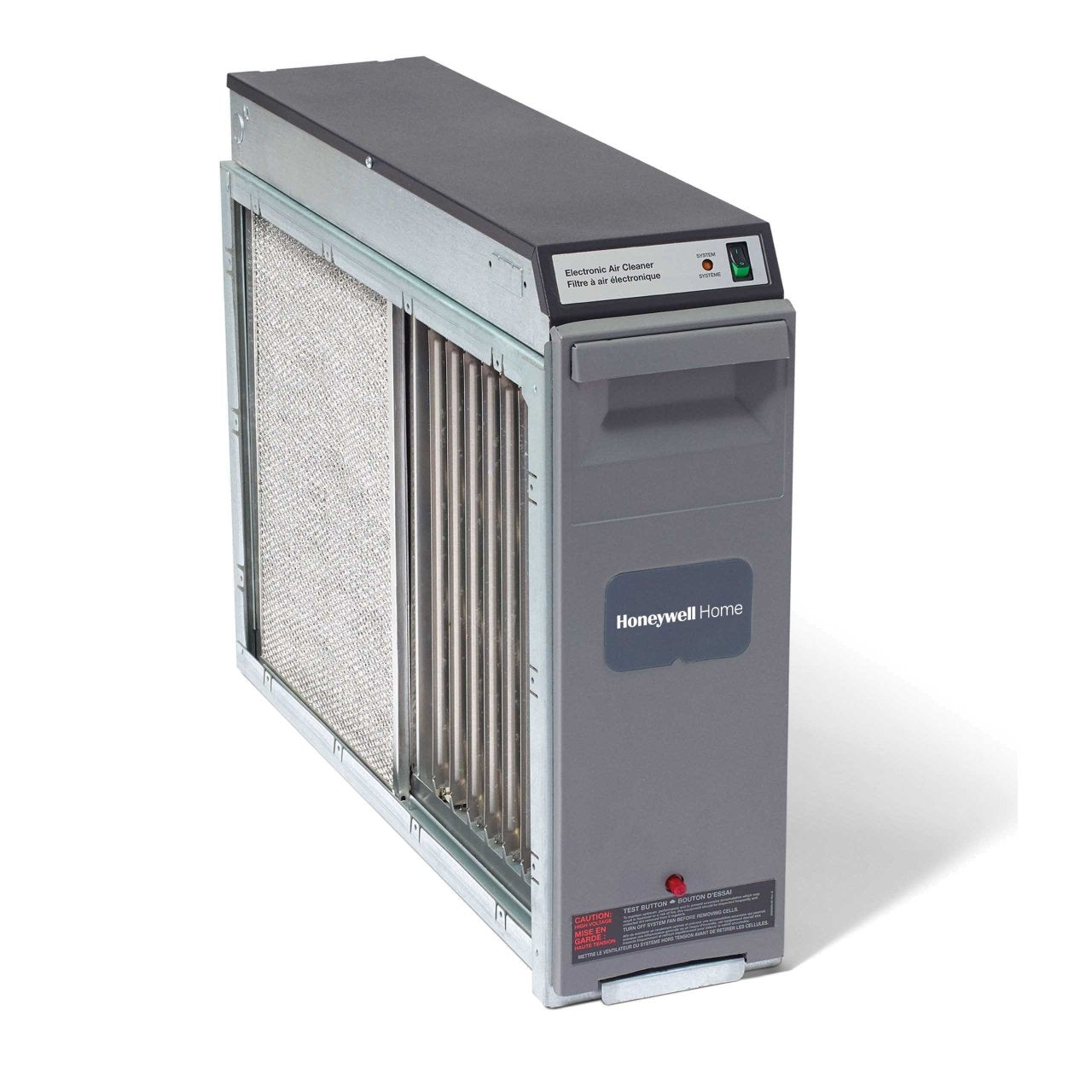

The RESIDEO f300e1019/u is a whole-system electronic air cleaner designed to capture airborne particles passing through a forced-air HVAC system. Rated MERV 11, it targets common contaminants including dust, pollen, pet dander, and mold spores. Operating at a static pressure drop of 0.26 inches water column at 500 FPM, it maintains strong airflow with minimal resistance. The unit ships complete with a cabinet, access door, solid-state power supply, two electronic cells, two metal mesh prefilters, and two media postfilters. Installed by licensed HVAC technicians, this unit is a direct fit into existing duct systems and replaces conventional throwaway filter racks.

This electronic air cleaner is suited for residential forced-air systems where improved indoor air quality is a priority. At 16 inches by 25 inches, it fits standard duct openings common in residential gas and heat pump systems. The solid-state power supply and reusable electronic cells reduce the frequency of consumable replacements compared to standard media filters. The gray cabinet construction integrates cleanly into typical air handler or furnace return-air configurations.

Key Features

• MERV 11 filtration rating captures fine airborne particulates including dust, pollen, and dander
• Static pressure drop of 0.26 inches W.C. at 500 FPM for low system resistance
• Includes two electronic cells and two metal mesh prefilters for multi-stage filtration
• Solid-state power supply with no mechanical components to wear out
• UL Listed under Report E30954 for verified electrical safety
• Five-year manufacturer warranty

Compatibility

Designed as an OEM-style replacement and new-installation electronic air cleaner for residential forced-air HVAC systems accepting a 16-inch by 25-inch filter cabinet.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and at the breaker before beginning any work. The unit requires a low-voltage or line-voltage connection to the solid-state power supply depending on the system configuration — consult the installation manual for wiring details. Follow NEC requirements for any electrical connections and confirm the return-air duct dimensions match the cabinet footprint before mounting.

Technical Specifications

• MERV Rating: MERV 11
• Static Pressure Drop: 0.26 inches W.C. at 500 FPM
• Air Cleaner Type: Electronic Air Cleaner
• Filter Type: Disposable media postfilters
• Product Height: 16 inches
• Product Length: 25 inches
• Product Width: 6.75 inches
• Color: Gray
• Approvals and Standards: UL Listed, Report E30954
• Warranty: 5 Years
• Includes: Cabinet, access door, solid-state power supply, 2 electronic cells, 2 metal mesh prefilters, 2 media postfilters

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: f300e1019/u
