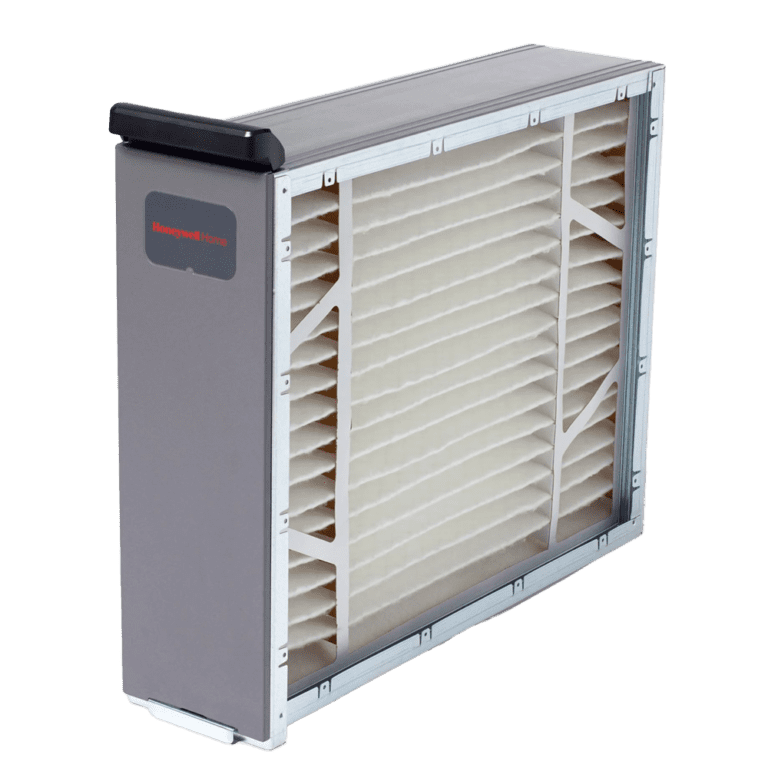

Resideo f100f1620 Merv 11 Whole House Media Air Cleaner

Product Description

The RESIDEO f100f1620 is a whole-house media air cleaner designed for installation in the return air duct of residential forced-air HVAC systems. It ships as a complete kit including the cabinet, access door, and a MERV 11 media filter, so no additional components are required for a standard installation. The MERV 11 filter captures particles as small as 0.3 microns and delivers 32% E1, 72% E2, and 96% E3 efficiency per ASHRAE 52.2-1999, reducing dust, pollen, pet dander, and other airborne contaminants. No electrical connections are required. The zinc-coated, roll-formed steel cabinet resists corrosion and is rated to support the weight of a residential furnace and evaporator coil.

The f100f1620 is compatible with all gas, oil, and electric forced-air furnaces and with compressor-based cooling systems rated up to 5 tons. It fits a nominal 16 x 20 inch duct opening and mounts in any position in the return air duct, making it adaptable to a wide range of residential duct configurations. It is recommended as a baseline indoor air quality solution for any home served by a central forced-air system. The cabinet is also designed to accept higher-performing media or electronic air cleaner upgrades in the future without replacing the cabinet.

Key Features

• MERV 11 media filter captures particles as small as 0.3 microns (32% E1, 72% E2, 96% E3 per ASHRAE 52.2-1999)
• No electrical connections required — passive media filtration only
• Complete kit: cabinet, access door, and MERV 11 filter included
• Zinc-coated, roll-formed steel cabinet for corrosion resistance and structural load support
• Mounts in any position in the return air duct
• Upgradeable to higher-efficiency media or electronic air cleaners without cabinet replacement
• UL Listed (UL900, Class 2)

Compatibility

Compatible with all gas, oil, and electric forced-air furnaces and compressor cooling systems up to 5 tons. Designed for nominal 16 x 20 inch return air duct installations.

Installation Notes

Installation is performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and thermostat before cutting into the return air duct or making any duct modifications. The cabinet mounts in any orientation in the return air duct and requires no electrical wiring. Follow local mechanical codes and the manufacturer installation instructions for duct sealing and filter access clearances.
