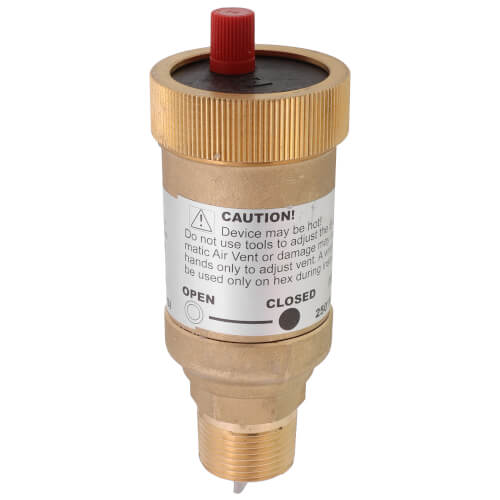

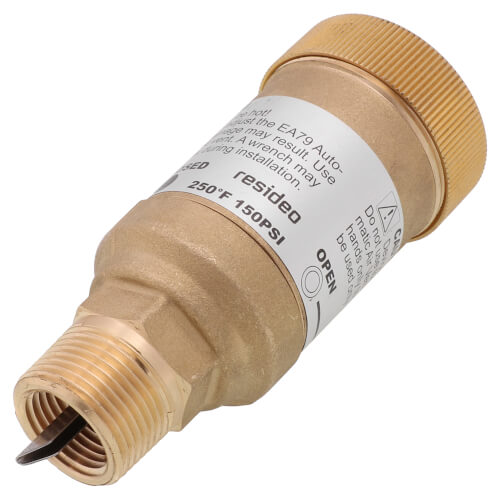

Resideo EA79A1004 Industrial Automatic Air Vent 3/4 Inch Replacement

Product Description

The Resideo EA79A1004 Industrial Automatic Air Vent is designed for purging air from high-pressure mains and equipment in hot or cold closed water systems. This vent includes a built-in shutoff valve allowing for servicing without system shutdown and a vacuum breaker for added safety. The internal components are made from corrosion-resistant and chemical-resistant materials suitable for use with water systems containing propylene glycol, mineral oils, or petroleum-based oils.

• Built-in shutoff valve for convenient servicing
• Internal corrosion-resistant and chemical-resistant parts
• Compatible with various water system types

Product Highlights

Product Information

Standard Information

• Application: Hydronics
• Connection Type: 3/4 in. male NPT, 1/2 in. female NPT

Technical Specifications

• Maximum Safe Operating Pressure: 150 psi
• Maximum Operating Temperature: 250 F
• Dimensions: 5 in. long x 1 7/8 in. diameter
• Corrosion Resistant: Yes
• Material: Brass shell
• Weight: 1.05 lbs
• Shipping Dimensions: 6.55 in. x 2.35 in. x 2.05 in.
• MPN: EA79A1004
