Product Description

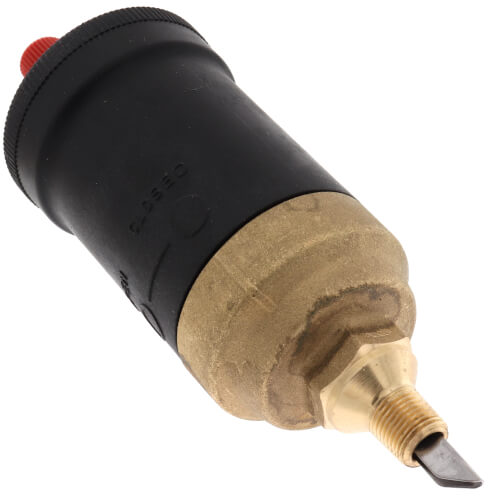

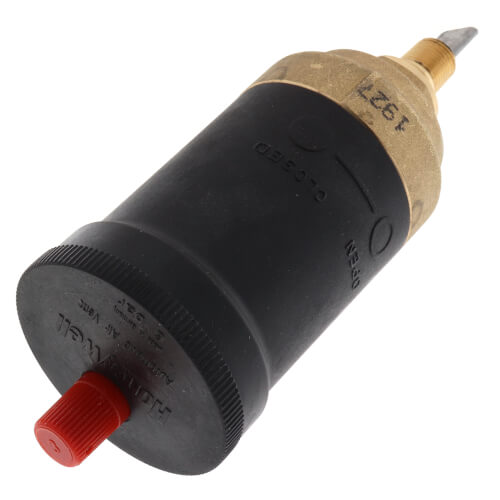

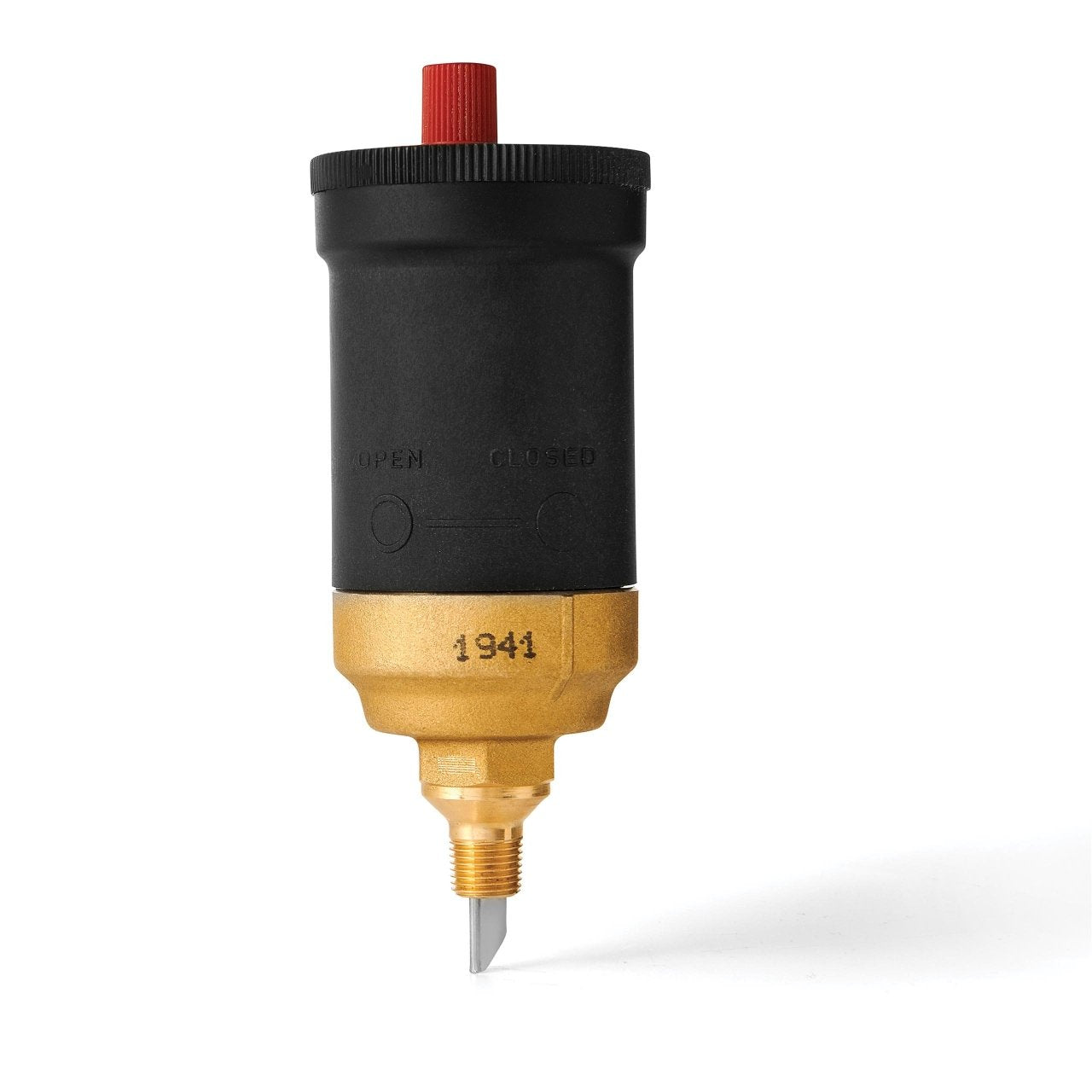

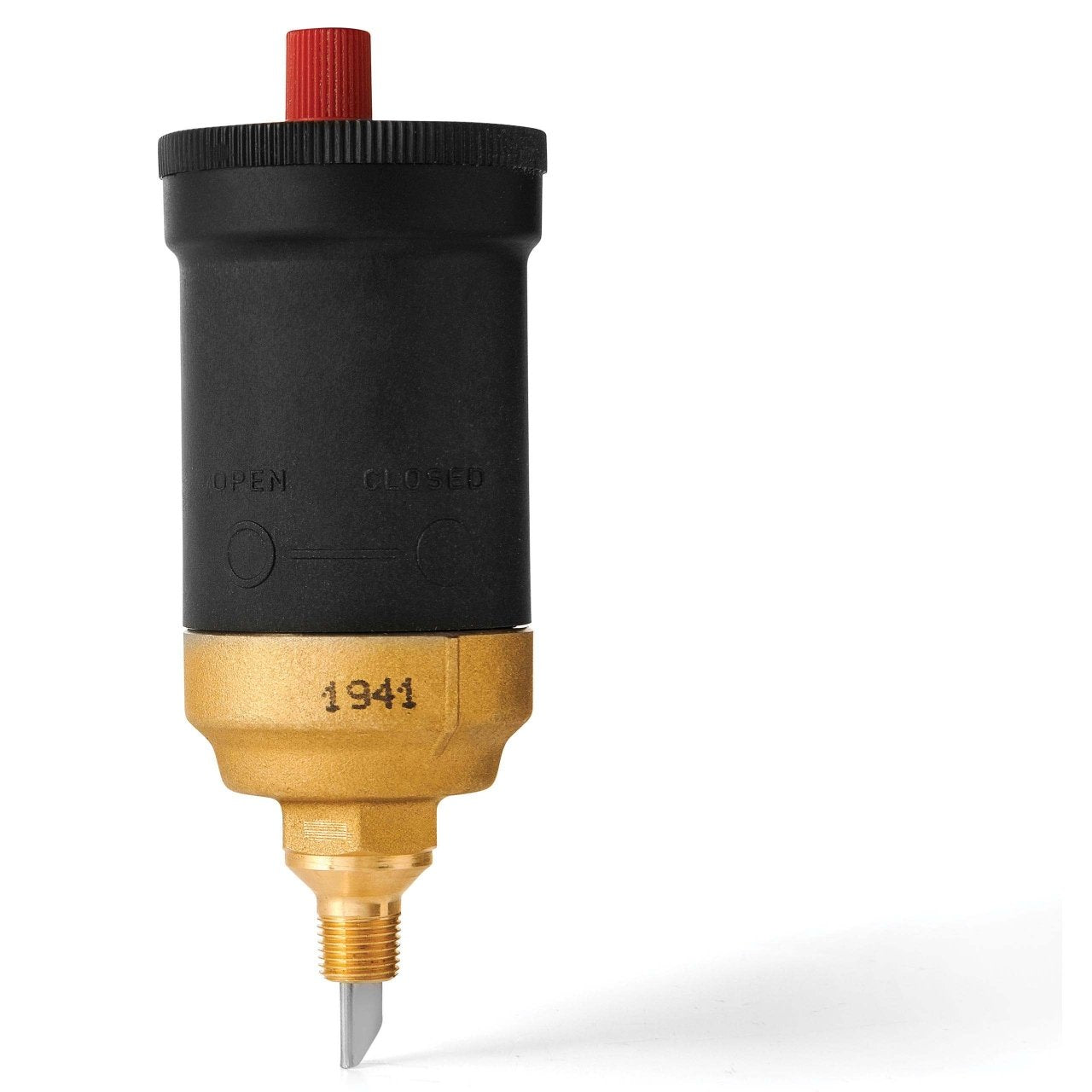

The RESIDEO EA122A1002 automatic air vent offers protection to keep heating and non-heating systems operating efficiently. It purges air from high pressure mains and equipment in hot or cold closed water systems. Features a removable float/valve assembly for easy servicing. Operates quietly and efficiently.
- Includes removable float/valve assembly for easy servicing
- Integrated shut-off facility
- Internal parts made of corrosion-resistant and chemical-resistant materials
Product Highlights
This automatic air vent is designed for hydronic heating and cooling applications. It is not suitable for use in steam systems. The vent has a 1/8" connection and is oil resistant.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: EA122A1002
Technical Specifications
-
Application: Air Ventilation
-
For_Use_With: P122B1002 Cover Assembly|Q122A1001 Safe Waste Connector|204992 Vent Cap
-
Compatible_With: Not suitable for mineral oil or liquids with mineral-oilbased additives
-
Controlled_Media: Water-Glycol Mixture according to VDI 2035
-
Bottom_Connection: Yes
-
Warranty: 1 Year
-
Size: 1/8"
-
Type: Male NPT
-
Material (Body): Brass
-
Maximum Operating Temperature: 212°F (100°C)
-
Maximum Safe Operating Pressure: 90 psi
-
System Type: Hydronic (Water)
-
Max Pressure: 90 psi
-
Temperature Range (F): 140°F - 212°F
-
Min Temp (F): 140°F
-
Max Temp (F): 212°F
-
Body Pattern: Straight
-
Mount: Straight
-
Adjustability: Non-Adjustable
-
Thread Type: Male
-
Thread Size: 1/8"
-
Product Category: Boiler Accessories
-
Product Line: EA122
-
Connection Type: NPT
-
Connection Size: 1/8 Inch
-
Product Diameter: 1 7/8 Inches
-
Product Height: 5 1/4 Inches
