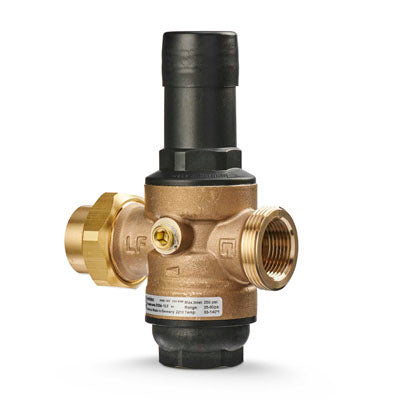

Resideo DS06-105-SUT-LF/U Pressure Regulator 2 in Lead Free

Product Description

The RESIDEO DS06-105-SUT-LF/U is a lead-free pressure regulator designed to reduce and stabilize incoming water pressure in commercial and residential plumbing systems. Operating as a direct-acting, adjustable pressure-reducing valve, this regulator maintains consistent downstream pressure to protect fixtures, appliances, and piping from pressure spikes. The 2-inch connection size makes it suited for larger-diameter service lines where precise pressure control is critical. Lead-free construction meets current potable water compliance requirements. Licensed plumbers and mechanical contractors are the primary installers of this type of device.

This pressure regulator is intended for use on potable water supply systems where incoming line pressure must be reduced to a safe, usable range. The 2-inch port size is common in light commercial buildings, multi-unit residential properties, and larger residential service entries. It is typically installed on the main service line downstream of the water meter or backflow preventer, before branch distribution piping.

Key Features

• Lead-free construction meets NSF/ANSI potable water requirements for compliant installations
• 2-inch connection size suitable for main service line and larger distribution applications
• Direct-acting pressure reducing design maintains stable downstream pressure
• Adjustable set point allows field calibration to system requirements
• Compact body design for installation in tight mechanical spaces

Compatibility

Designed as an OEM-style replacement or new-installation pressure regulator for 2-inch potable water supply systems requiring lead-free pressure reduction components.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve all line pressure before removing or installing any pressure regulator. Install with flow direction arrows on the valve body aligned to the direction of water flow. Do not exceed the rated inlet pressure marked on the device body.

Technical Specifications

• Connection Size: 2 inches
• Lead Free: Yes

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-105-SUT-LF/U
