Resideo DS06-105-DUS-LF/U 2 in DialSet Female NPT Double Union, Sweat-PRV Replacement MPN

Product Description

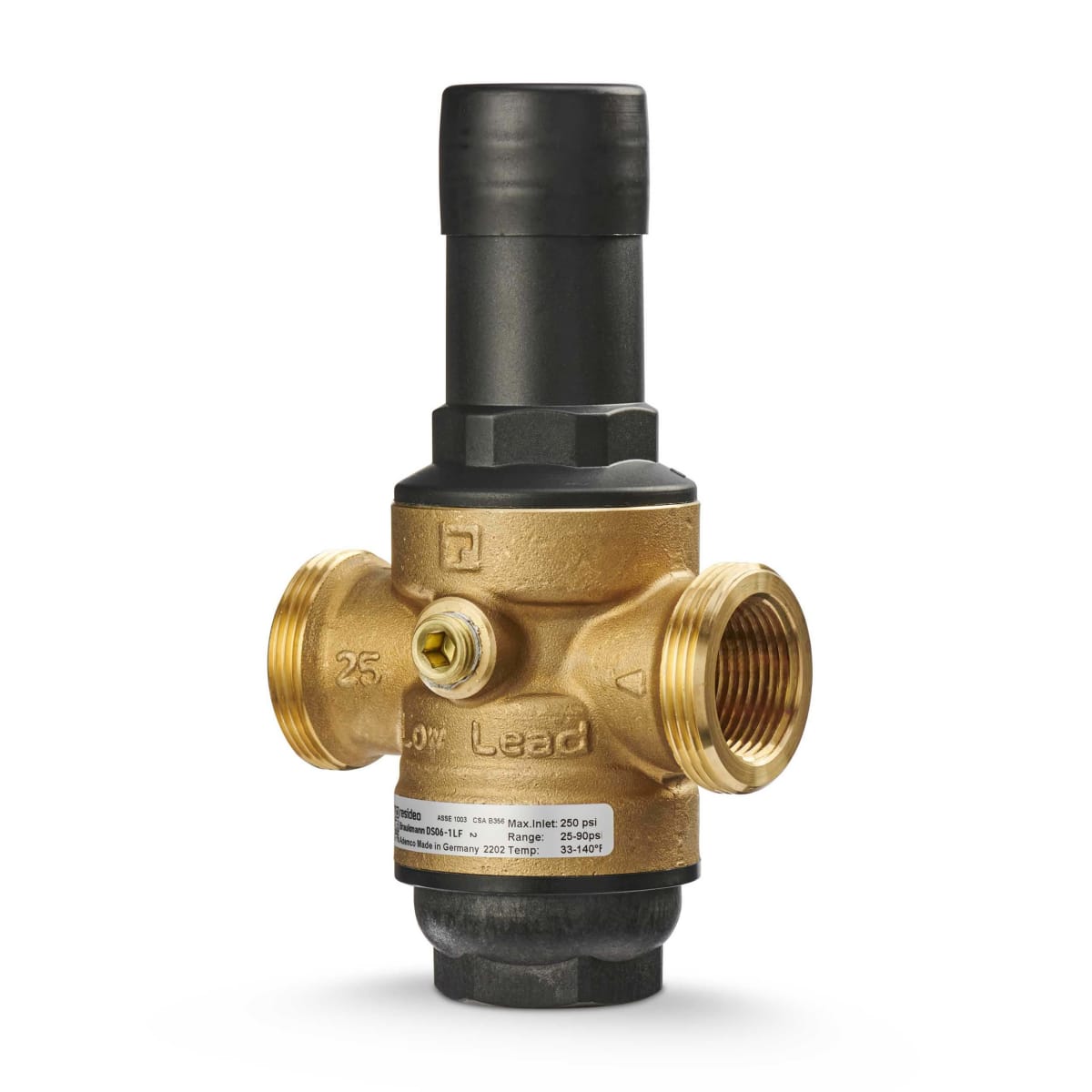

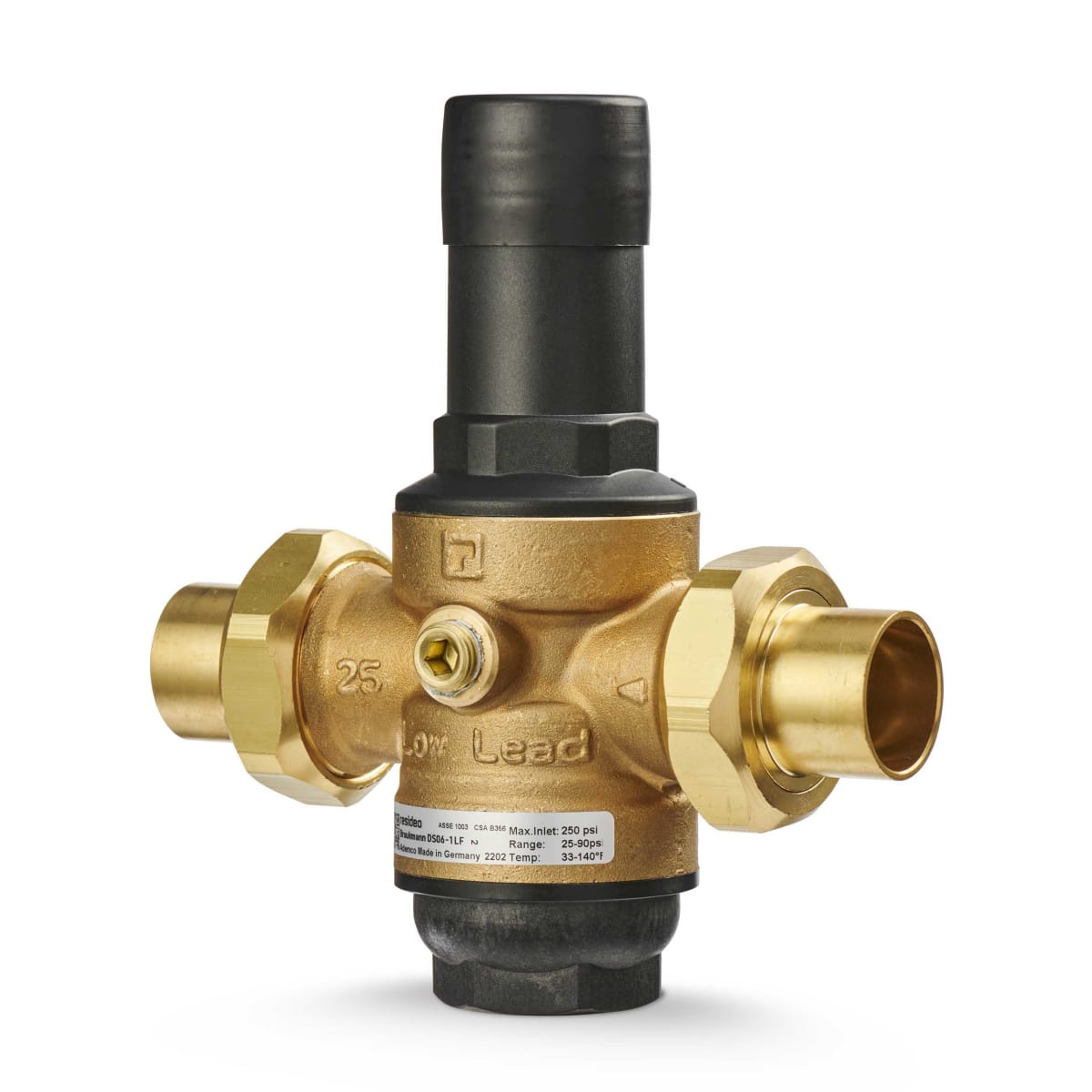

The Resideo DS06-105-DUS-LF/U is a DialSet Pressure Regulating Valve designed for potable water and irrigation applications. This valve ensures a steady outlet pressure. It integrates a downstream adjustment dial that simplifies pressure settings without needing a gauge. The valve features a balanced cartridge design that caters to thermal expansion.

• Adjustable dial calibrated to ± 4 psi
• Configured for sweat connections
• Compliant with lead-free plumbing codes

Product Highlights

This pressure regulating valve is suitable for managing water pressure in various systems, including irrigation and potable water lines.

Product Information

Standard Information

• Brand: Resideo
• Part Number: DS06-105-DUS-LF/U

Technical Specifications

• Size: 2 inches
• Connection Type: Sweat
• Gauge Tap Size: 1/4 inch
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Pressure Reducing Valve Housing Material: Brass
• Dial Calibration: ± 4 psi
• Compatible With: Potable Water, Irrigation
