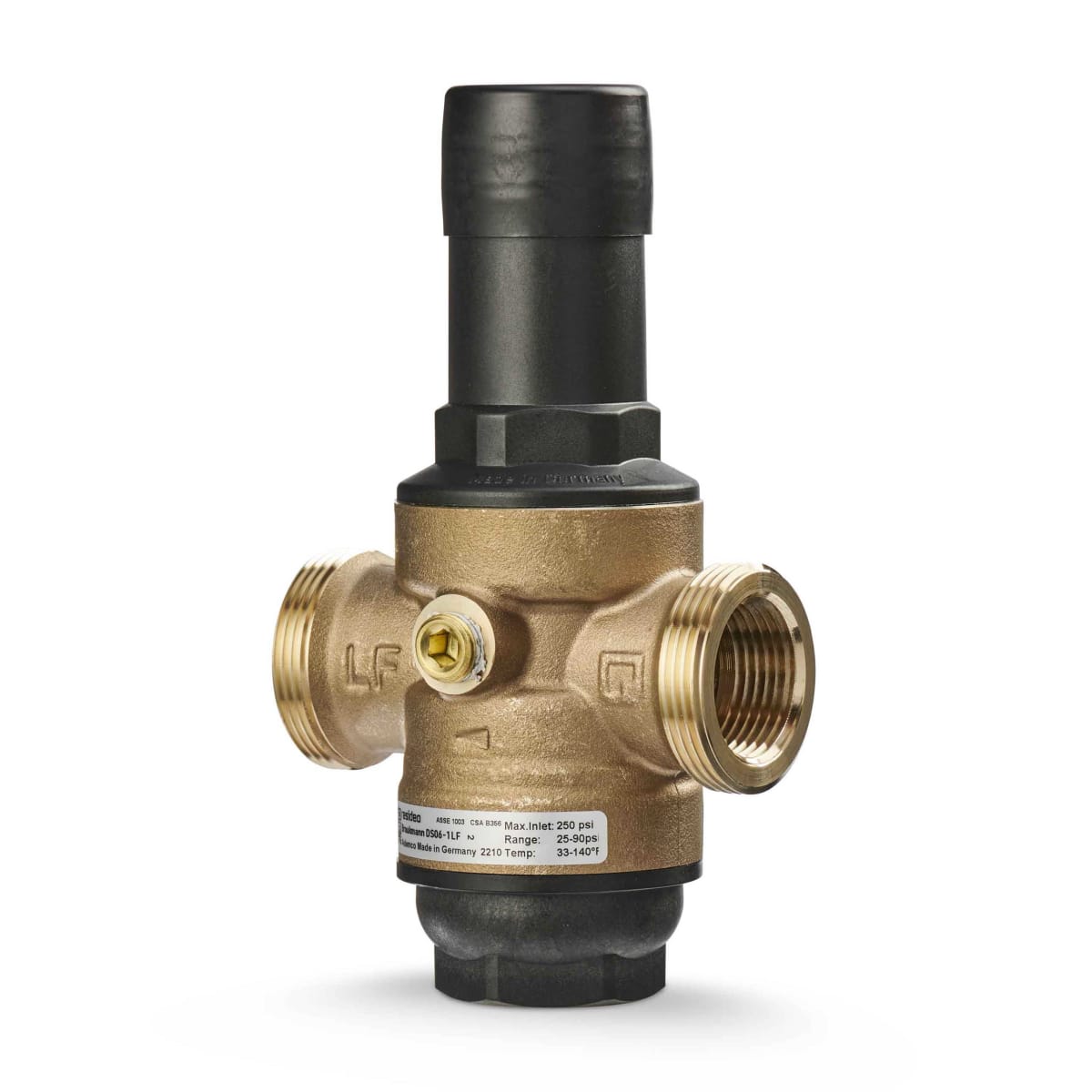

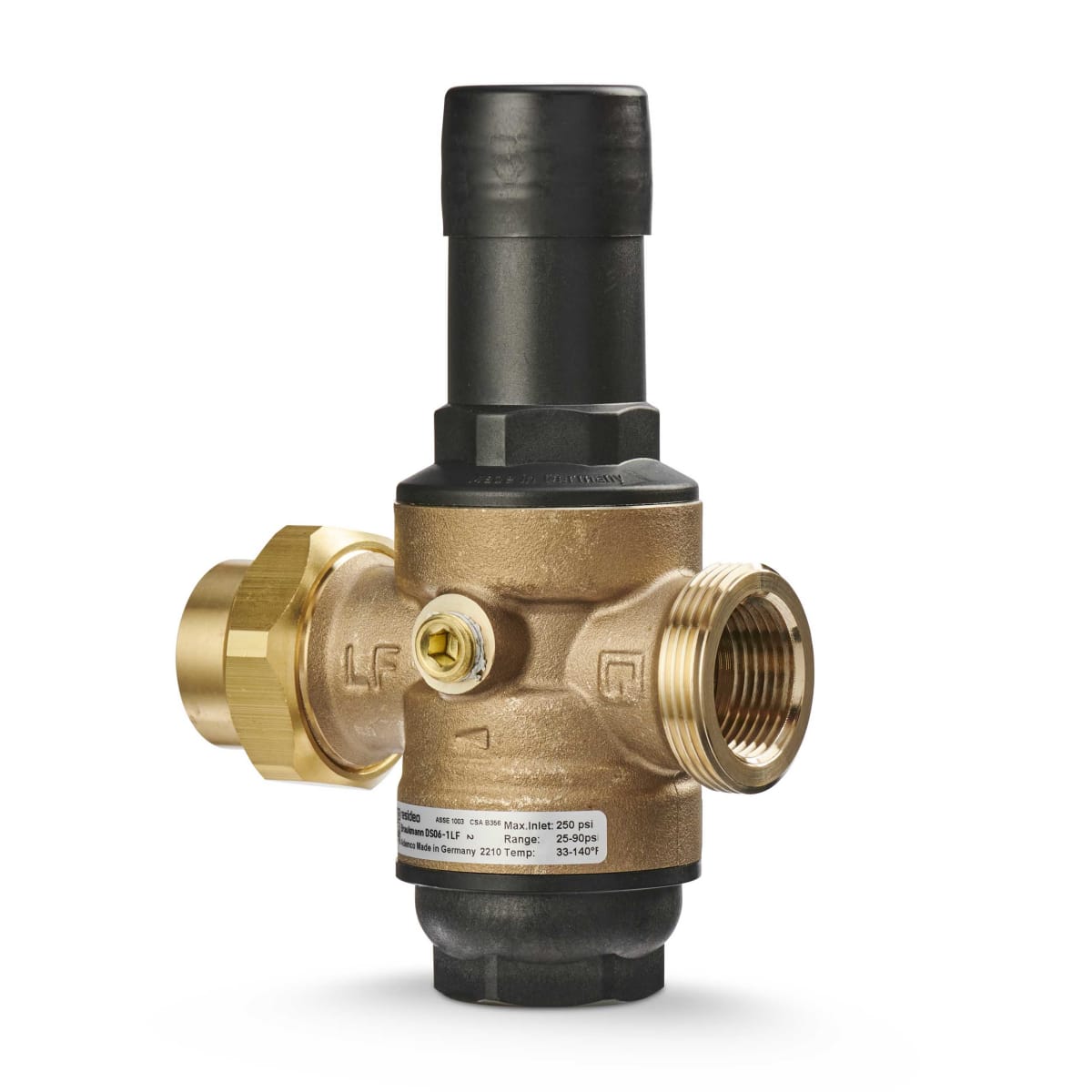

Resideo DS06-104-SUT-LF/U 1-1/2 in DialSet Female NPT Single Union, Internally-Threaded PRV

Product Description

The Resideo DS06-104-SUT-LF/U is a pressure regulating valve designed for maintaining consistent outlet pressure in potable water and irrigation systems. It features a downstream pressure adjustment dial for easy setting without the need for a pressure gauge, streamlining the adjustment process.

• Supports potable water applications
• Adjustable downstream pressure with dial calibration of ± 4 psi
• Balanced cartridge design allows for thermal expansion

Product Highlights

This valve simplifies water pressure regulation for various applications.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-DS06-104-SUT-LF/U

Technical Specifications

• Size: 1-1/2 inches
• Connection Type: MIP
• Controlled Media: Water
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Approvals: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed
• Pressure Reducing Valve Housing Material: Brass
• Number of Inlets: 1
• Strainer Included: No
