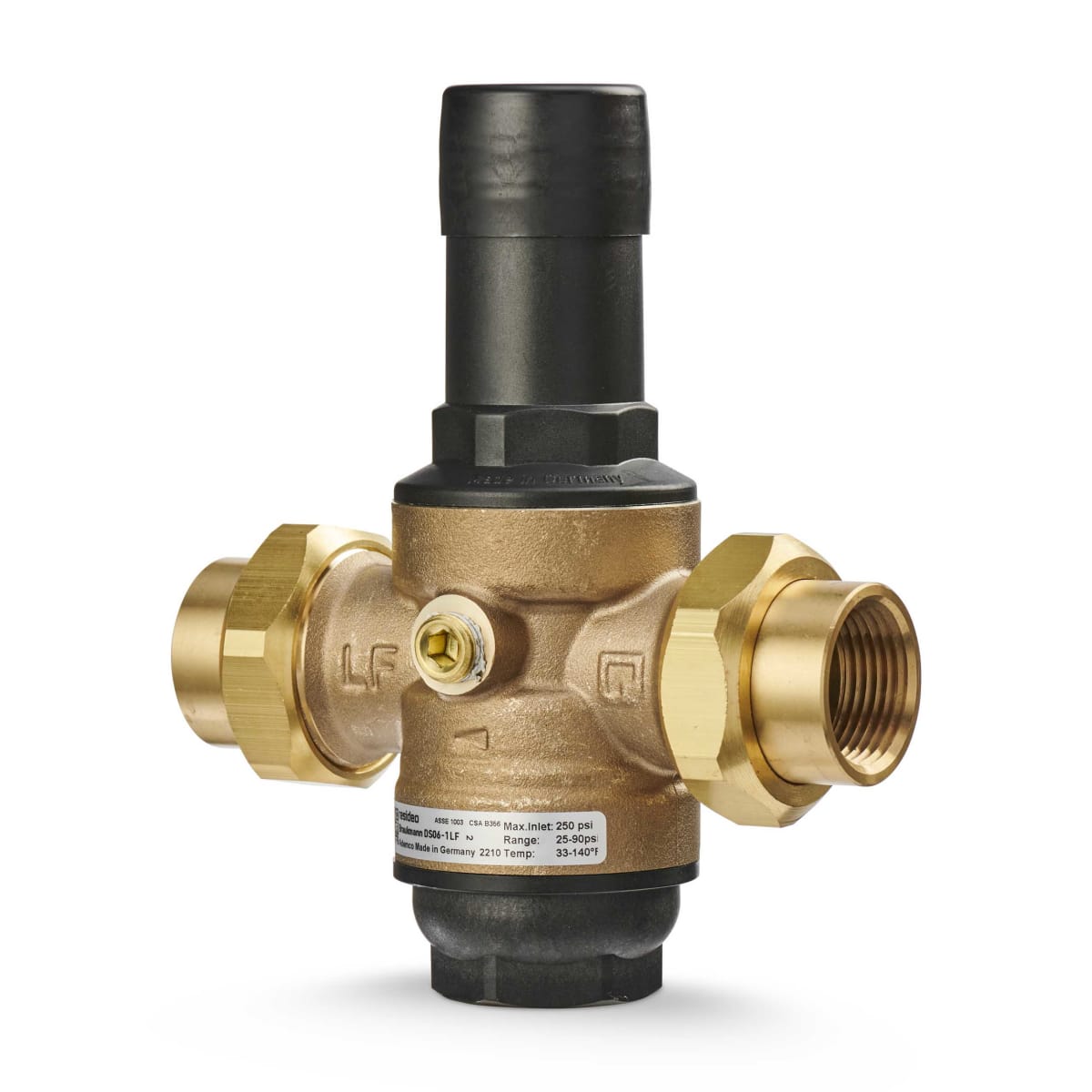

Resideo DS06-104-DUT-LF/U 1-1/2 in DialSet Female NPT Double Union

Product Description

The Resideo DS06-104-DUT-LF/U is a pressure regulating valve designed for potable water and irrigation applications. It provides a consistent outlet pressure without the need for a separate pressure gauge. The valve features an adjustable dial for easy pressure settings.

• Suitable for potable water and irrigation systems
• Adjustable dial for pressure settings eliminates the need for a separate gauge
• Balanced cartridge design supports thermal expansion

Product Highlights

This pressure regulating valve ensures stable water pressure for various applications, promoting safe and efficient water management.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-104-DUT-LF/U

Technical Specifications

• Size: 1-1/2 inches
• Type: PRV
• Application: Potable Water Pressure Regulation
• Gauge Tap Size: 1/4 inch
• Connection Type: MIP
• Dial Calibration: ± 4 psi
• Pressure Reducing Valve Housing Material: Brass
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance
