RESIDEO BRAUKMANN DS06-104-DUT-LF PRESSURE REDUCING VALVES
RESIDEO BRAUKMANN Resideo DS06-104-DUT-LF 1.5 inch PRV 25-90# Double Union NPT Pressure Reducing Valve
RESIDEO BRAUKMANN Resideo DS06-104-DUT-LF 1.5 inch PRV 25-90# Double Union NPT Pressure Reducing Valve
RESIDEO BRAUKMANN DS06-104-DUT-LF PRESSURE REDUCING VALVES

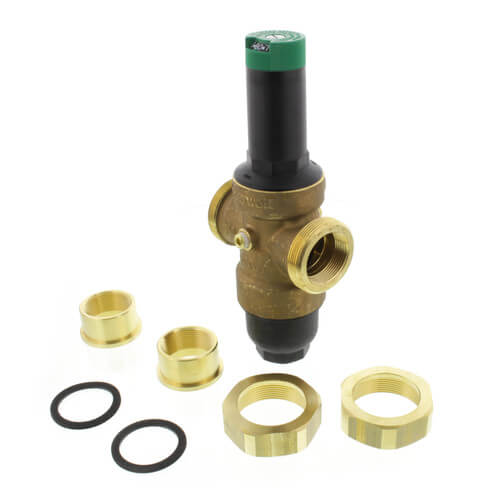

Resideo DS06-104-DUT-LF 1.5 inch PRV 25-90# Double Union NPT Pressure Reducing Valve
Resideo DS06-104-DUT-LF 1.5 inch PRV 25-90# Double Union NPT Pressure Reducing Valve

Resideo DS06-104-DUT-LF 1.5 inch PRV 25-90# Double Union NPT Pressure Reducing Valve

Brand: RESIDEO BRAUKMANN
SKU: DS06-104-DUT-LF
Ships in 4 - 5 Weeks
Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
$411.22
$411.22
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Resideo DS06-104-DUT-LF Pressure Reducing Valve, expertly designed for precise water pressure control, is ideal for industrial settings. This robust brass-bodied valve with a stainless steel spring offers reliable performance, ensuring constant outlet pressure irrespective of varying inlet pressures.

  • Adjustable output pressure from 25 to 90 psi.
  • Double-diaphragm construction enhances stability and precision.
  • 1.5-inch union NPT connection streamlines installation.

Product Highlights

Equipped with a non-corroding unitized cartridge, the valve can be installed in various configurations such as single or double-union, suiting diverse industrial needs. Its built in strainer and gauge taps streamline maintenance and monitoring.

Technical Specifications
SKU
DS06-104-DUT-LF
Inlet Pressure Range
25-90 psi
Outlet Pressure Range
25-90 psi adjustable
Connection
1.5 inch Union NPT
Body Material
Brass
Spring Material
Stainless steel
Max Inlet Pressure
250 psi
Operating Temperature
Up to 140°F
