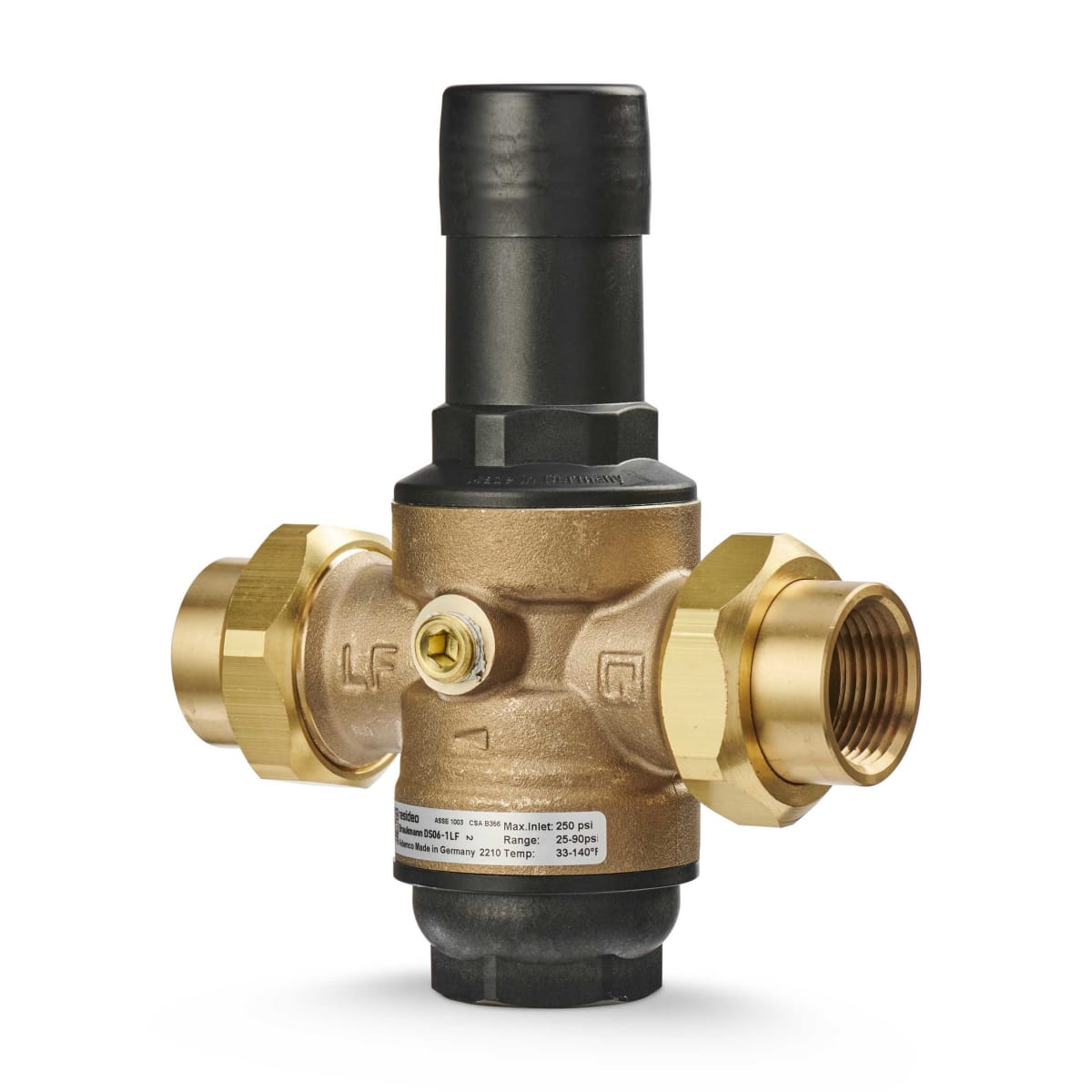

Resideo DS06-103-DUT-LF/U 1-1/4 in DialSet Female NPT Double Union, Internally-Threaded PRV

Product Description

The Resideo DS06-103-DUT-LF/U DialSet Pressure Regulating Valve is designed to manage water pressure in various applications including potable water and irrigation. This valve allows for consistent outlet pressure and features an easy-to-use downstream adjustment dial that eliminates the requirement for an external pressure gauge. The balanced cartridge design accommodates thermal expansion and is compatible with expansion tanks and safety valves.

• Simple downstream pressure adjustment without gauge
• Dial calibration at +/- 4 psi
• Balanced design suitable for thermal expansion

Product Highlights

Offers a straightforward solution for regulating water pressure in plumbing installations.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-DS06-103-DUT-LF/U

Technical Specifications

• Size: 1-1/4 inches
• Type: Pressure Reducing Valve
• Dial Calibration: +/- 4 psi
• Connection Type: Male Iron Pipe (MIP)
• Compatible With: Potable Water, Irrigation
• Pressure Reducing Valve Housing Material: Brass
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, UPC Listed
