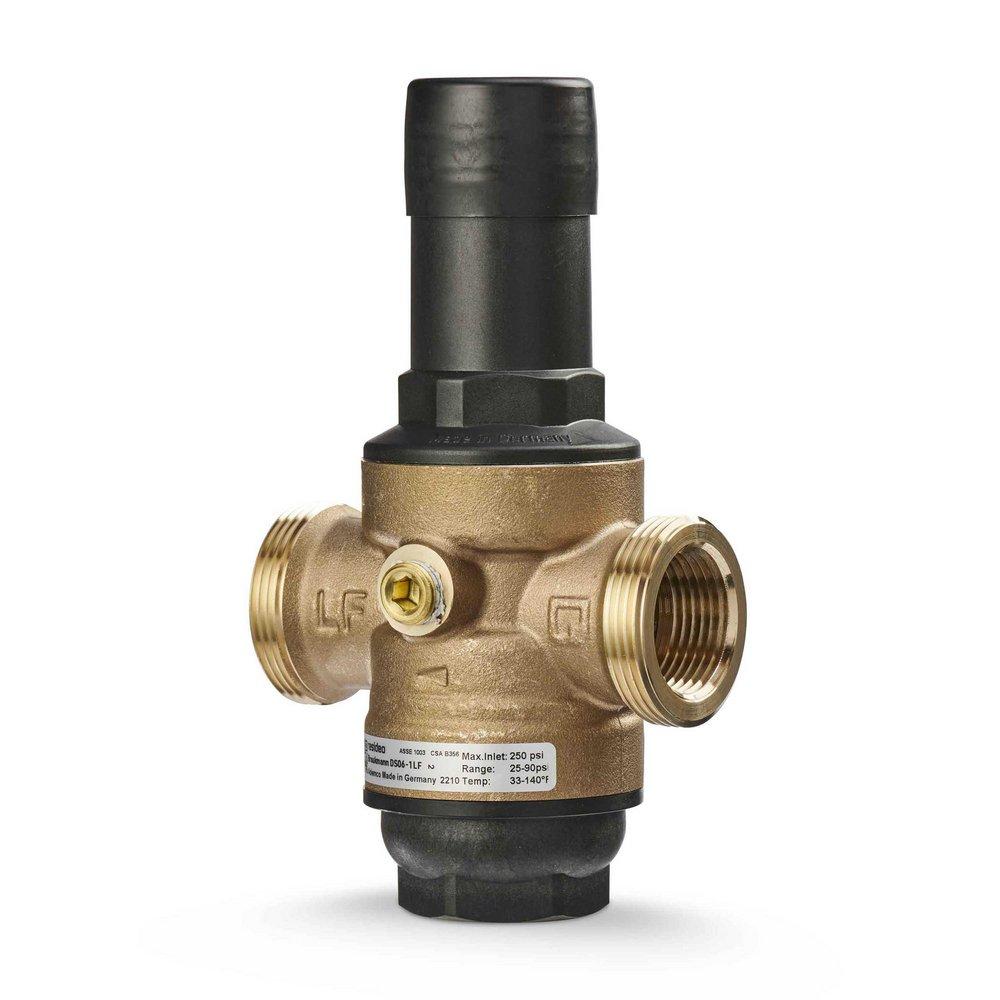

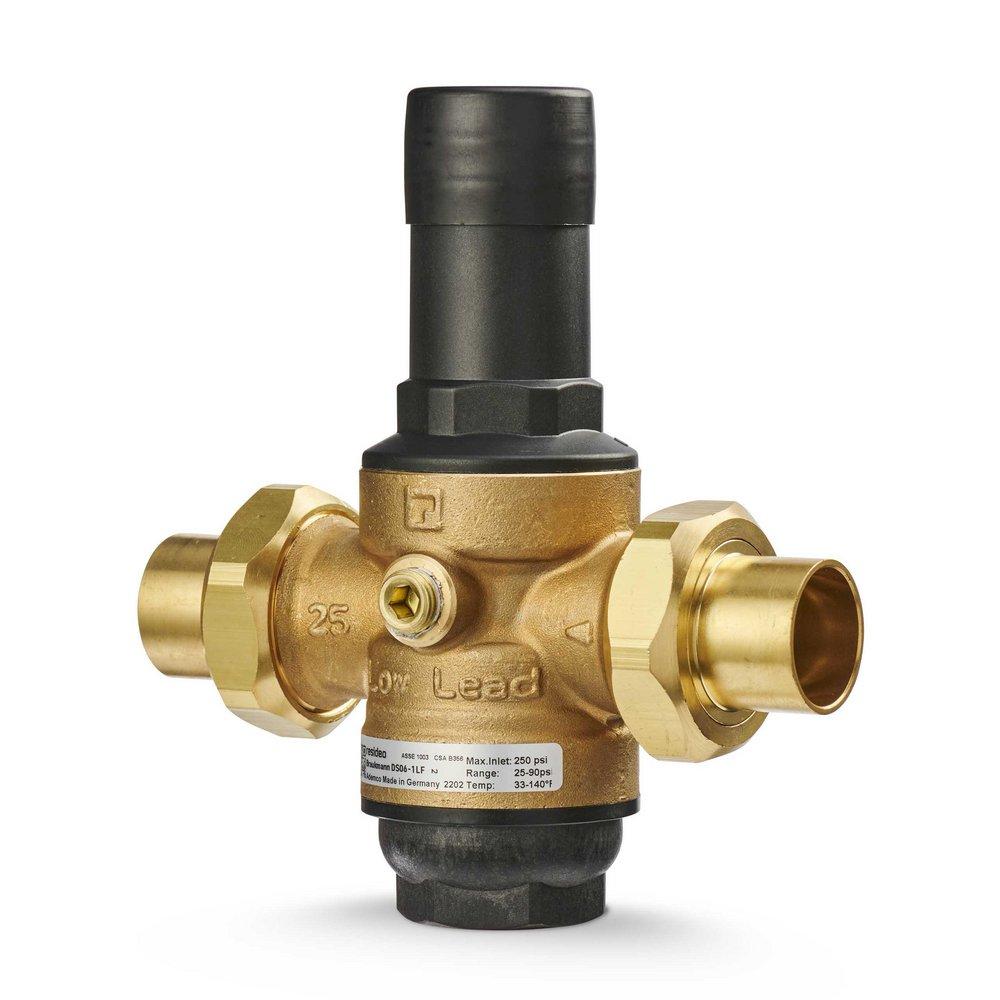

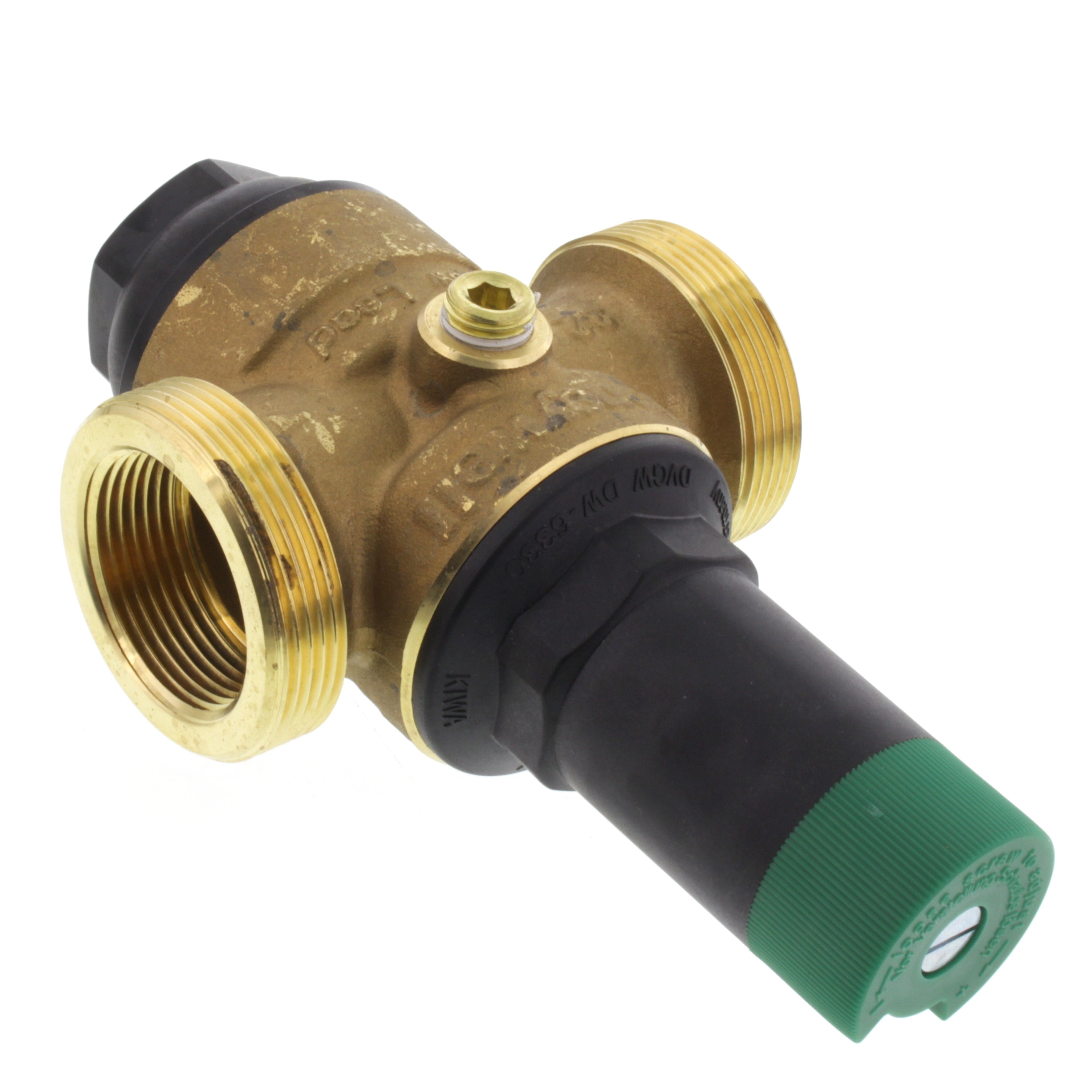

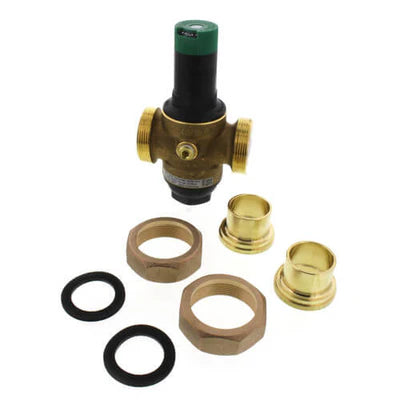

Resideo DS06-103-DUS-LF Pressure Reducing Valve 1-1/4 Inch Bronze Union Sweat

Product Description

The Resideo DS06-103-DUS-LF is a pressure reducing valve designed to maintain steady pressure in complex plumbing systems. It is crafted from durable bronze and features a union sweat connection ideal for both commercial and residential settings.

• Adjustable pressure range from 25 to 90 psi, accommodating various applications.
• Built-in strainer and dual NPT taps for easy maintenance and pressure validation.
• Compliance with ASSE 1003, IAPMO, CSA, and Low Lead standards ensures reliability and safety.

Product Highlights

Designed for easy installation, this valve can be set up in various configurations thanks to its dual threading. It operates efficiently within a temperature range up to 140 degrees Fahrenheit and a maximum inlet pressure of 250 psi.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-103-DUS-LF

Technical Specifications

• Material: Bronze
• Connection Type: Union Sweat
• Outlet Pressure Adjustment: 25-90 PSI
• Max Inlet Pressure: 250 PSI
• Operating Temperature Range: Up to 140 degrees Fahrenheit
• Compliance: ASSE 1003, IAPMO, CSA, Low Lead Compliant
