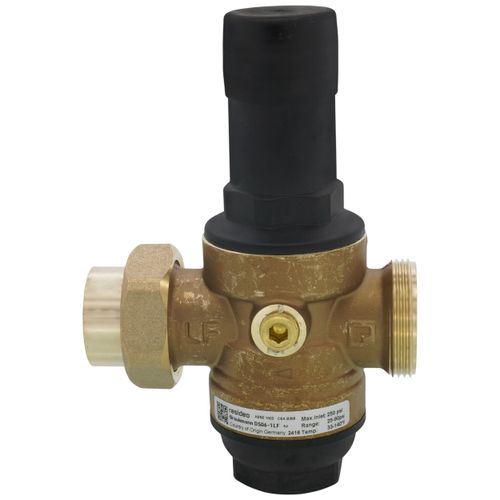

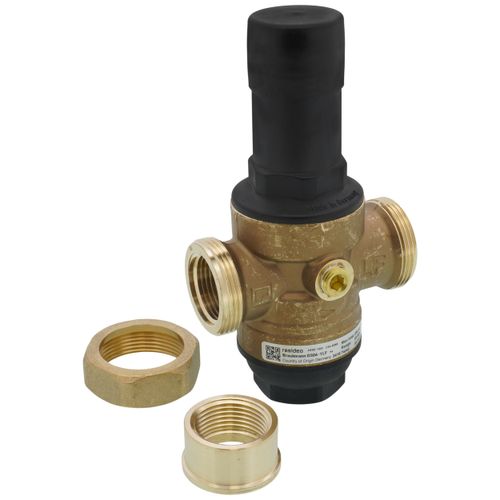

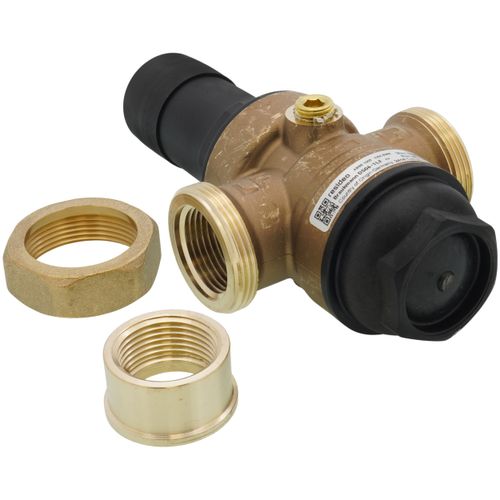

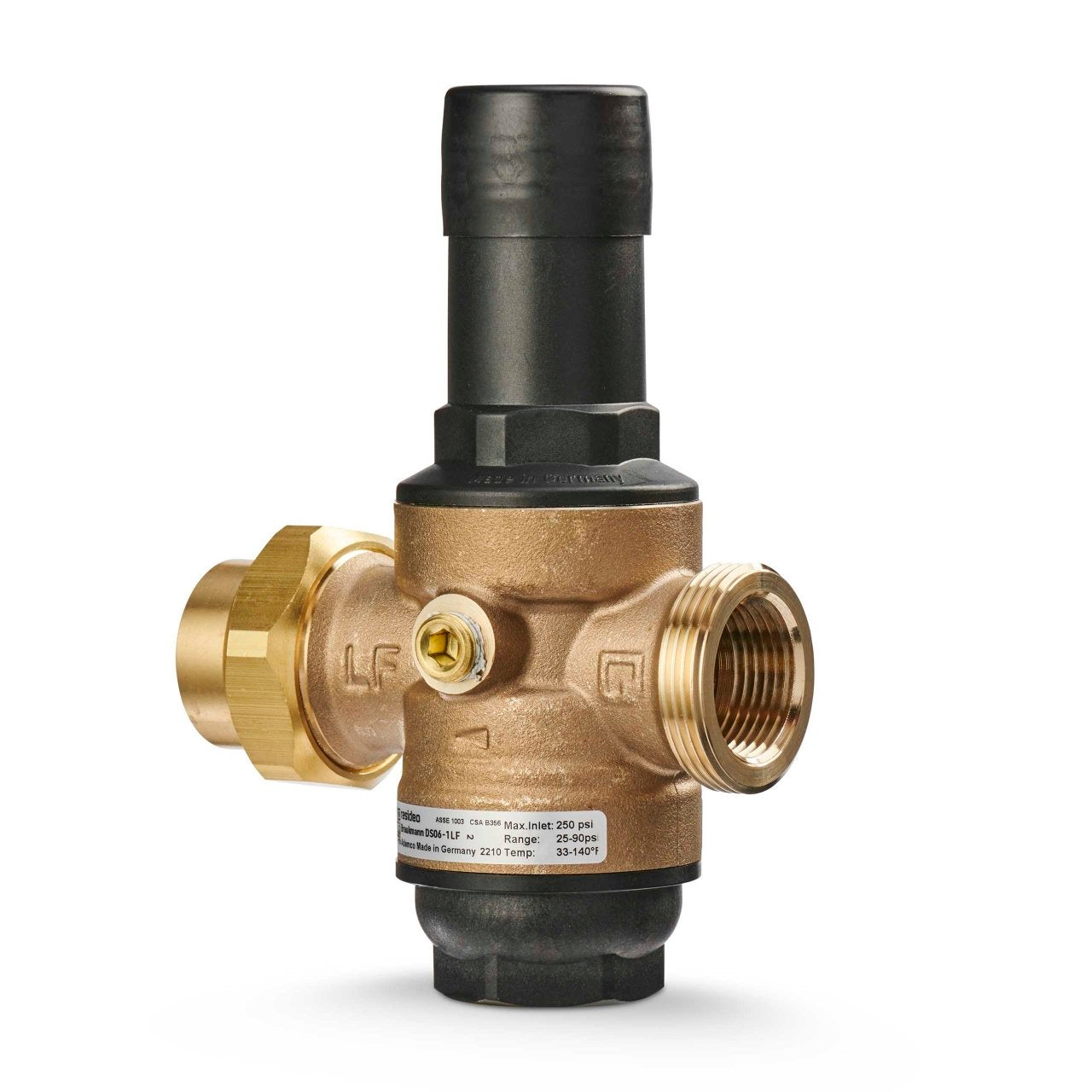

Resideo DS06-102-SUT-LF DialSet 1 in. Bronze FNPT x Union NPT Pressure Regulating Valve

Product Description

The RESIDEO DS06-102-SUT-LF DialSet Pressure Regulating Valve is designed to maintain a constant outlet pressure across varying inlet supply pressures. Suitable for potable water and irrigation applications, this 1-inch bronze valve features a downstream pressure adjustment dial, eliminating the need for a pressure gauge during static pressure setting. It ensures reliable pressure regulation for various systems.

• Features a built-in Dial-Set for static pressure adjustment without a separate gauge.
• Contains a noncorroding unitized cartridge with all working parts, designed for easy replacement.
• Offers an outlet adjustment range of 25 PSI to 90 PSI, suitable for household, commercial, industrial, and turf-and-irrigation uses.

Product Highlights

Maintains constant outlet pressure, features a built-in Dial-Set for easy adjustment, and is suitable for potable water and irrigation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-102-SUT-LF

Technical Specifications

• Part Number: HDS06102SUTLF
• Category: Valves
• Subcategory: Pressure Reducing Valves
• Outlet Pressure Range: 25-90 PSI
• Max Inlet Pressure: 250 PSI
• Outlet Connection Type: Union FNPT
• Inlet Connection Type: Union FNPT
• Max Operating Temperature: 140°F
• Body Material: Bronze, Fabric Reinforced Diaphragm, Stainless Steel, Engineered Thermoplastics
• Gauge: None
• Reduction Ratio: 10:1 max
• Union Fittings: Single-Union Threaded
• Gauge Tap: 1/4 in. NPT (two)
• Approvals: ASSE 1003-2027, IAPMO Listed, CSA Certified (B356-10), NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed
• Dimensions: 6-15/16 in. high x 3-15/16 in. long (Union body no tailpieces)
• Connection Type: 1" Single Union Thread (NPT)
• Calibrated Adjustment Dial: Yes
• Lead Free Compliance: Wettable surfaces contain less than 0.25% of lead by weighted average
