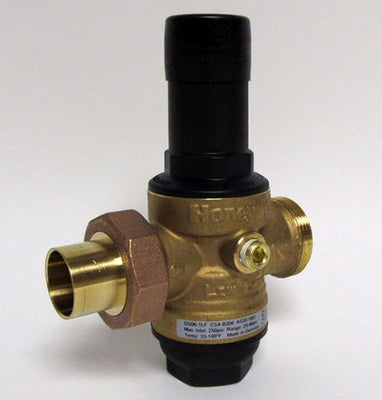

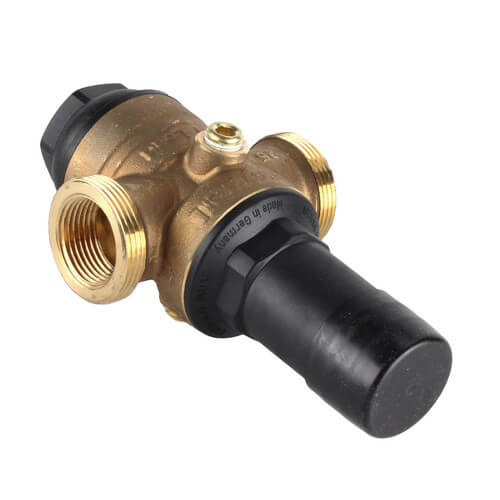

Resideo DS06-102-SUS-LF Pressure Reducing Valve Union Sweat 1 inch Replacement DS05C1071

Product Description

The Resideo DS06-102-SUS-LF Pressure Reducing Valve ensures premium management of water pressure in a range of settings, including residential, commercial, and irrigation systems. Crafted from corrosion-resistant materials with a union sweat connection, this model is also lead-free, enhancing its suitability for potable water applications.

• Lead-free construction suitable for potable water use.
• Incorporates a built-in strainer and gauge tap, streamlining installation and maintenance.
• User-friendly with a dial-set feature for easy pressure adjustments from 25 to 90 PSI.

Product Highlights

Featuring robust control capabilities, the DS06-102-SUS-LF operates with an inlet pressure rating up to 250 PSI and can maintain outlet pressure settings even when the inlet pressure varies widely. It's designed for durability with a non-corroding unitized cartridge that is easily replaceable.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DS06-100-SUS-LF

Technical Specifications

• Size: 1 inch
• Material: Brass, lead-free
• Connection Type: Union Sweat
• Pressure Range: 25 to 90 PSI
• Max Inlet Pressure: 250 PSI
• Operating Temperature: Up to 140 degrees Fahrenheit
• Compliance: ASSE 1003, IAPMO, CSA
