Resideo DS06-102-SUP-LF/U 1 in DialSet Press Single Union LF-PRV D06FA-1B

Product Description

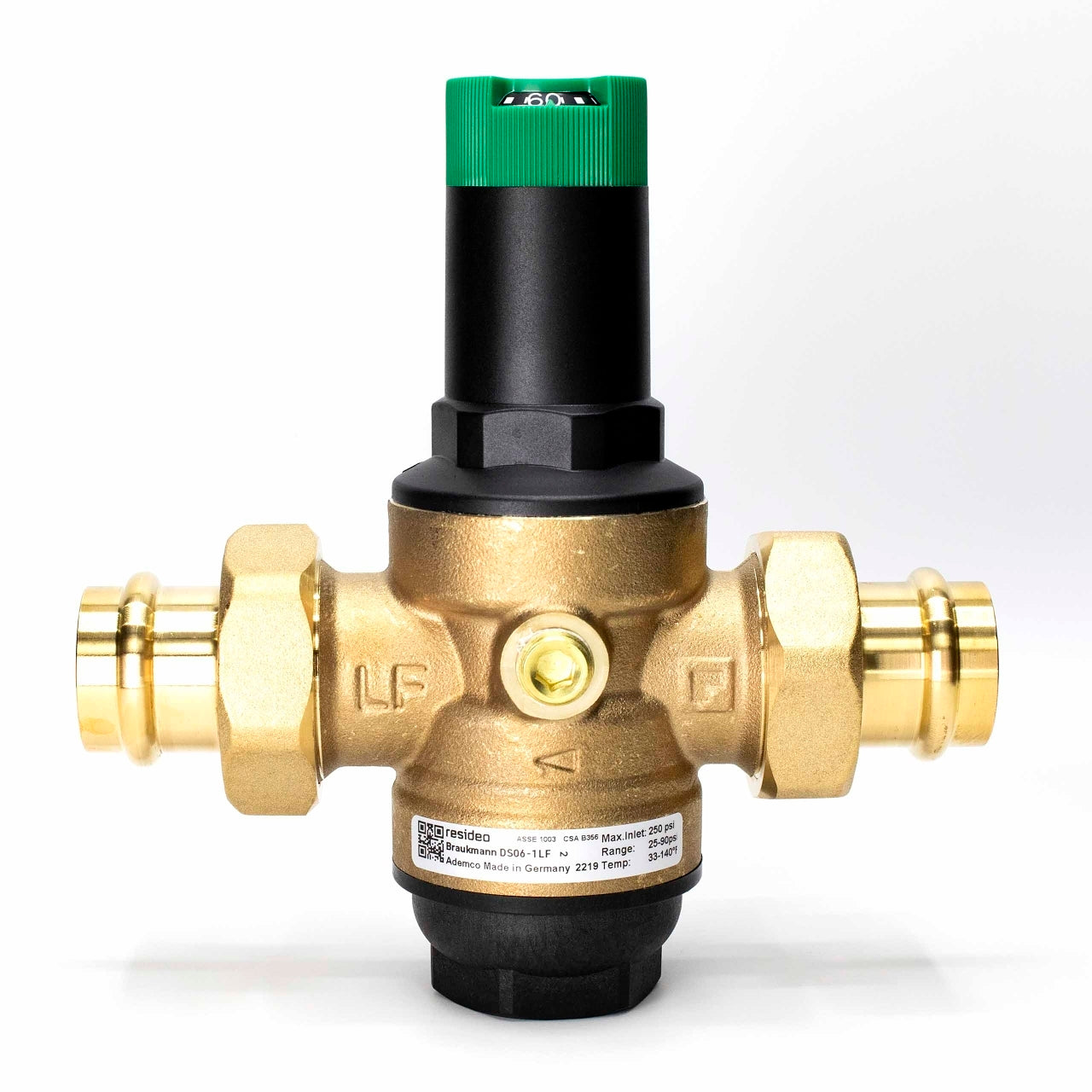

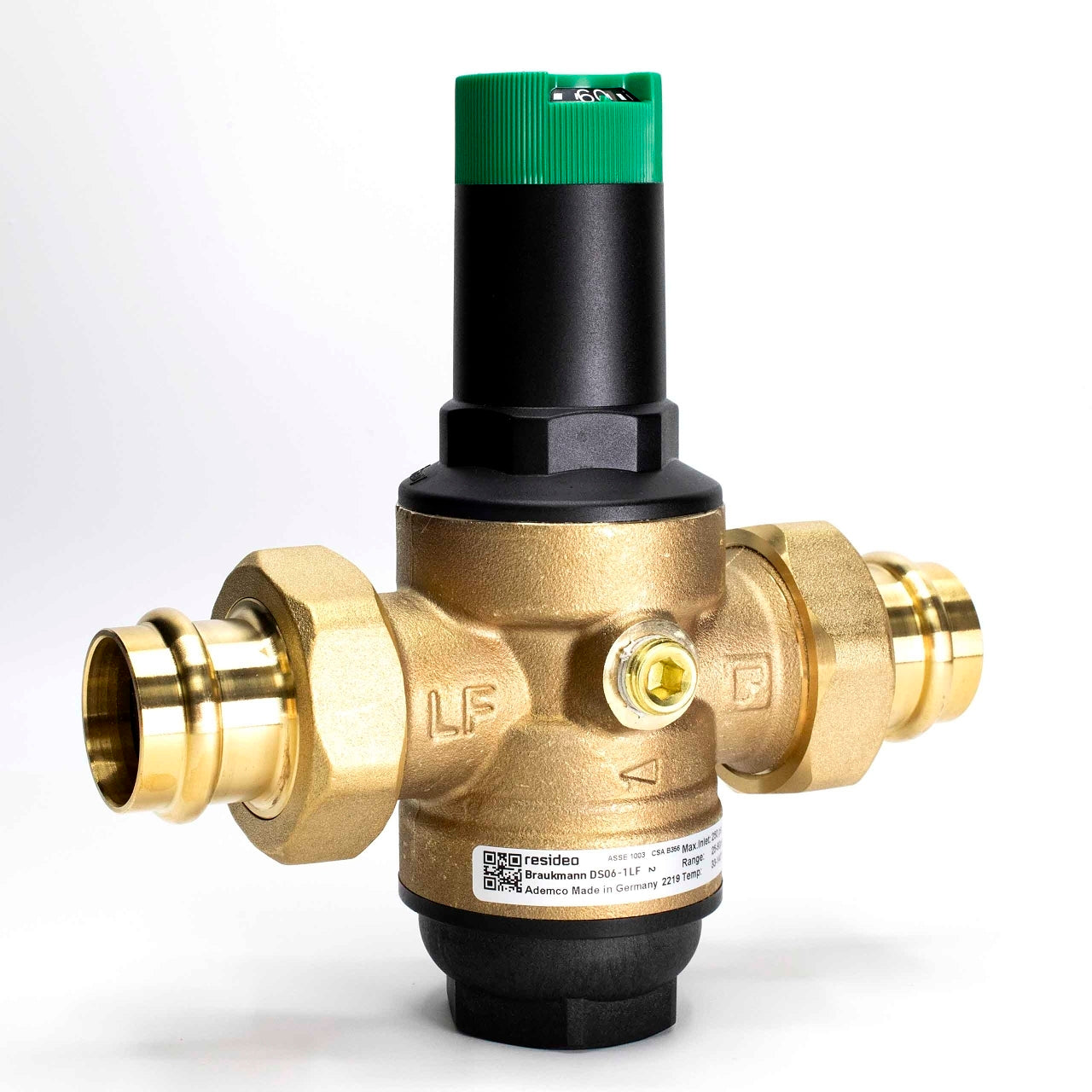

The RESIDEO DS06-102-SUP-LF/U Braukmann DS06 DialSet Pressure Regulating Valve is designed for potable water and irrigation applications, ensuring a constant outlet pressure. Constructed from lead-free ECO BRASS®, this 1-inch valve supports a maximum inlet pressure of 250 psi and an adjustable outlet pressure range of 25 to 90 psi, with a preset of 60 psi. Its downstream pressure adjustment dial eliminates the need for a separate pressure gauge during static pressure settings.

• Ensures constant outlet pressure for potable water and irrigation systems.
• Features a downstream pressure adjustment dial, removing the need for a pressure gauge during static pressure adjustments.
• Offers a dial calibration of ± 4 psi for precise pressure control.

Product Highlights

Features a downstream pressure adjustment dial for easy setting without a gauge and a balanced cartridge design for thermal expansion.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-102-SUP-LF/U
• Country of Origin: N/A

Technical Specifications

• Ambient Operating Temperature Min: 33°F (1°C)
• Ambient Operating Temperature Max: 140°F (60°C)
• Certifications: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance
• Connection Size: 1 in
• Connection Type: Female NPT Threaded Inlet and Outlet, Externally threaded for Unions
• Differential Pressure Min: 14.5 psi (99.97 kPa)
• Inlet Pressure Max: 250 psi (1723.69 kPa)
• Lead Free: Yes
• Media Temperature Min: 33°F (1°C)
• Media Temperature Max: 140°F (60°C)
• Number of Connections: 2
• Outlet Pressure Min: 25 psi (172.37 kPa)
• Outlet Pressure Max: 90 psi (620.53 kPa)
• Preset Outlet Pressure: 60 psi (414 kPa)
• Pressure Reducing Ratio: 10:1 Maximum
• Replacement Parts: D06FA-1B, ES06F-1B, SB06T-1
• Body Material: Lead-free ECO BRASS®
• Valve Body Pattern: Straight Through
• Application: Potable Water Pressure Regulation
• Valve Type: DialSet Pressure Regulating Valve
• DN Size: DN25
• Controlled Media: Potable Water
• Valve Diaphragm Material: Fabric-reinforced diaphragm
• Number of Gauge Taps: 1
• Series: DS06 DialSet
