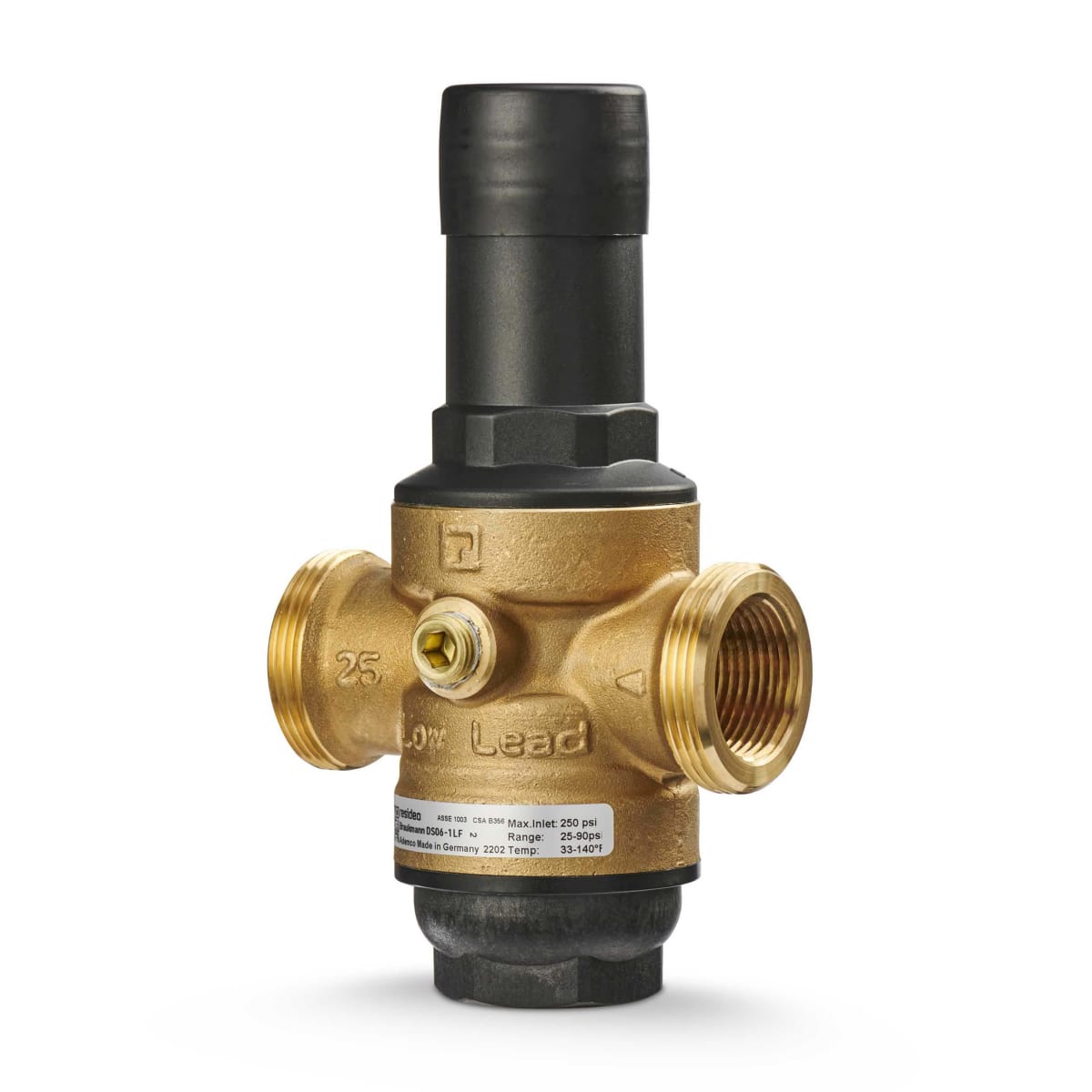

Resideo DS06-102-LF/U 1 in DialSet Female NPT Non-Union Body PRV

Product Description

The RESIDEO DS06-102-LF/U is a 1 inch DialSet Female NPT Pressure Regulating Valve designed for potable water and irrigation systems. This valve ensures a constant outlet pressure, featuring a balanced cartridge design for thermal expansion. Its downstream pressure adjustment dial simplifies settings without needing a pressure gauge. Constructed with brass housing, it is ASSE 1003-2020 Listed and NSF/ANSI 61 Compliant, providing reliable water pressure regulation.

• Dial Calibration of ± 4 psi for precise pressure adjustment.
• Balanced cartridge design accommodates thermal expansion properties.
• Downstream pressure adjustment dial eliminates the need for a separate pressure gauge.

Product Highlights

Ensures constant outlet pressure for potable water and irrigation applications with simplified adjustment.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-102-LF/U

Technical Specifications

• Size: 1 inch
• Type: PRV
• Application: Potable Water Pressure Regulation
• Seat Design: Balanced Single Seat Construction
• Gauge Tap Size: 1/4 inch
• Connection Type: FIP
• Controlled Media: Water
• Dial Calibration: ± 4 psi
• Number of Inlets: 1
• Strainer Included: No
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Gauge Tap Connection: NPT
• Certifications: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliant (<0.25% lead)
• Housing Material: Brass
