Resideo DS06-102-DUT-LF/U 1 in DialSet Female NPT Double-Union PRV

Product Description

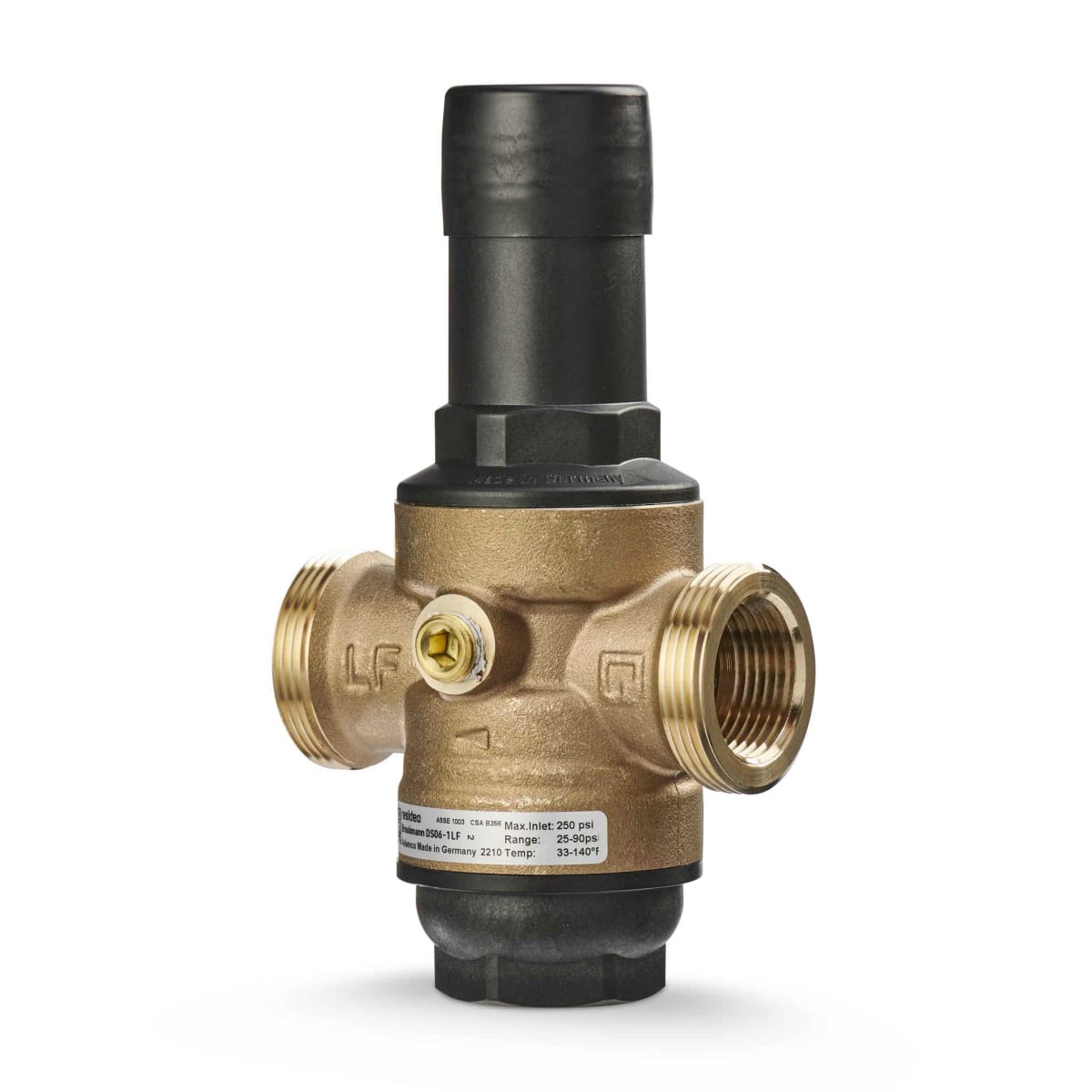

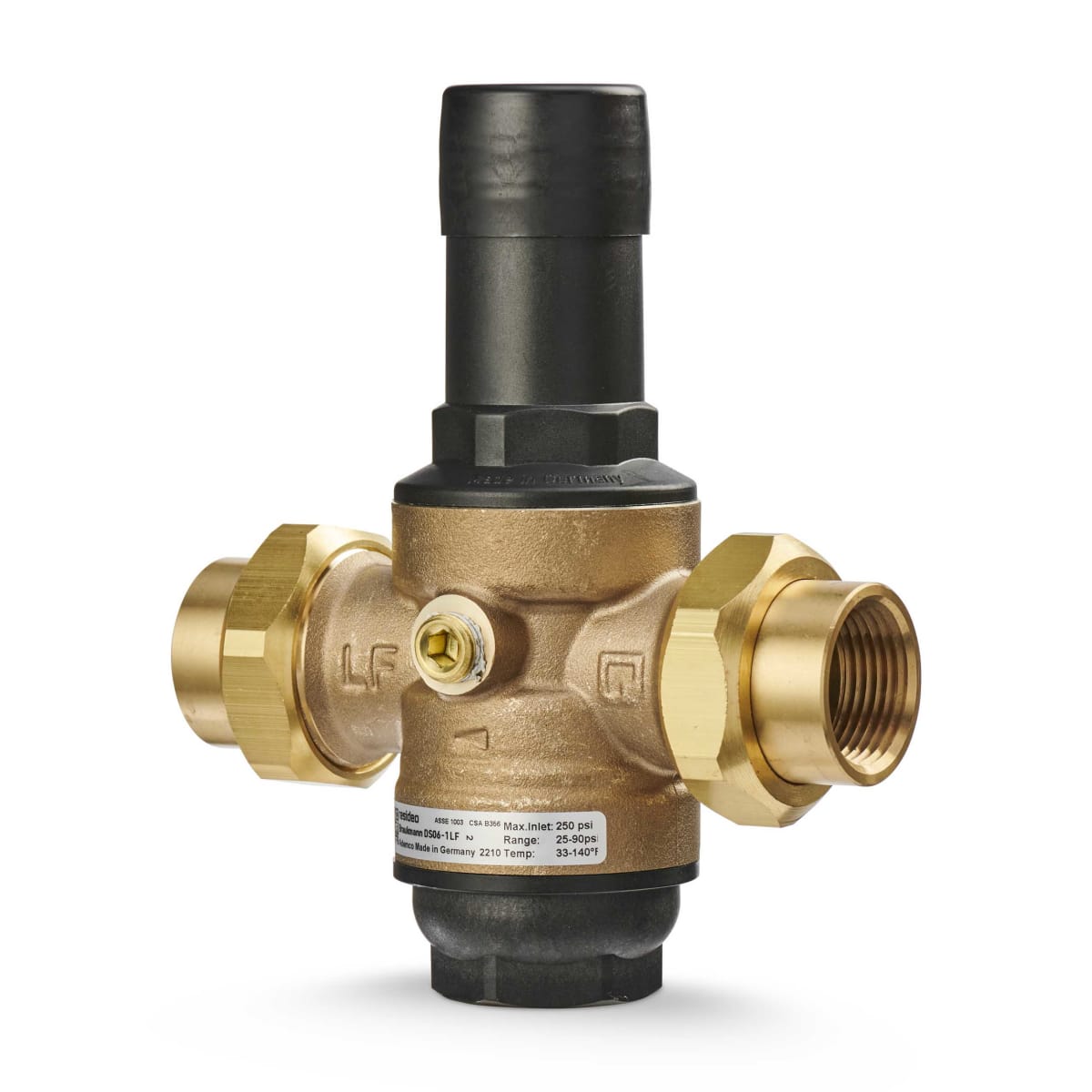

The Resideo DS06 DialSet Pressure Regulating Valve, model DS06-102-DUT-LF/U, is designed for potable water and irrigation applications. This valve maintains a consistent outlet pressure and simplifies pressure adjustments with its downstream pressure adjustment dial, which eliminates the need for a separate pressure gauge. It is ideal for ensuring optimal water flow while managing pressure levels effectively.

• Dial calibration of ±4 psi for precise adjustments.
• Balanced cartridge design supports thermal expansion, enhancing durability.
• Compatible with potable water and irrigation systems.

Product Highlights

This valve features a robust brass construction and a single seat design, providing reliability and efficiency in water pressure regulation.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-DS06-102-DUT-LF/U

Technical Specifications

• Pressure Reducing Valve Type: PRV
• Connection Type: MIP
• Number of Inlets: 1
• Gauge Tap Connection: NPT
• Warranty: 1 Year
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Material: Brass
• Dial Calibration: ±4 psi
• Approvals: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed
• Application: Potable Water Pressure Regulation
