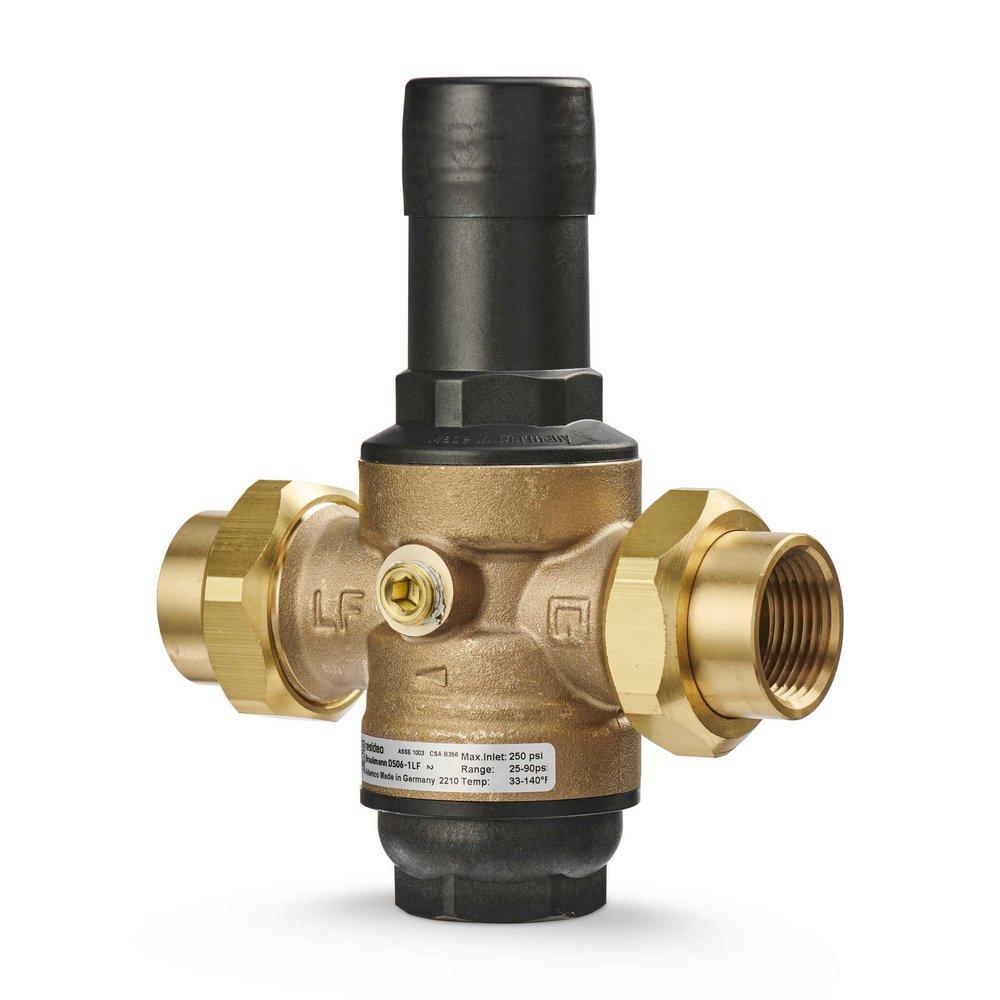

Resideo DS06-102-DUT-LF DialSet 1 in. Bronze FNPT x Union Pressure Regulating Valve

Product Description

The Resideo DS06-102-DUT-LF is a pressure regulating valve designed for reliable performance in residential and commercial applications. This valve maintains a consistent outlet pressure regardless of variations in inlet supply pressures. It is suitable for use with potable water and irrigation systems.

• Built-in dial-set feature eliminates the need for a separate pressure gauge.
• Non-corroding unitized cartridge makes maintenance simple and effective.
• Adjustable pressure range from 25 PSI to 90 PSI for versatile application.

Product Highlights

This pressure regulating valve allows easy installation in various configurations. The double-union threaded design ensures solid connections. It also includes a built-in strainer for added convenience.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-102-DUT-LF

Technical Specifications

• Connection Type: Female NPT
• Max Inlet Pressure: 250 PSI
• Operating Temperature Range: 140°F Maximum
• Reducing Ratio: 10:1 Maximum
• Outlet Pressure Adjustment Range: 25-90 PSI
• Gauge Tap: 1/4 in. NPT
• Weight: 2.96 lbs
• Dimensions: 7.7 in. (L) x 4.9 in. (W) x 3.1 in. (H)
