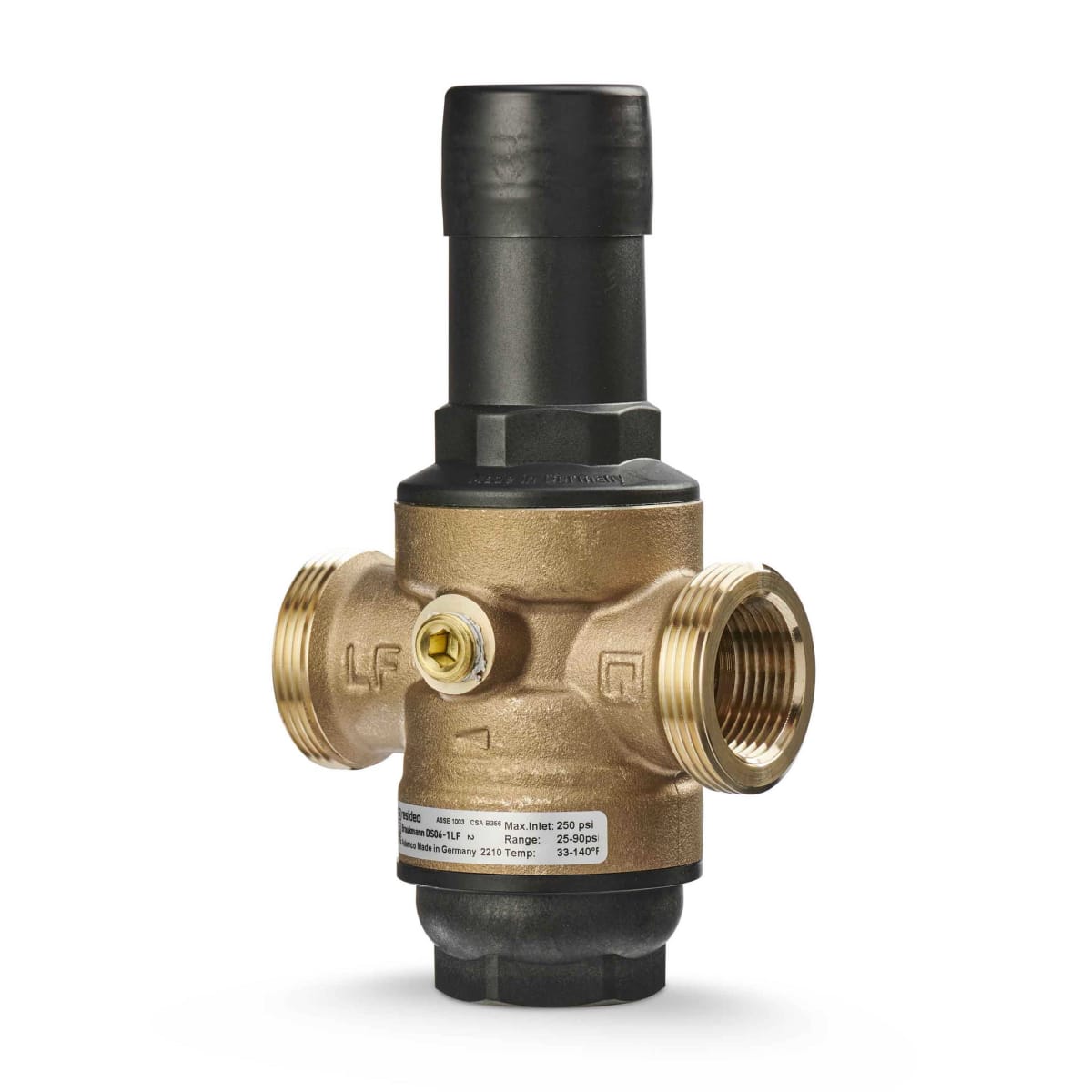

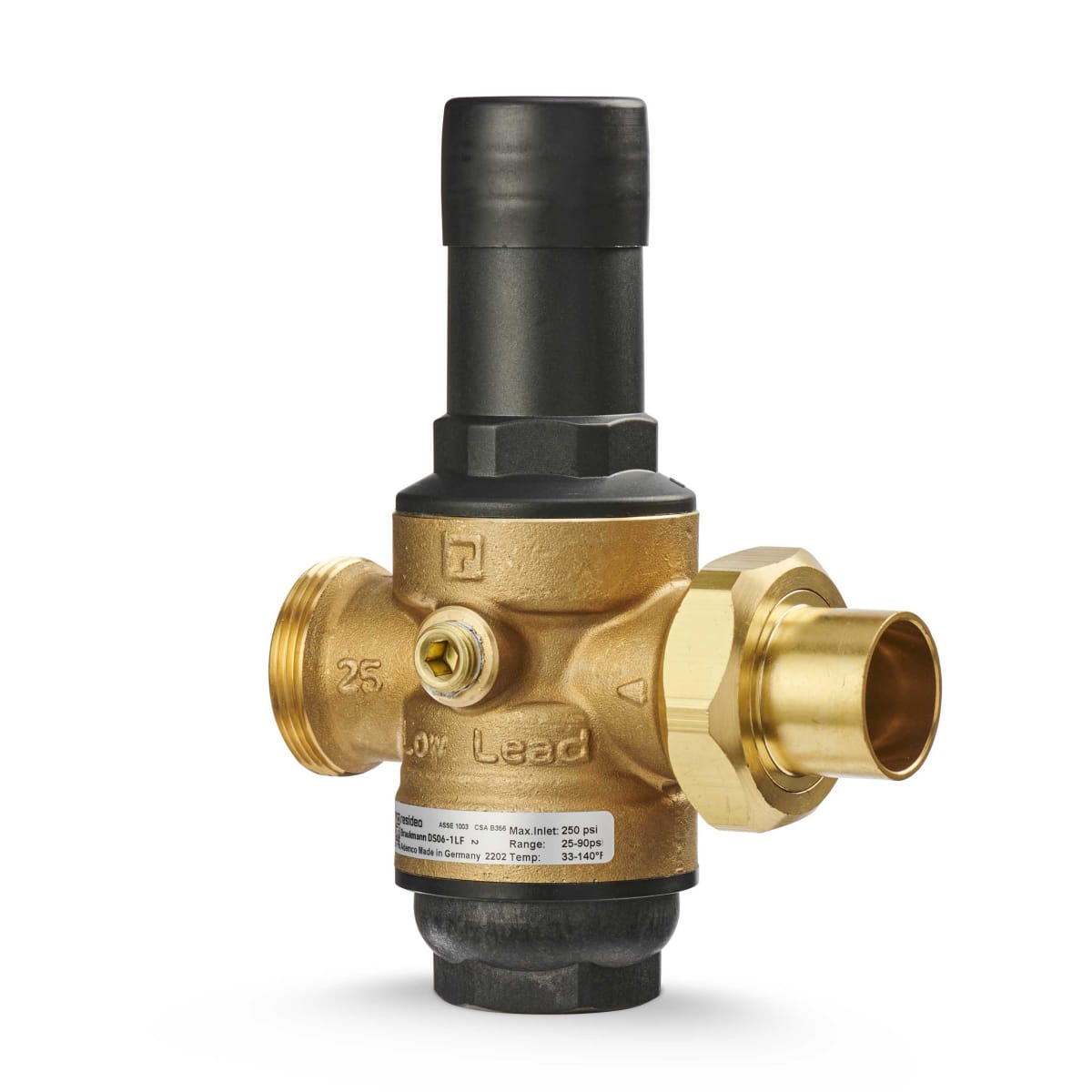

Resideo DS06-101-SUS-LF/U 3/4 in DialSet Female NPT Single Union Sweat-Tailpiece PRV

Product Description

The Resideo DS06-101-SUS-LF/U is a 3/4 inch DialSet Pressure Regulating Valve designed for potable water and irrigation systems. This valve maintains a steady outlet pressure, improving efficiency and performance. The unit features a downstream pressure adjustment dial for easy setting changes without the need for a pressure gauge.

• Regulates water pressure effectively
• Allows thermal expansion with balanced cartridge design
• Ideal for both potable water and irrigation applications

Product Highlights

This valve provides reliable water pressure regulation through simple adjustments and carefully engineered components.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-101-SUS-LF/U

Technical Specifications

• Size: 3/4 inch
• Type: PRV
• Application: Potable Water Pressure Regulation
• Connection Type: Sweat
• Gauge Tap Size: 1/4 inch
• Dial Calibration: ± 4 psi
• Number of Inlets: 1
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Approval Standards: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
• Pressure Reducing Valve Housing Material: Brass
• Strainer Included: No
