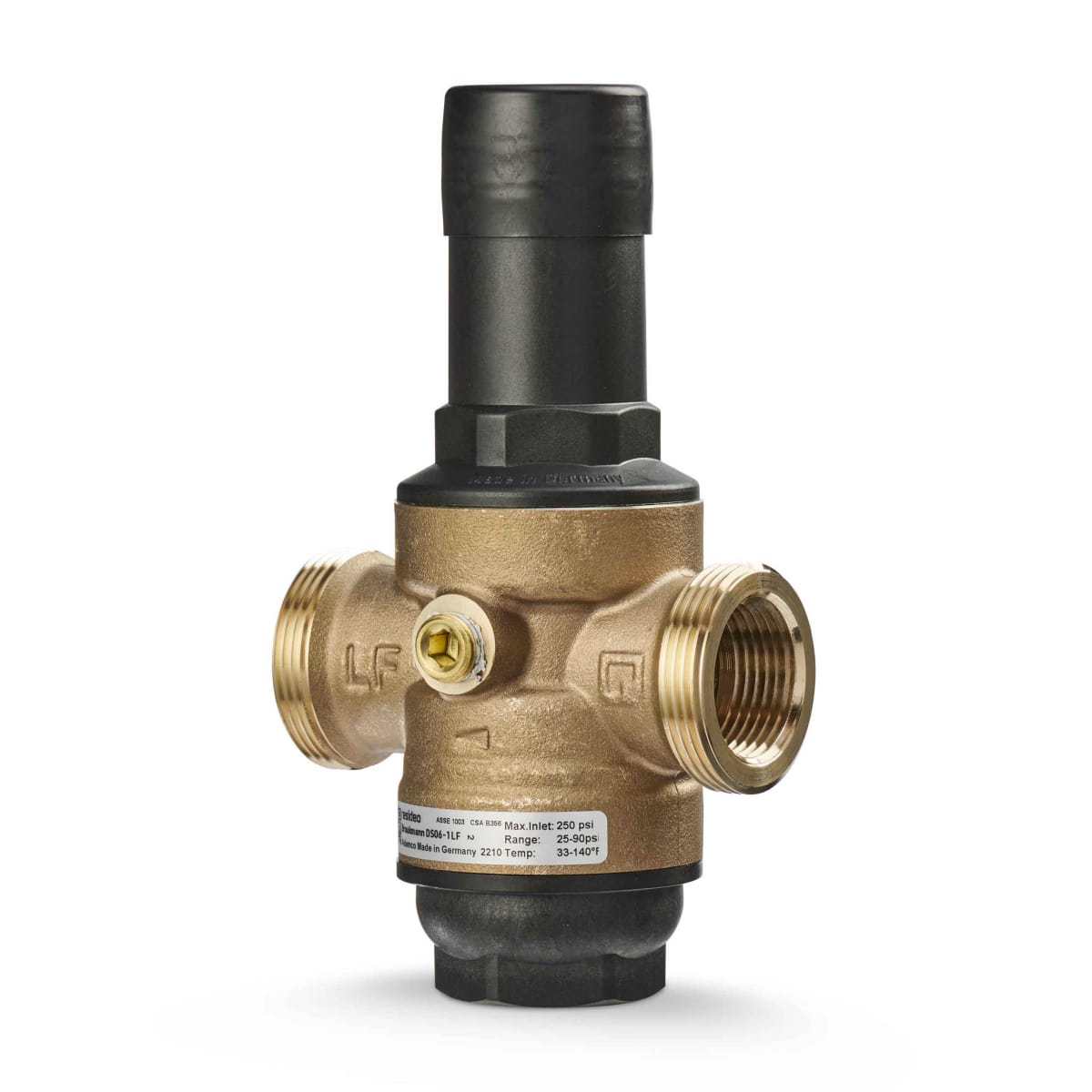

Resideo DS06-101-LF/U 3/4 in DialSet Female NPT Non-Union Body PRV

Product Description

The Resideo DS06-101-LF/U Braukmann DS06 DialSet Pressure Regulating Valve (PRV) ensures a constant outlet pressure for potable water and irrigation applications. It features a downstream pressure adjustment dial, eliminating the need for a pressure gauge during static pressure adjustments. The balanced cartridge design accommodates thermal expansion properties.

• Dial Calibration of ± 4 psi for precise adjustments.
• Balanced cartridge design allows for thermal expansion properties.
• Suitable for both potable water and irrigation systems.

Product Highlights

This PRV offers precise pressure regulation with a convenient dial adjustment for potable water and irrigation systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-101-LF/U

Technical Specifications

• Size: 3/4 inch
• Product Type: PRV
• Application: Potable Water Pressure Regulation
• Seat Design: Balanced Single Seat Construction
• Recirculation: No
• Gauge Tap Size: 1/4 inch
• Compatible Media: Potable Water, Irrigation
• Connection Type: FIP
• Controlled Media: Water
• Dial Calibration: ± 4 psi
• Number of Inlets: 1
• Strainer Included: No
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Gauge Tap Connection: NPT
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliant (<0.25% lead)
• Housing Material: Brass
