Resideo DS06-101-DUT-LF/U 3/4 in DialSet Female NPT Double Union, Internally-Threaded PRV

Product Description

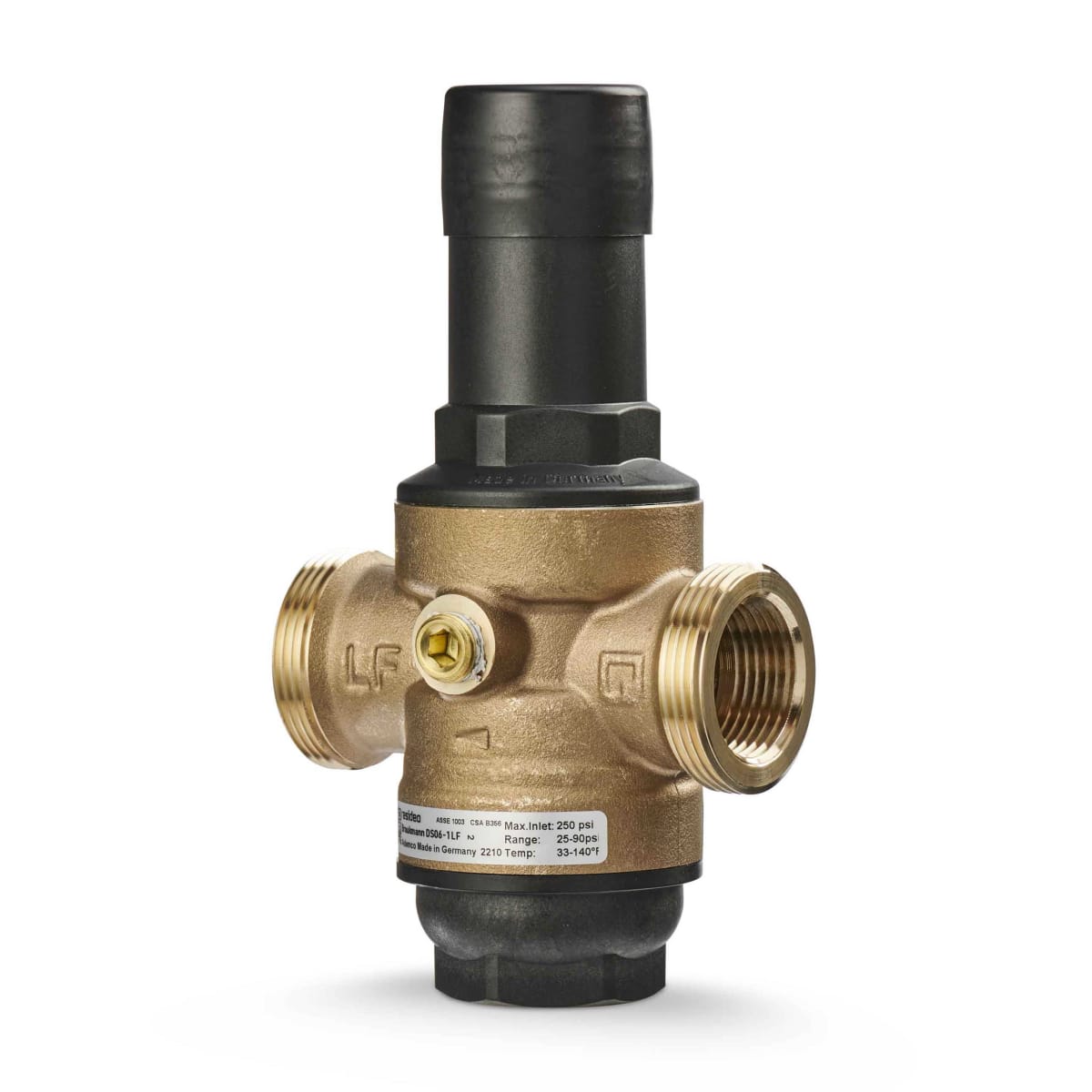

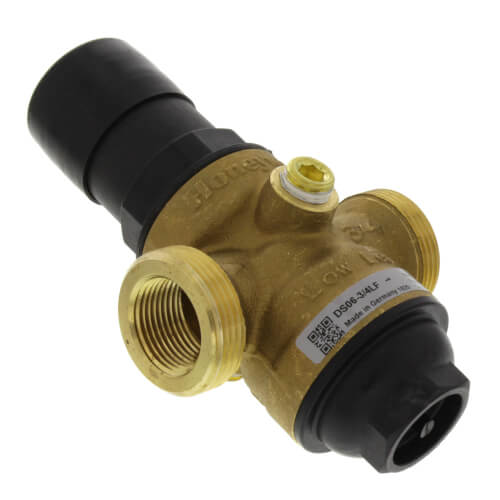

The Resideo Braukmann DS06-101-DUT-LF/U DialSet Pressure Regulating Valve (PRV) supports potable water and irrigation applications, ensuring a constant outlet pressure. It features a downstream pressure adjustment dial, removing the need for a pressure gauge when adjusting settings (static pressure only). The valve has a 3/4" size and a balanced cartridge design.

• Downstream pressure adjustment dial eliminates the need for a pressure gauge.
• Suitable for potable water and irrigation applications.
• Maintains a constant outlet pressure over a wide range of inlet supply pressures.

Product Highlights

This pressure regulating valve is ideal for maintaining consistent water pressure in residential and commercial irrigation systems. It features a built-in dial for easy pressure adjustment.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-101-DUT-LF/U

Technical Specifications

• Size: 3/4"
• Type: PRV's
• Warranty: 1 Year
• Application: Potable Water Pressure Regulation
• Seat_Design: Balanced Single Seat Construction
• ReCirculation: No
• Gauge_Tap_Size: 1/4 in
• Compatible_With: Potable Water|Irrigation
• Connection_Type: MIP
• Controlled_Media: Water
• Dial_Calibration: ± 4 psi
• Number_of_Inlets: 1
• Strainer_Included: No
• Regulator_Mechanism: Fabric Reinforced Diaphragm
• Gauge_Tap_Connection: NPT
• Pressure_Reducing_Valve_Housing_Material: Brass
• Operating Temperature Range: 140 F Maximum
• Outlet Pressure Adjustment Range: 25-90 PSI
• Max. Inlet Pressure Rating: 250 PSI
• Reducing Ratio: 10:1 Maximum

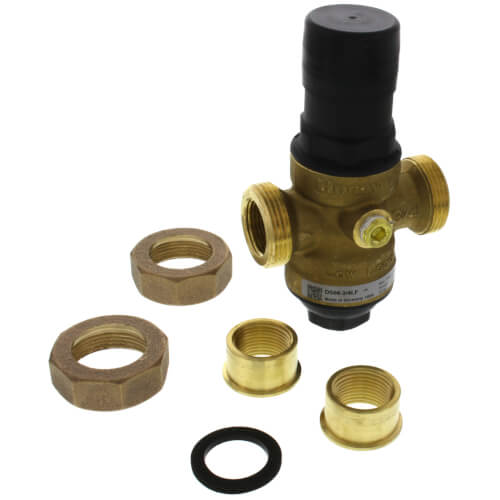

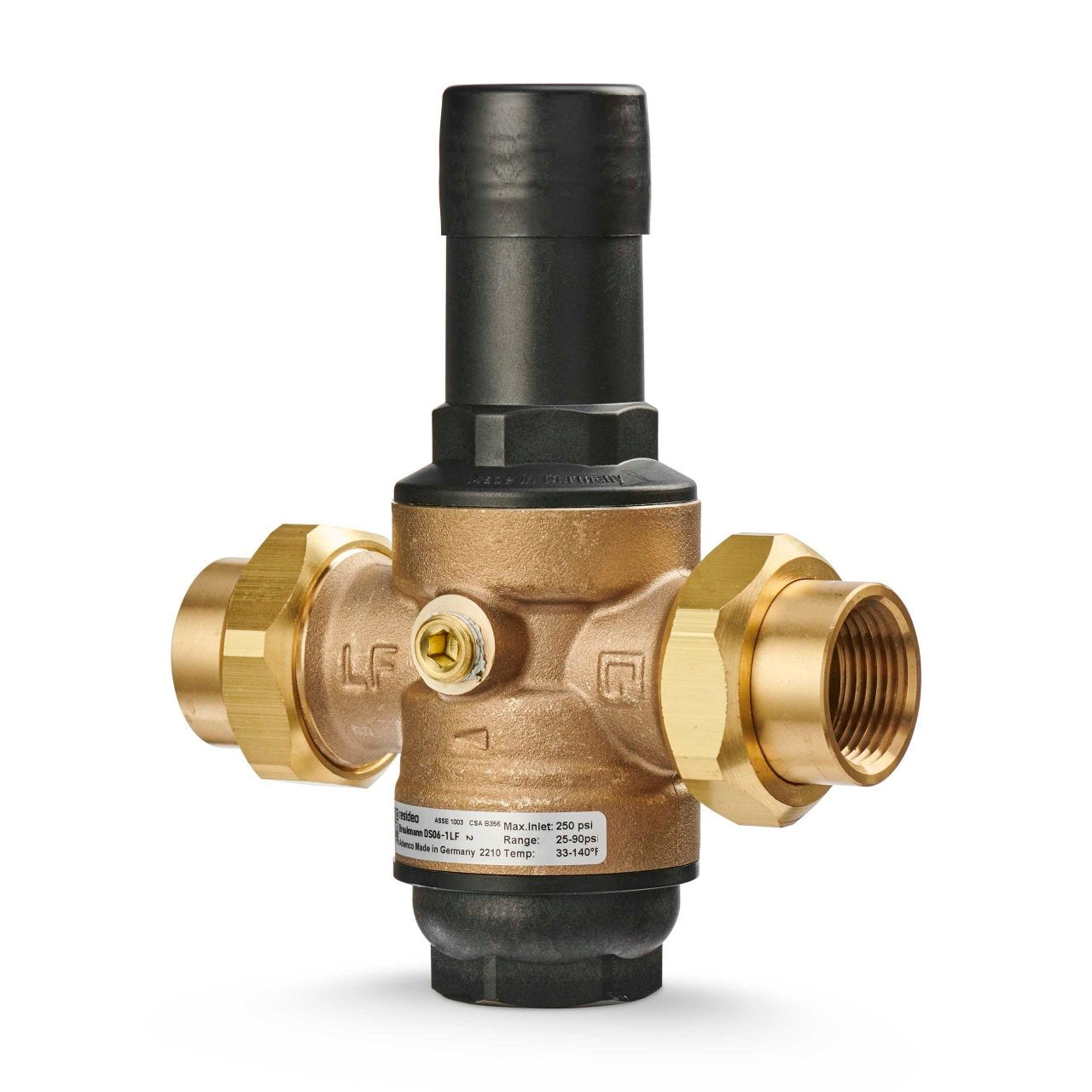

• Union Fittings: Double-Union Threaded
• Pressure Range: 25 to 90 PSI
• Min Pressure (PSI): 25
• Max Pressure (PSI): 90
• Max Inlet Pressure: 250 PSI
• Outlet Type: Union FNPT
• Inlet Type: Union FNPT
• Operating Temp Range: 140°F MAX
• Material: Bronze
• Reduction Ratio: 10:1 max
• Features: Calibrated Adjustment Dial
• Body Material: Bronze
• Domestic/Import: Import
• End Style: FNPT
• Media: Potable Water
• Nominal Size: 3/4 in
• Pressure Rating: 256 psi
• Series: DS06
• Temperature Rating: 140 deg F Operating
• Collection:: DS06 DialSet®
• End Connection 1:: NPT
• End Connection 2:: Union
• End Connections:: NPT x Union
• Fitting Size 1:: 3/4 in
• Lead Law Compliance Level:: Lead Law Compliant and Certified
• Lead Law Compliant:: Yes
• Maximum Temperature:: 140
• Recommended Valve Application:: Water
• Valve Body Material:: Lead Free Brass
• Valve Body Style:: Straight
• Valve Bonnet Type:: Union
• Valve Size:: 3/4 in
• Valve Type:: Pressure Reducing Valve
