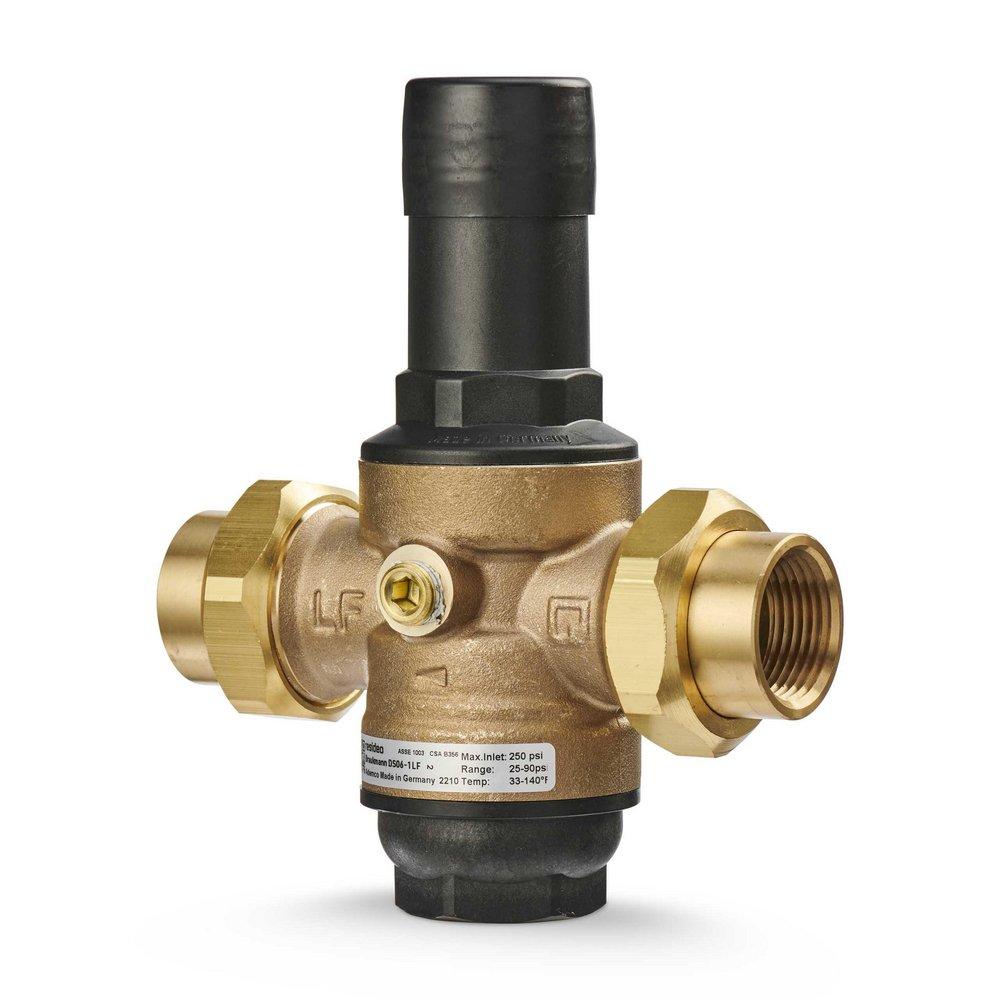

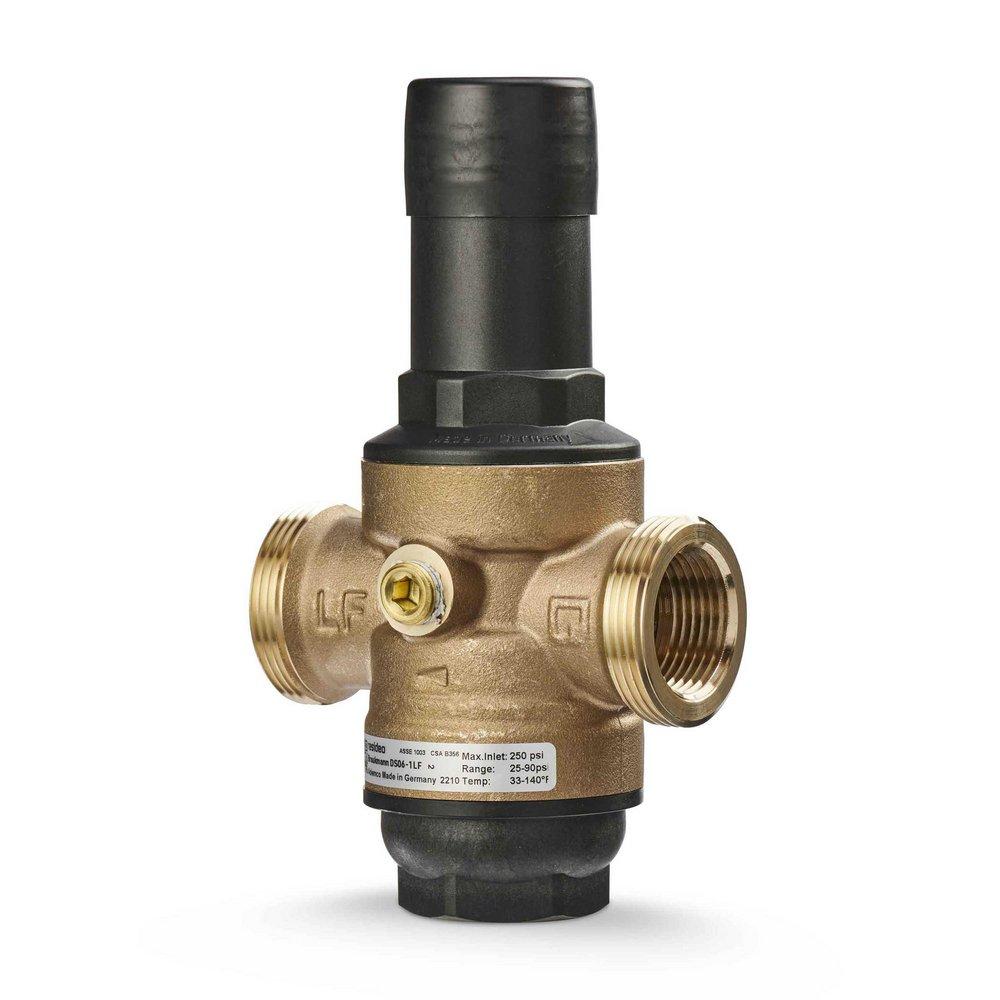

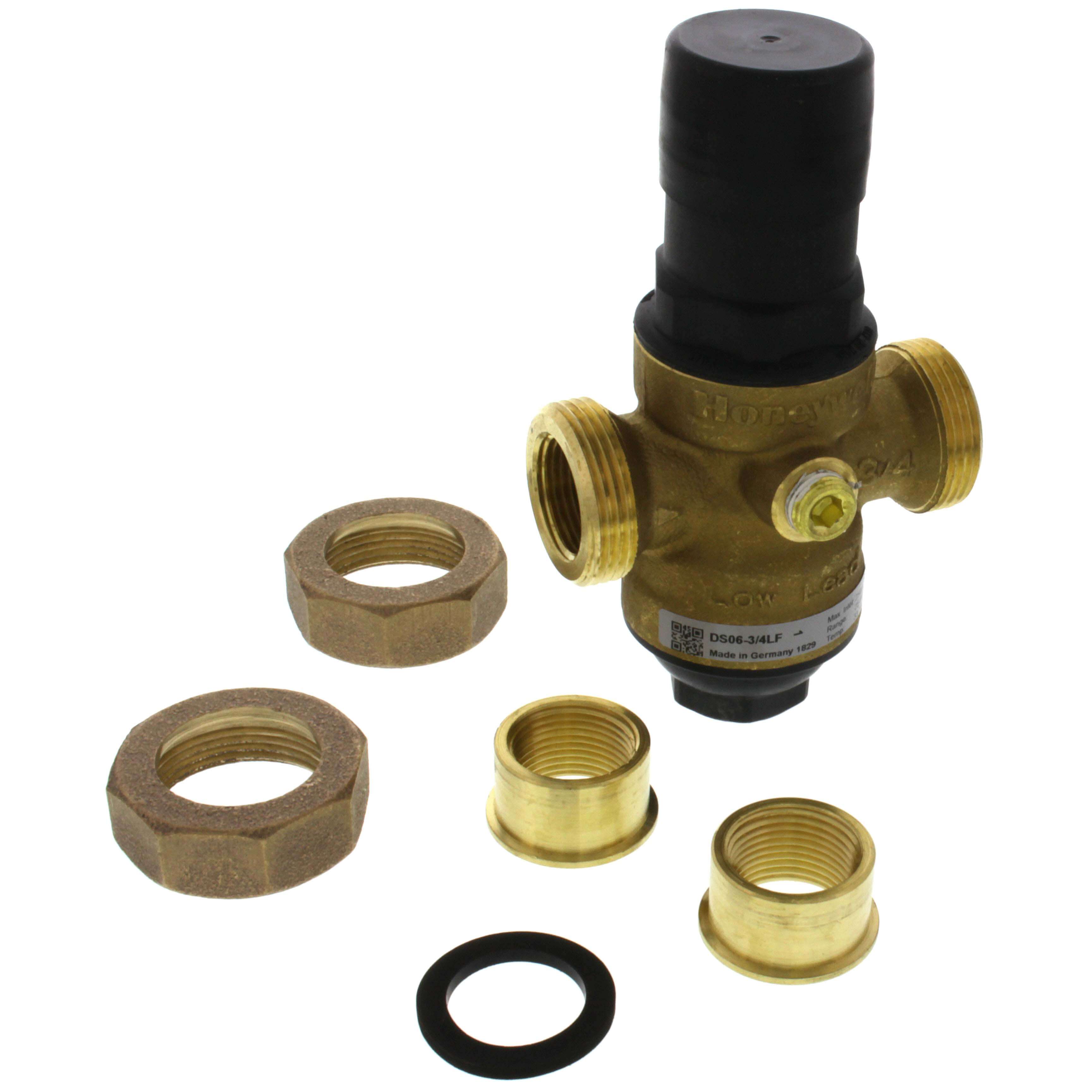

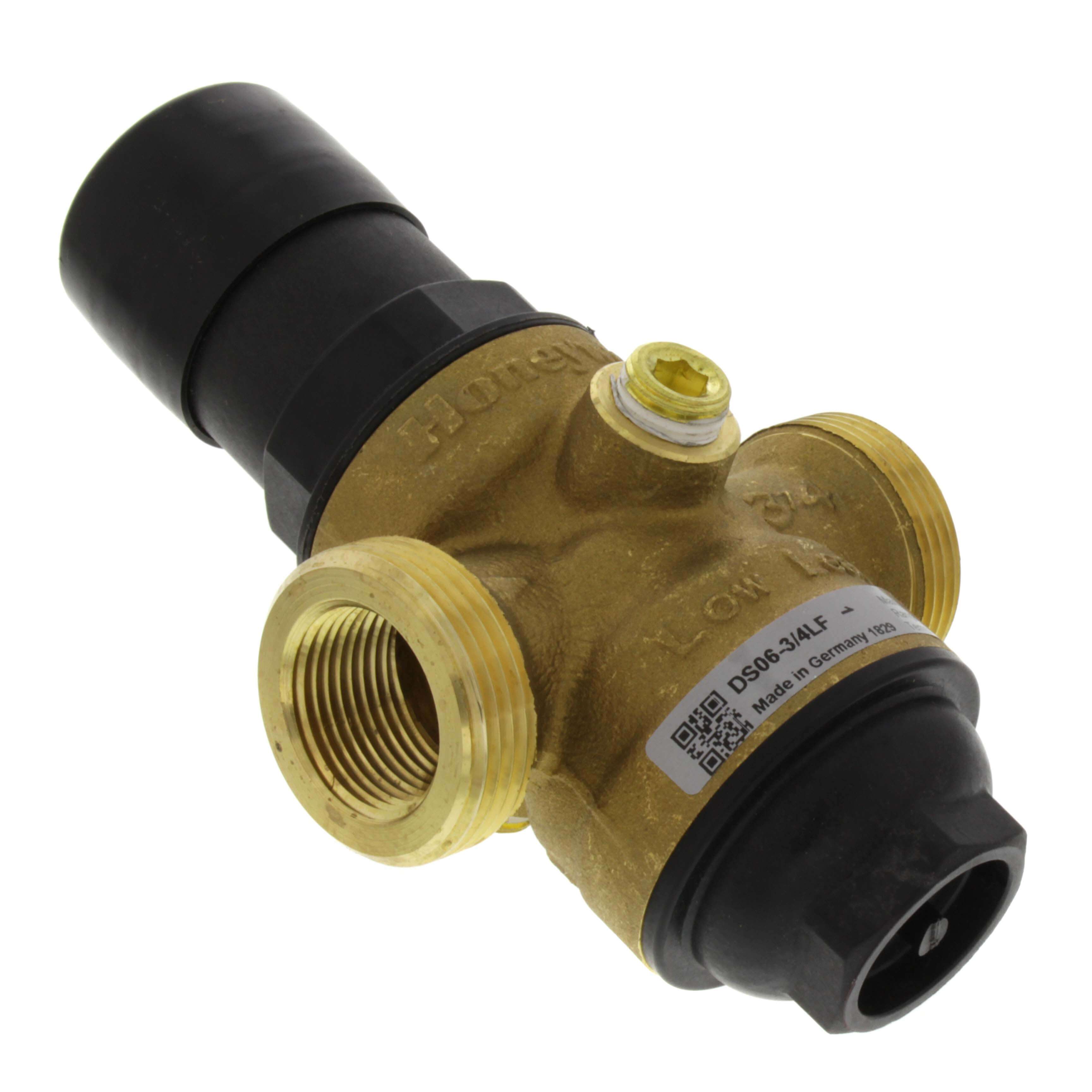

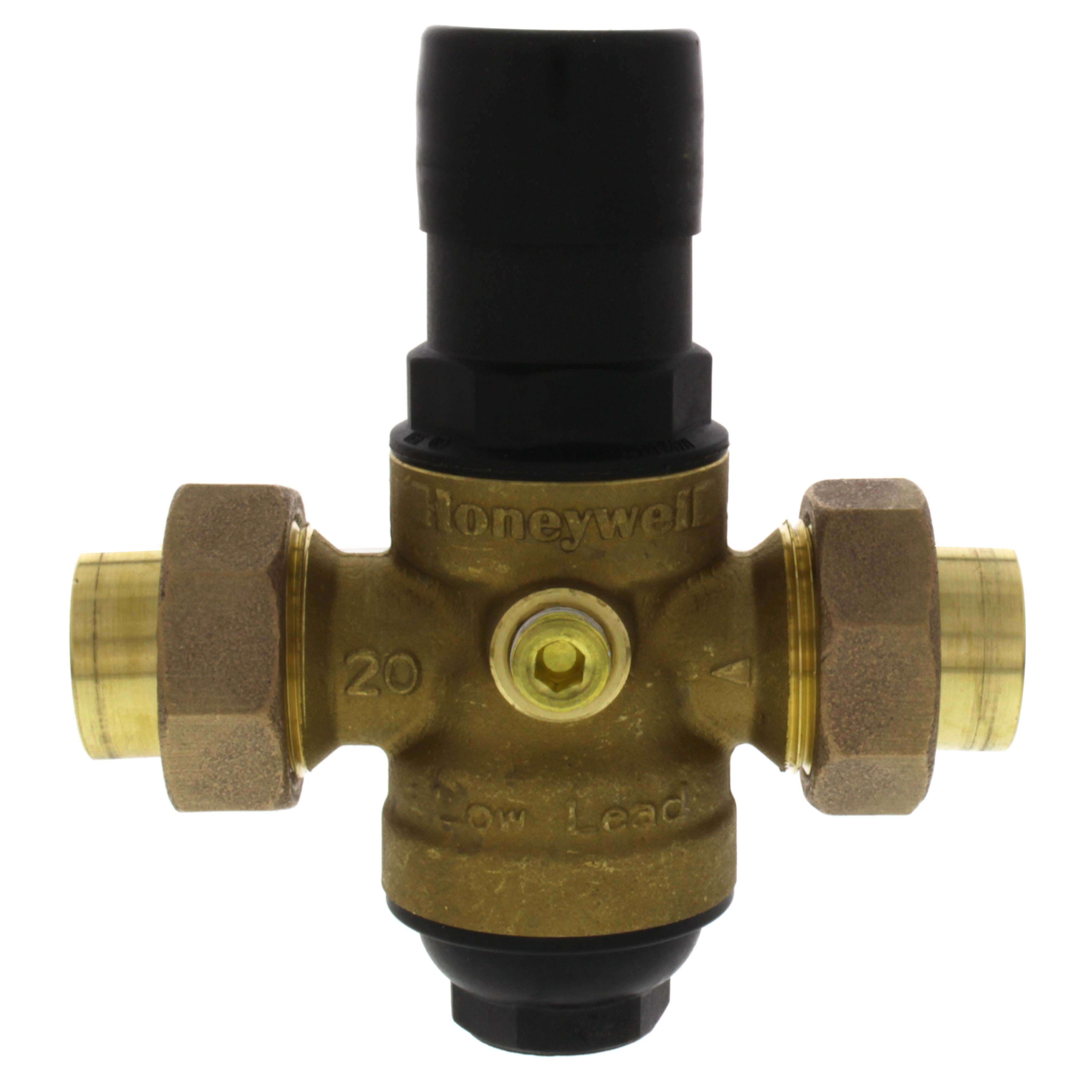

Resideo DS06-101-DUT-LF DialSet 3/4 in. Bronze FNPT x Union Pressure Regulating Valve

Product Description

The Resideo DS06-101-DUT-LF is a pressure regulating valve designed to maintain a consistent outlet pressure across varying inlet supply pressures. This valve features a female NPT threaded inlet and outlet, making it versatile for installation in various settings including potable water and irrigation systems.

• Pressure adjustment from twenty-five to ninety PSI
• Suitable for industrial, commercial, and residential use
• Double-union threaded design allows for easy installation

Product Highlights

This product eliminates the need for an external pressure gauge, simplifying installation and usage. The built-in dial-set mechanism enables quick adjustments to the static pressure settings.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-101-DUT-LF

Technical Specifications

• Operating Temperature Range: Maximum one hundred forty degrees Fahrenheit
• Connection Type: Female NPT threaded inlet and outlet
• Outlet Pressure Adjustment Range: Twenty-five to ninety PSI
• Maximum Inlet Pressure Rating: Two hundred fifty PSI
• Gauge Tap: One-fourth inch NPT, two taps
• Reducing Ratio: Ten to one maximum
• Union Fittings: Double-union threaded
• Approvals: IAPMO listed
