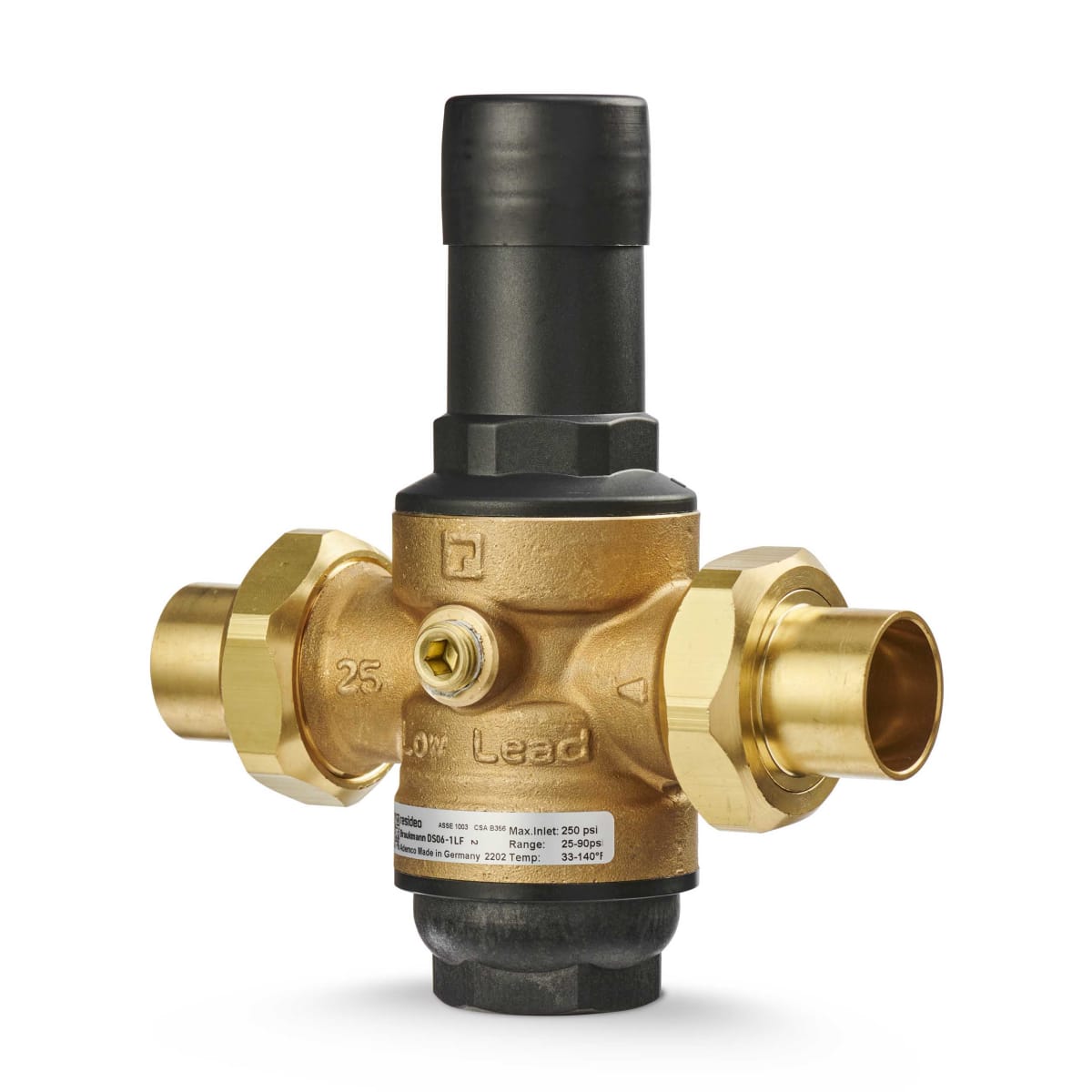

Resideo DS06-101-DUS-LF/U 3/4 in DialSet Female NPT Double Union Sweat PRV

Product Description

The Resideo DS06-101-DUS-LF/U is a pressure regulating valve (PRV) designed for potable water and irrigation systems. This valve maintains a consistent outlet pressure, ensuring the efficient operation of connected systems. It features a downstream pressure adjustment dial, eliminating the need for a separate pressure gauge during adjustments.

• Dial Calibration ± 4 psi
• Balanced cartridge design designed for thermal expansion
• Compatible for use with potable water and irrigation systems

Product Highlights

This valve provides reliable pressure control, suitable for various residential and commercial applications.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-DS06-101-DUS-LF/U

Technical Specifications

• Size: 3/4 inches
• Application: Potable Water Pressure Regulation
• Dial Calibration: ± 4 psi
• Connection Type: Sweat
• Pressure Reducing Valve Housing Material: Brass
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed
• Regulator Mechanism: Fabric Reinforced Diaphragm
• Number of Inlets: 1
• Strainer Included: No
