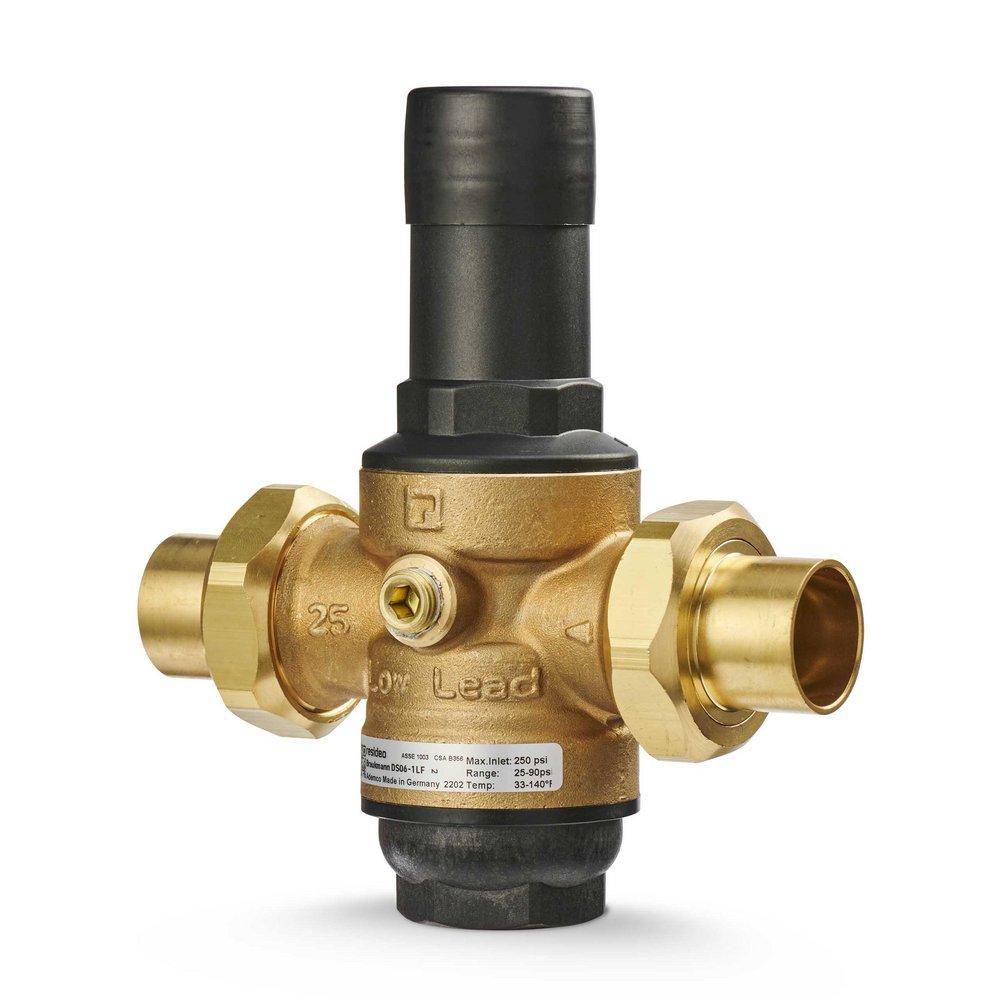

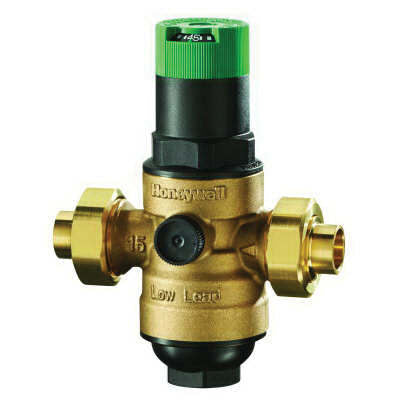

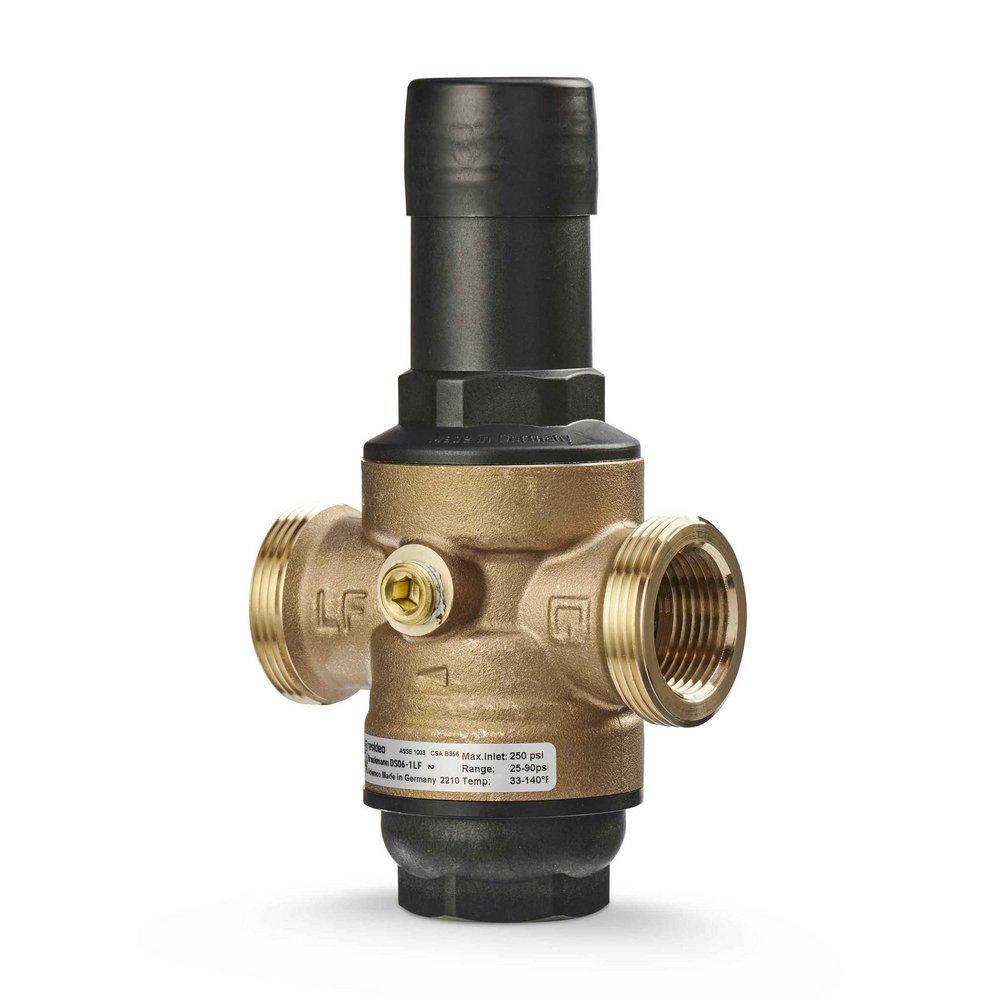

Resideo DS06-101-DUS-LF Pressure Reducing Valve 3/4 in Bronze Plastic Stainless Steel FNPT x Double Union Sweat

Product Description

The Resideo DS06-101-DUS-LF Pressure Reducing Valve is engineered to maintain a consistent outlet pressure, suitable for various water pressure management applications. This valve features a unique dial-set system for easy adjustment without the need for a pressure gauge, ideal for both commercial and residential installations.

• Easy to configure with built-in dial-set control.
• Incorporates a strainer for maintenance ease and prolonged valve life.
• Designed with robust materials like bronze, stainless steel, and engineered thermoplastics for durability and reliability.

Product Highlights

With its compact design, the DS06-101-DUS-LF is perfect for installation in limited spaces and is capable of regulating pressure from 25 to 90 PSI. It offers a built-in strainer and a non-corroding unitized cartridge which simplifies the maintenance process and improves operational longevity.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Type: Pressure Reducing Valve

Technical Specifications

• Connection Type: FNPT x Double Union Sweat
• Pressure Setting: Adjustable from 25 PSI to 90 PSI
• Material: Bronze, Plastic, Stainless Steel
• Max Inlet Pressure: 250 PSI
• Dimension: 3/4 inch connection size
• Approvals: ASSE 1003, IAPMO, CSA, Low Lead Compliant
