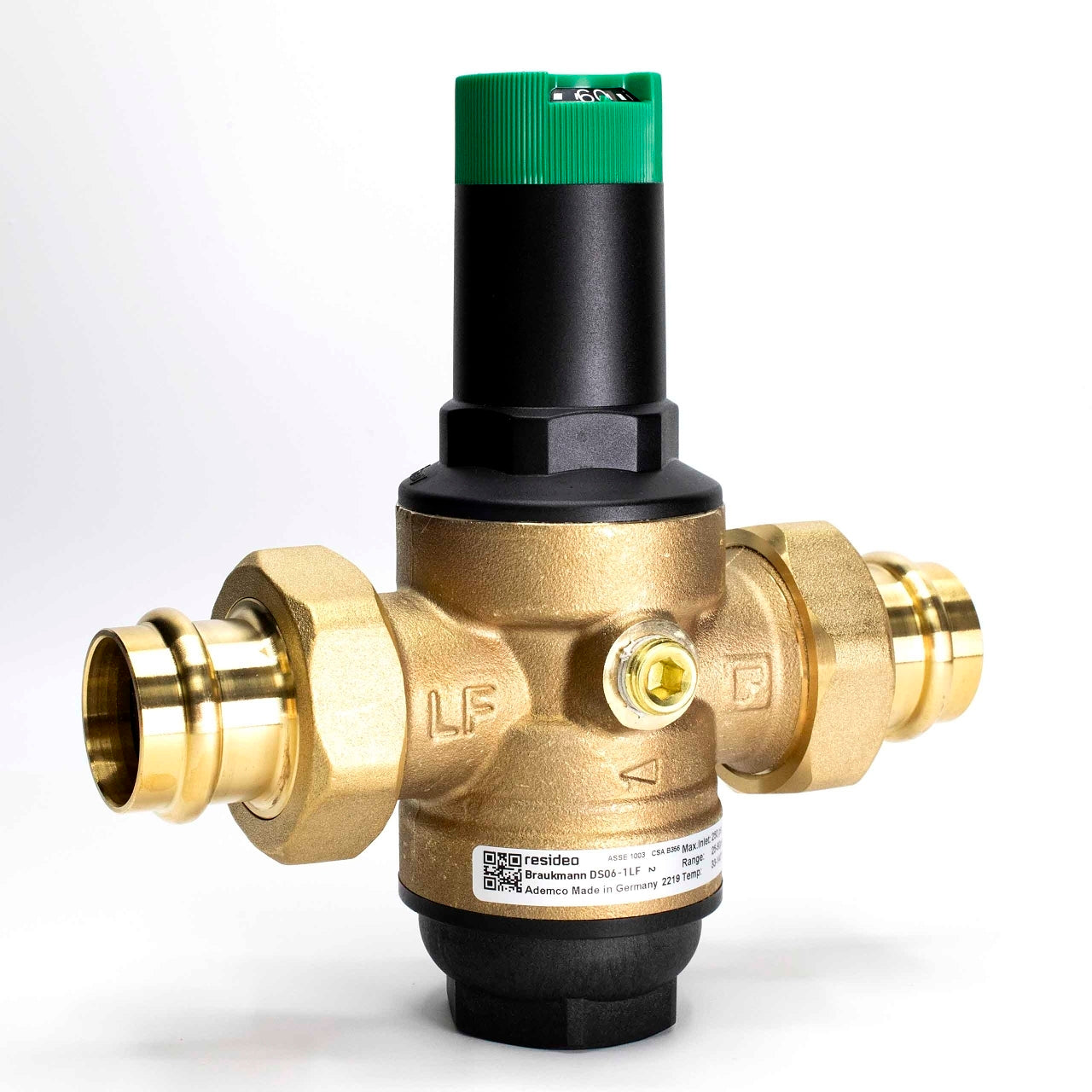

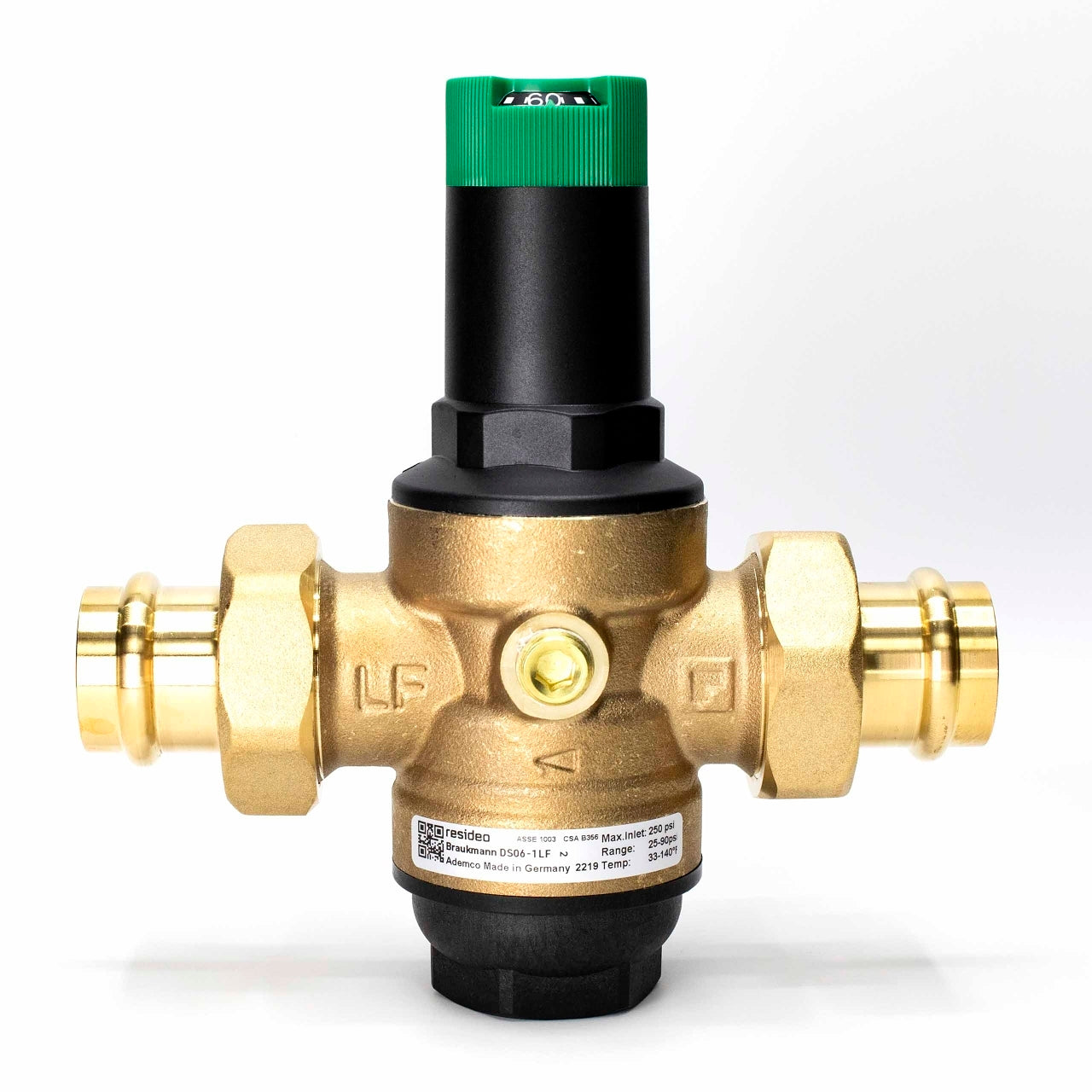

Resideo DS06-100-SUP-LF/U 1/2 in DialSet Press Single Union LF-PRV D06FA-1/2

Product Description

The Resideo DS06-100-SUP-LF/U 1/2 inch DialSet Pressure Regulating Valve (PRV) is designed for potable water and irrigation systems, ensuring a constant outlet pressure. This lead-free valve supports a maximum inlet pressure of 250 psi and provides an adjustable outlet pressure range from 25 to 90 psi, with a preset of 60 psi. It features a downstream pressure adjustment dial, eliminating the need for a separate pressure gauge during static pressure adjustments.

• Supports potable water and irrigation applications.
• Ensures a constant outlet pressure.
• Features a downstream pressure adjustment dial that removes the need for a pressure gauge when adjusting settings (static pressure only).

Product Highlights

Balanced cartridge design allows for thermal expansion properties.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-100-SUP-LF/U

Technical Specifications

• Ambient Operating Temperature Minimum: 33°F (1°C)
• Ambient Operating Temperature Maximum: 140°F (60°C)
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance (wettable surfaces contain less than 0.25% of lead by weighted average)
• Connection Size: 1/2 in
• Connection Type: Female NPT Threaded Inlet and Outlet, Externally threaded for Unions
• Differential Pressure Minimum: 14.5 psi (99.97 kPa)
• Domestic Hot Water Compatibility: Yes
• Inlet Pressure Maximum: 250 psi (1723.69 kPa)
• Lead Free Compliance: Yes
• Media Temperature Minimum: 33°F (1°C)
• Media Temperature Maximum: 140°F (60°C)
• Number of Connections: 2
• Outlet Pressure Minimum: 25 psi (172.37 kPa)
• Outlet Pressure Maximum: 90 psi (620.53 kPa)
• Preset Outlet Pressure: 60 psi (414 kPa)
• Pressure Reducing Ratio: 10:1 Maximum
• Replacement Parts: D06FA-1/2, ES06F-1/2A, SB06T-1/2, 0901246
• Valve Body Material: Lead-free ECO BRASS®
• Valve Body Pattern: Straight Through
• Application: Potable Water Pressure Regulation
• Valve Type: DialSet Pressure Regulating Valve
• DN Size: DN15
• Controlled Media: Potable Water
• Valve Diaphragm Material: Fabric-reinforced diaphragm
• Number of Gauge Taps: 1
