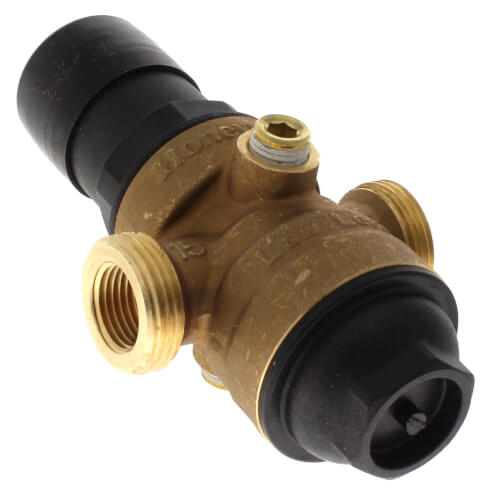

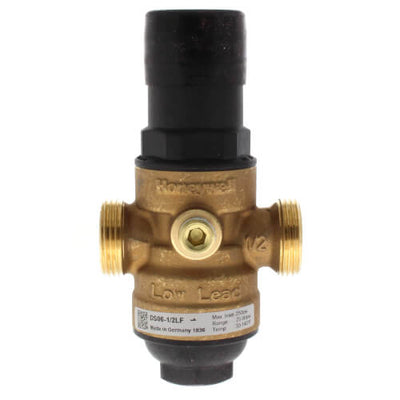

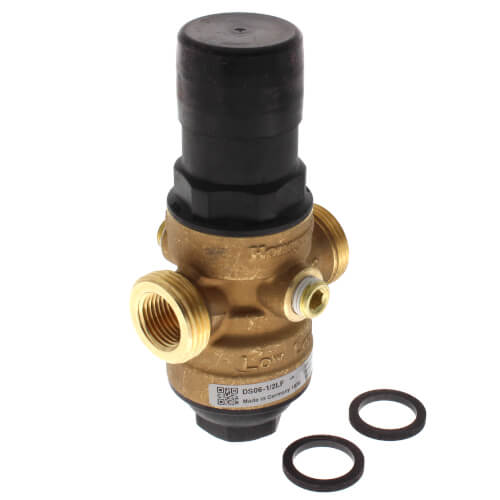

Resideo DS06-100-LF Pressure Reducing Valve Lead-Free Adjustable Dial

Product Description

The Resideo DS06-100-LF Dialset Pressure Reducing Valve, crafted from lead-free brass, integrates advanced engineering to ensure superior performance in residential and commercial water systems. It is especially suitable for potable water applications.

• Adjustable outlet pressure from 25 psi to 90 psi
• Features a Buna-N diaphragm for durable and reliable operation
• Lead-free brass construction ensures compliance with drinking water regulations

Product Highlights

Equipped with a calibrated adjustment dial, this valve does not require a separate pressure gauge for setup. The innovative design includes a non-corroding, unitized cartridge that simplifies maintenance and replacement processes.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DS06-100-LF

Technical Specifications

• Max Inlet Pressure: 250 psi
• Min Inlet Pressure: 25 psi
• Max Outlet Pressure: 90 psi
• Factory Setting: 50 psi
• Inlet/Outlet Size: 1/2 inch NPT
• Materials: Lead-free brass, Buna-N diaphragm
