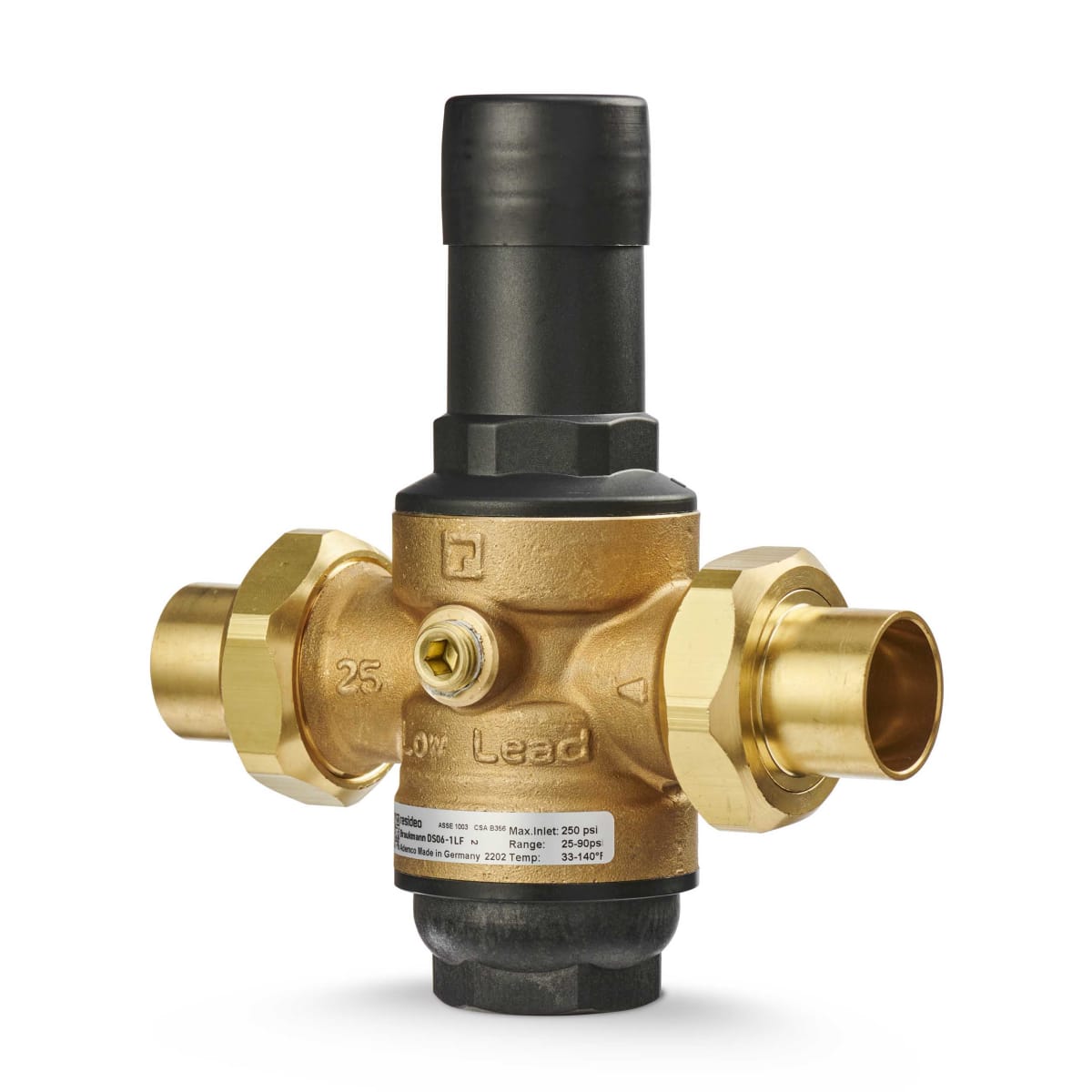

Resideo DS06-100-DUS-LF/U 1/2 in DialSet Female NPT Double Union Sweat PRV

Product Description

The Resideo DS06-100-DUS-LF/U is a 1/2 inch DialSet Pressure Regulating Valve (PRV). It is designed for applications with potable water and irrigation needs, providing a steady outlet pressure. The adjustment dial simplifies pressure settings without needing a gauge. This valve is essential for maintaining safe water pressure levels in plumbing systems.

• Adjustable downstream pressure settings
• Balanced cartridge design for reliable thermal expansion management
• 1/4 inch gauge tap connection for easy integration

Product Highlights

This valve is suitable for various applications, including irrigation and residential water systems. It supports easy pressure management.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS06-100-DUS-LF/U

Technical Specifications

• Size: 1/2 inch
• Type: PRV
• Connection Type: Sweat
• Gauge Tap Size: 1/4 inch
• Controlled Media: Water
• Dial Calibration: ± 4 psi
• Pressure Reducing Valve Housing Material: Brass
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance
