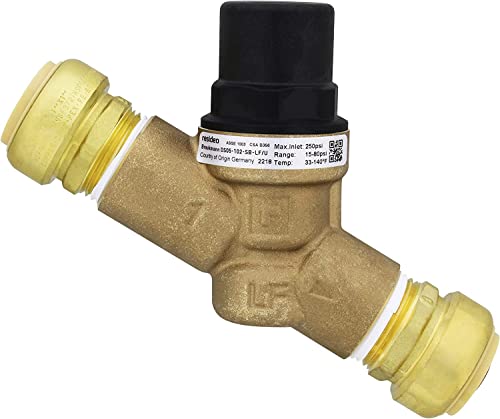

Resideo DS05-102-SB-LF Water Pressure Regulator Valve 1 Inch DN25 Push Connect

Product Description

The Resideo Braukmann DS05-102-SB-LF Water Pressure Regulator Valve is designed to maintain constant outlet pressure across various inlet supply pressures. Ideal for both indoor and outdoor applications, this valve is suitable for potable water and irrigation systems. It features a 1-inch DN25 push connection for easy installation. This valve is built with a stainless steel spring and a quality brass body for durability.

• Includes a tamper-resistant screwdriver slot for pressure adjustments
• Set desired pressure from 15 to 80 PSI using a flathead screwdriver
• Compliant with multiple standards including ASSE 1003-2020 and NSF/ANSI 61

Product Highlights

This water pressure regulator valve from Resideo ensures your pipes, fixtures, and appliances last longer by reducing water pressure. The stainless steel spring-loaded valve is housed in a brass body for strength and wear resistance.

Product Information

Standard Information

• Brand: Resideo
• MPN: DS05-102-SB-LF
• Type: Valve

Technical Specifications

• Size: 1 Inch
• Material: Bronze
• Weight: 1.69 lbs
• Lead Free: Yes
• Inlet Type: FNPT
• Outlet Type: FNPT

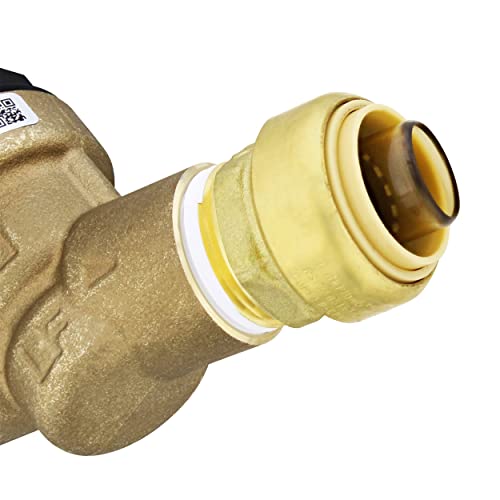

• Connection Type: Push-Fit x FNPT
• Max Inlet Pressure: 250 PSI
• Operating Temperature Range: up to 140°F
