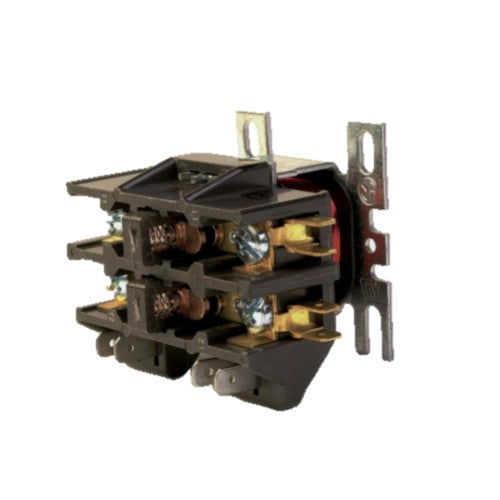

Resideo DPL2030B1003/U definite purpose contactor 120 v coil 40 a 1/4 inch

Product Description

The Resideo DPL2030B1003/U is a definite purpose contactor designed for various electrical applications. It features a 120 V coil and handles a maximum load current of 40 A at 240/277 VAC, 480 VAC, and 600 VAC. This 2-pole contactor utilizes quick-connect terminals for efficient installation and has a compact size of 1/4 inch. Its robust design ensures reliable performance in demanding duty cycles.

• Silver cadmium oxide contacts provide long life under demanding duty cycles
• Low profile design allows for more wiring room
• Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices

Product Highlights

Features silver cadmium oxide contacts, a low profile design, and versatile mounting options.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DPL2030B1003/U

Technical Specifications

• Coil Voltage: 120 V
• Maximum Load Current: 40 A at 240/277 VAC, 480 VAC, 600 VAC
• Number of Poles: 2
• Connection Type: Quick-Connect
• Manufacturer: Resideo Technologies
• Manufacturer Part Number: DPL2030B1003/U
• Brand: Resideo
• Item Number: HONDPL2030B1003U
