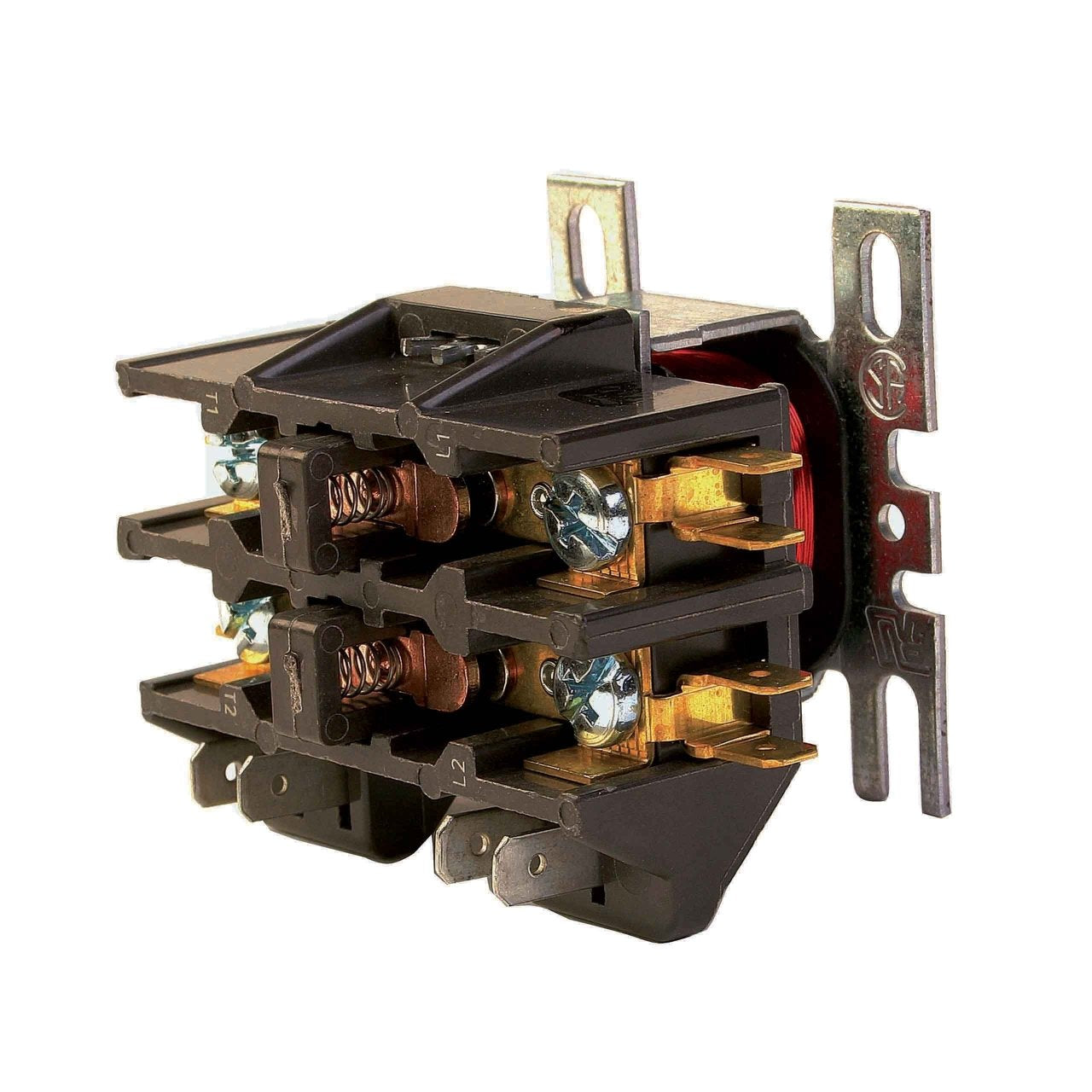

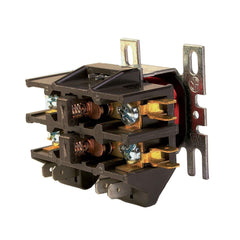

Resideo DPL2030A1004/U 2 pole 24 Vac economy definite purpose contactor 30 amp

Product Description

The RESIDEO DPL2030A1004/U is an electromagnetically-operated Economy Definite Purpose Contactor designed for switching induction motors. This 2 pole, 30 Amp unit operates with a 24 V ac coil and supports 50 Hz and 60 Hz frequencies. It is compliant with A2L refrigerants and functions reliably across an ambient operating temperature range of -25 °C to 70 °C.

• Compliant with A2L refrigerants.
• Silver cadmium oxide contacts provide long life under demanding duty cycles.
• Low profile design allows for more wiring room.

Product Highlights

Features multiple mounting holes and slots for versatile installation, ensuring interchangeability with various competitive devices.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DPL2030A1004/U

Technical Specifications

• Application: Economy Definite Purpose Contactor
• Coil Voltage: 24 V ac
• Coil Connection Size: 1/4 in
• Coil Connection Type: Quick Connect
• Poles: 2 Poles
• Operating Frequency: 50 Hz, 60 Hz
• Electrical Connection Type: Slotted & hex head screw w/ quad .250'' quick connect terminals
• Switch Action: DPST
• Min Operating Temperature: -25 °C
• Max Operating Temperature: 70 °C
• Maximum Load Current: 40 A at 240/277 VAC, 480 VAC, 600 VAC
