Resideo DP4040B5001/U Contactor Power Pro Definite Purpose Deluxe 4 Pole 40 Amp 120 Volt Multiple Position

Product Description

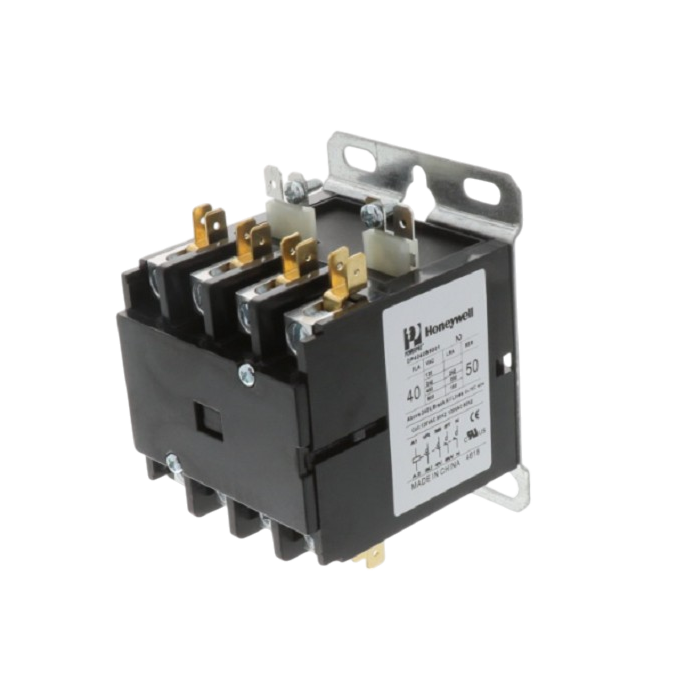

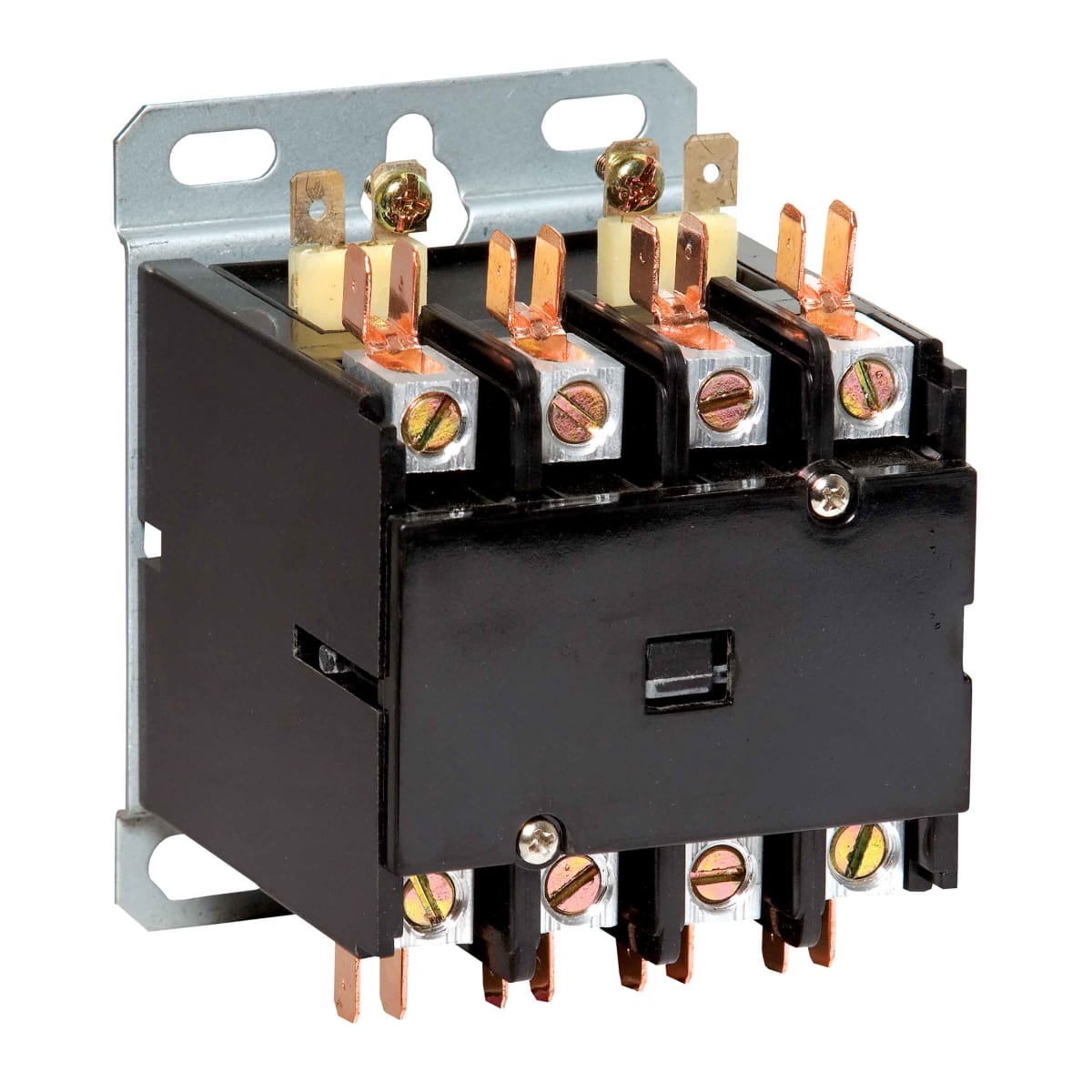

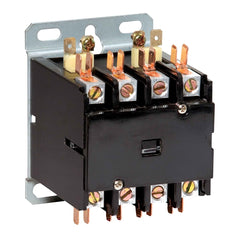

The RESIDEO DP4040B5001/U Contactor Power Pro Definite Purpose Deluxe is an industrial-grade contactor designed for reliable power management. It features a 4-pole configuration and handles 40 amps at 120 volts, providing enhanced power distribution. This robust unit offers multiple positions for flexible installation, making it suitable for HVAC systems, motor controls, lighting panels, compressors, and pumps in demanding industrial environments. Its heavy-duty design ensures longevity and optimal efficiency.

• Industrial-grade contactor with 4-pole configuration.
• 40-amp current handling capacity at 120 volts.
• Multiple positions for flexible installation and robust construction.

Product Highlights

Designed for superior power management, this heavy-duty contactor ensures reliable performance and optimal efficiency in industrial applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DP4040B5001/U

Technical Specifications

• Manufacturer Part Number: DP4040B5001/U
• Brand: RESIDEO
• Application: Starting Induction Motor
• Approvals and Standards: UL Component Recognized: File No. 14480, Guide No. NLDX2|CSA Certified: File No. LR6535|CE Compliant|RoHS Compliant|ARI 780/790
• Contact Electrical Rating (AFL): 40 A @ 240/277 Vac, 480 Vac, 600 Vac
• Contact Electrical Rating (Resistive): 50 A @ 240/277 Vac, 480 Vac, 600 Vac
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: lug connectors
• Operating Temperature (C): -20 C to +65 C
• Operating Temperature (F): -4 F to +149 F
• Switching: DPST
• Poles: 4
• Coil Contact Connections: 1/4 in. quick-connects and #6 screws
• Coil Voltage: 120 Vac
• Series: DP Series
• Type: Electromagnetically Operated Deluxe
• Category: HVAC Contactors
• UNSPSC: 39121529
• Manufacturer: Honeywell International Inc. / Resideo Technologies, Inc.
