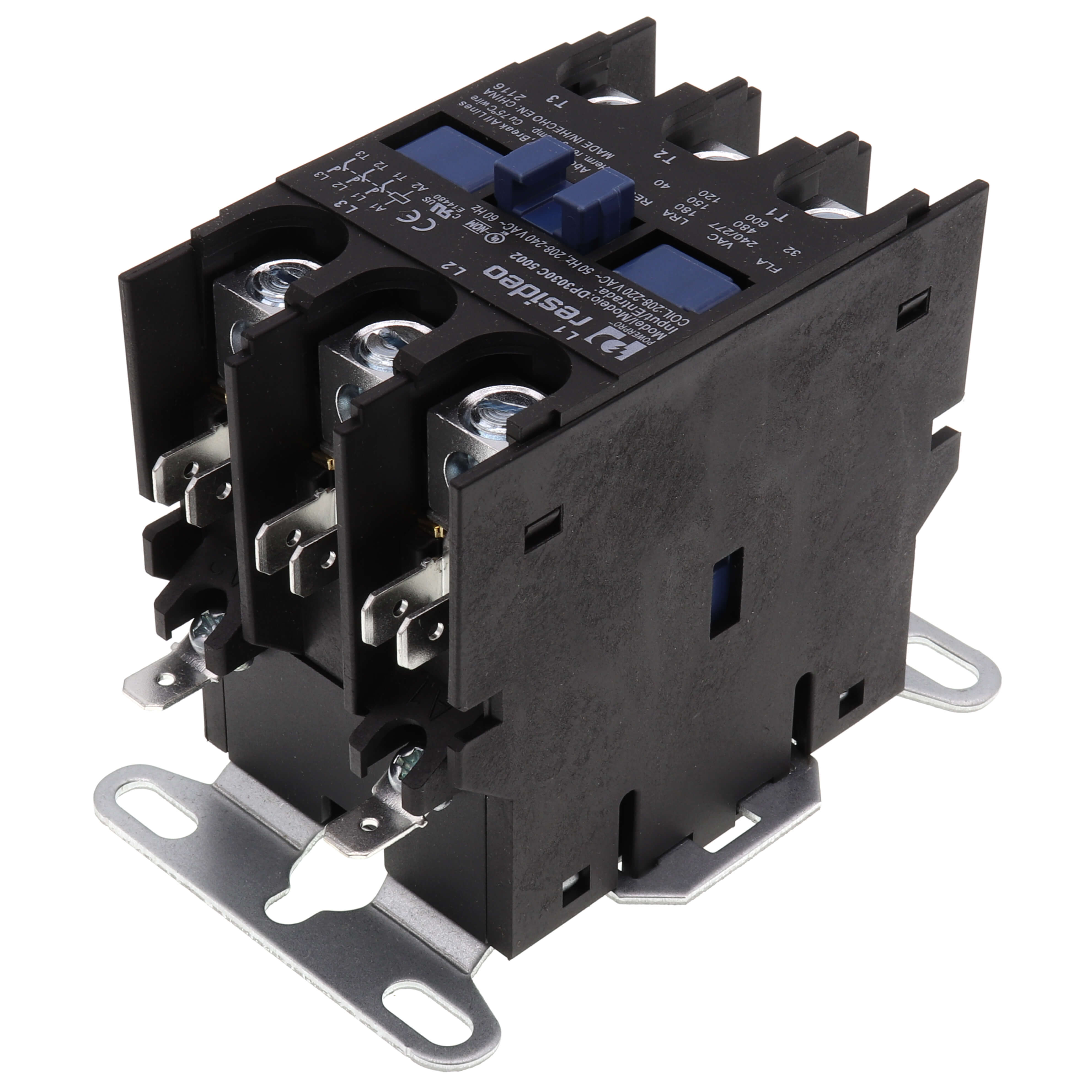

Resideo DP3030C5002 3-pole PWRPRO contactor 30A/240V

Product Description

The Resideo DP3030C5002 is a three-pole contactor designed for industrial applications, offering reliable and efficient control of electrical circuits. This 30A/240V PWRPRO contactor is suitable for high-power loads, including motor control in HVAC systems and power distribution in electrical panels. It ensures high standards of quality and performance for various automation and control systems.

• Three-pole design for controlling three-phase electrical circuits.
• 30A current rating and 240V voltage capacity for high-power loads.
• PWRPRO technology for enhanced performance and reliability.

Product Highlights

Reliable three-pole contactor for efficient control of electrical circuits and motor starting, UL/cUL listed for safety.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DP3030C5002

Technical Specifications

• MPN: DP3030C5002
• Brand: Resideo
• Manufacturer Code: HW
• Manufacturer: Resideo
• Poles: 3
• Voltage: 230 VAC, 208 VAC
• Amperage: 30 A
• Coil Voltage: 208 VAC/240 VAC
• Operating Temperature: -4°F to 149°F
• Main Electrical Connections: #10-32 combination head screws
• Coil Contact Connections: 1/4 in. quick-connects and #6 screws
• Application: PowerPro Definite Purpose Contactor
• Contact Rating: 30 A
• Mounting Type: Surface
• Line Load Terminals: Box lug or dual 0.25" quick connects
• Coil Terminals: Dual 0.25" quick connects
• Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC; 4A @ 120 VAC for lamp load
• Wire Size: 14-4 AWG
• Certifications: UL recognized, File #E246810, CE certified
• Product Type: Parts and Accessories
• Type: Hardware
