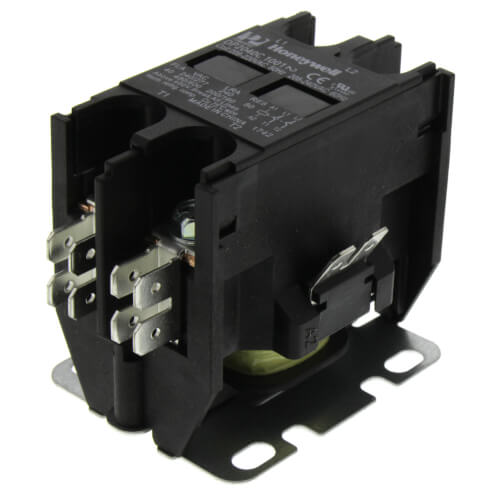

Resideo DP2040C1001 208 or 240 Vac 2 Pole Economy Definite Purpose Contactor 40 Amps 45FG20AG

Product Description

The Resideo DP2040C1001 is a robust 2 Pole Economy Definite Purpose Contactor designed for reliable starting of induction motors. With ratings up to 40 Amps at 240/277 Vac, it is engineered to meet stringent ARI-780 standards.

• Rated for 500,000 mechanical cycles, guaranteeing extended durability and performance.
• Features a low profile design with multiple mounting options for easy installation.
• Equipped with sturdy silver cadmium oxide contacts ensuring longevity and efficiency.

Product Highlights

This contractor is specifically crafted for intense duty cycles and meets the highest ARI requirement, making it an ideal choice for professional installations.

Product Information

Standard Information

• Ratings Voltage: 208 or 240 Vac
• Poles: 2
• Electrical Connections (main): #10-32 combination head screws
• Contact Connections (coil): 1/4 inch quick-connects

Technical Specifications

• Amperage Rating: 40 Amps at 240/277 Vac
• Dimensions: 2.37 inches high x 3.3 inches wide x 2 inches deep
• Application: Economy Definite Purpose Contactor
• Weight: 0.55 pounds
• Temperature Range: -4°F to 149°F
