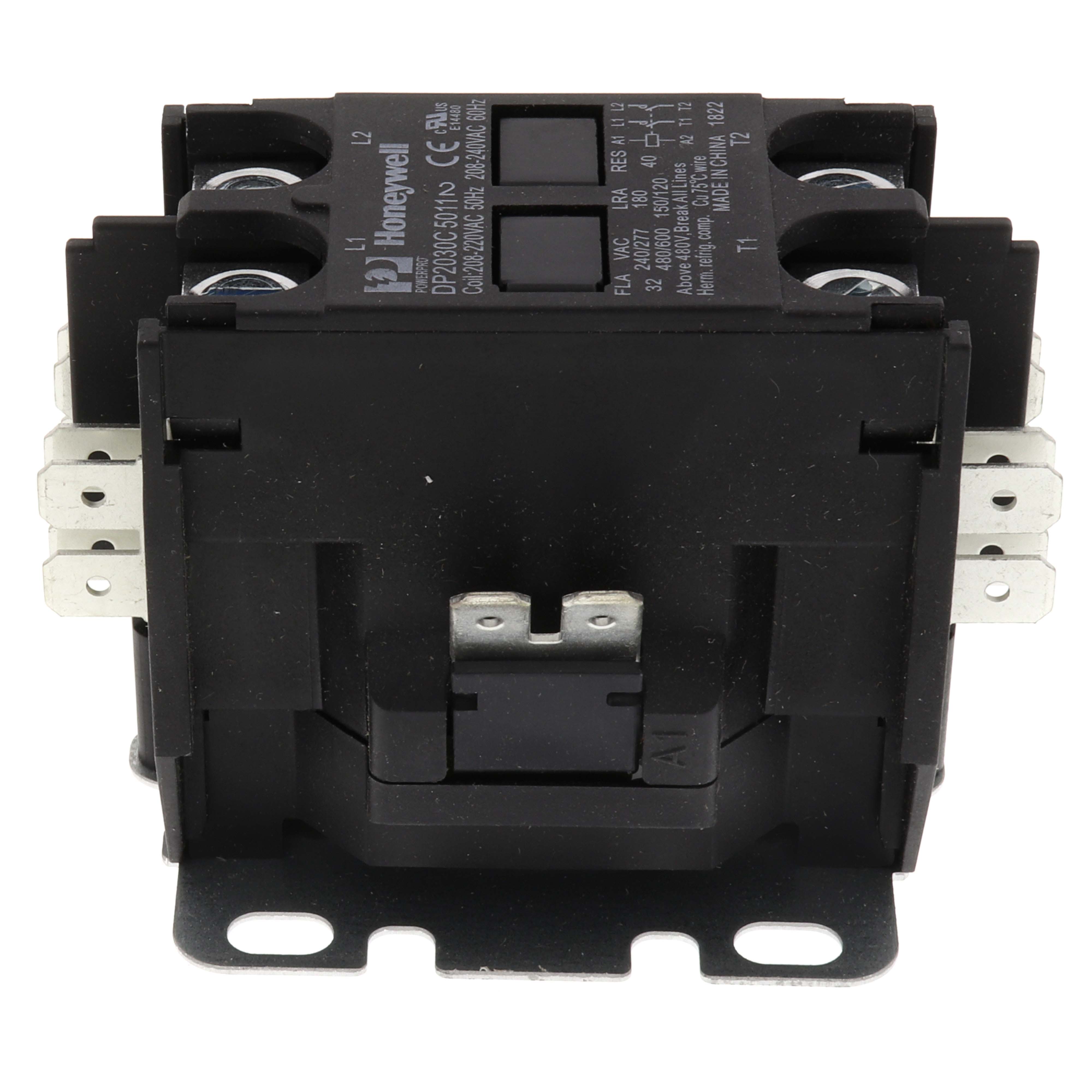

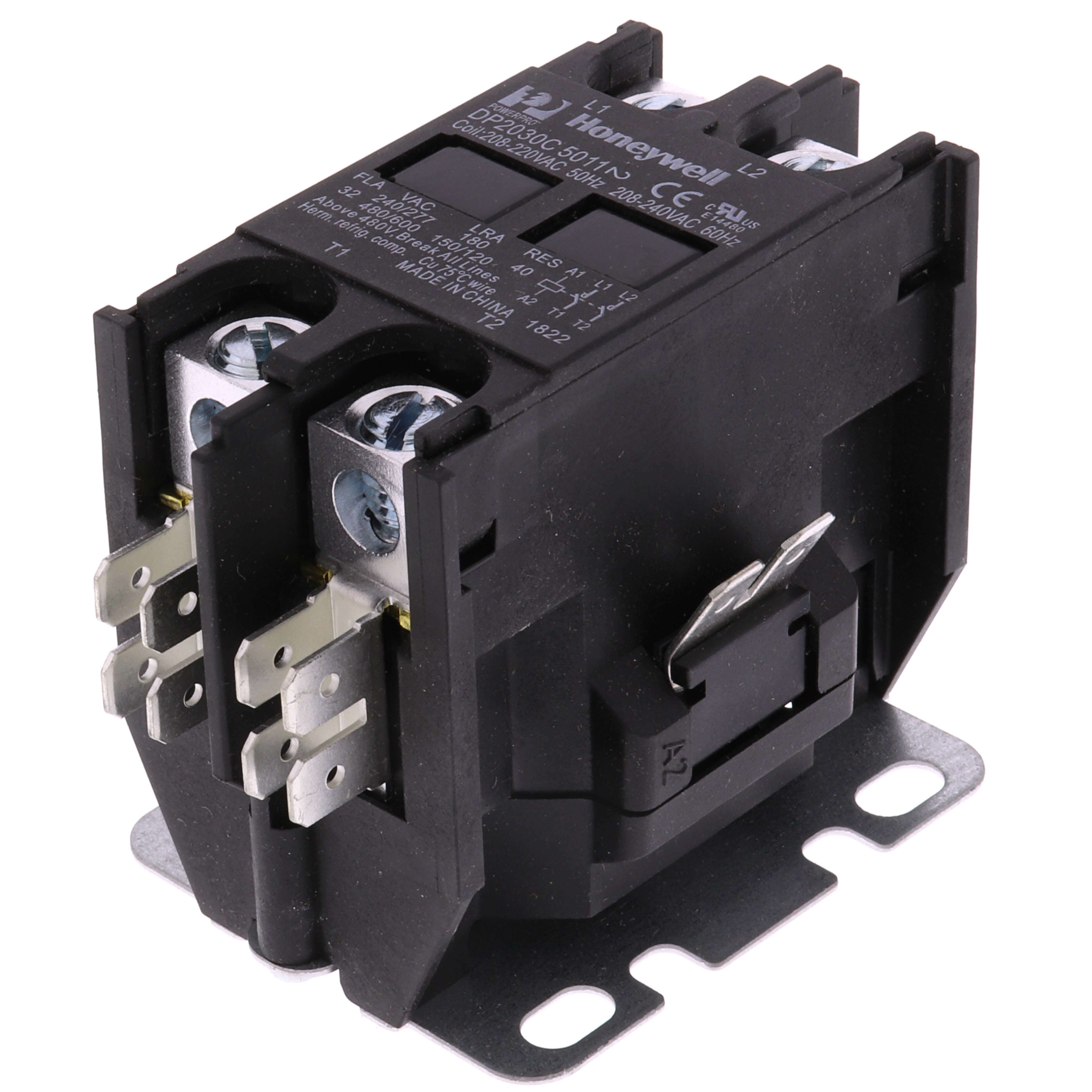

Resideo DP2030C5011 208 or 240 Vac 2 pole Definite Purpose Contactor 30 A

Product Description

Resideo DP2030C5011 is a two-pole definite purpose contactor rated for thirty amps at two hundred and eight or two hundred and forty volts AC. This product is designed for switching applications, particularly for starting induction motors.

• Meets ARI-780 standards for cycle life and durability.
• Constructed with silver cadmium oxide contacts for enhanced longevity.
• Features a low-profile design with multiple mounting options.

Product Highlights

This contactor is ideal for applications requiring reliable motor control and efficient electrical switching. Its robust design ensures performance in demanding settings.

Product Information

Standard Information

• Brand: Resideo
• MPN: DP2030C5011

Technical Specifications

• Voltage Ratings: 208 VAC, 240 VAC
• Amperage: 30 A
• Poles: 2
• Coil Connections: Double 1/4 inch quick-connects
• Main Connections: #10 combination head screws
• Electrical Cycle Life: 200,000 cycles
• Mechanical Cycle Life: 500,000 cycles
• Dimensions: 2.2 inches high x 3.31 inches wide x 2.17 inches deep
