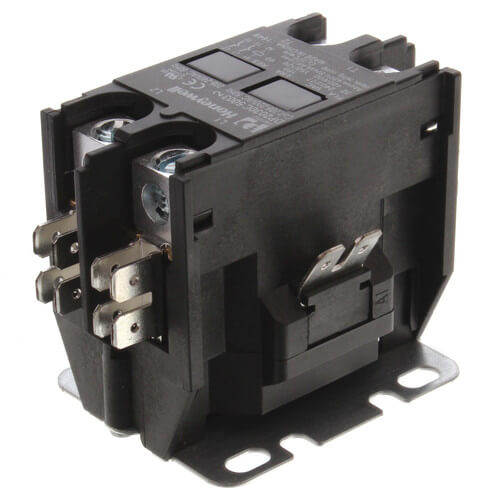

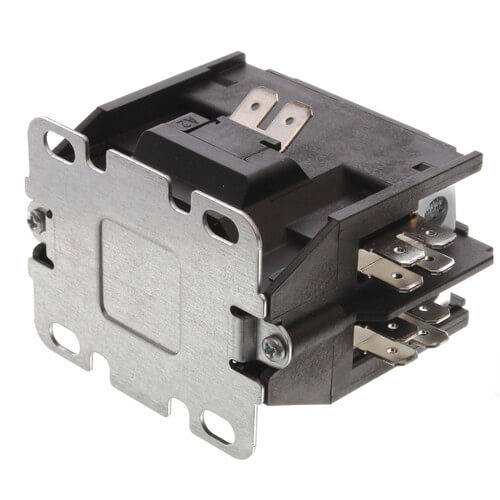

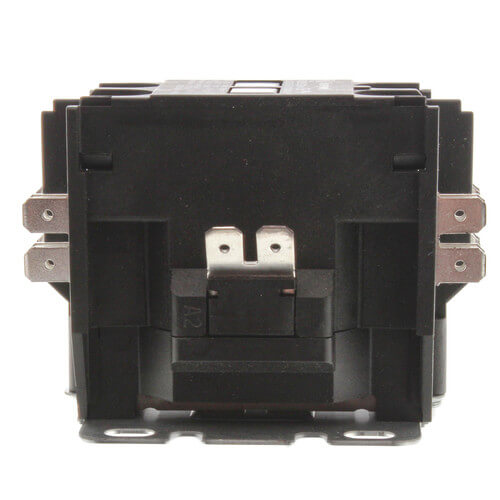

Resideo DP2030C5003 208 or 240 Vac 2 Pole Definite Purpose Contactor

Product Description

This Resideo DP2030C5003 208/240 Vac 2 pole definite purpose contactor is engineered for efficient performance in starting induction motors. It is widely trusted in the HVAC and other high-duty electrical applications.

• Compliant with the ARI-780 standard, ensuring a mechanical life of up to 500,000 cycles and an electrical life of 200,000 cycles.
• Features durable silver cadmium oxide contacts designed to withstand rigorous operating conditions and extend service life.
• Low profile and versatile mounting options which make it interchangeable with most competing units.

Product Highlights

Optimized for power management in commercial and industrial settings, the Resideo DP2030C5003 provides a reliable solution for motor starting with its robust electrical ratings and multiple mounting options.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DP2030C5003
• Category: Honeywell Contactors
• Electrical Ratings: 30 A @ 240/277 Vac, 48 A resistive load capacity

Technical Specifications

• Dimensions (WxHxD): 2.5 inches x 2.2 inches x 3.31 inches
• Temperature Range: -4°F to 149°F
• Connection Type: Sems screws
• Application: PowerPro Definite Purpose Contactor
• Weight: 0.58 lbs
• Poles: 2
• Voltage: 208/240V
• Amperage: 30
