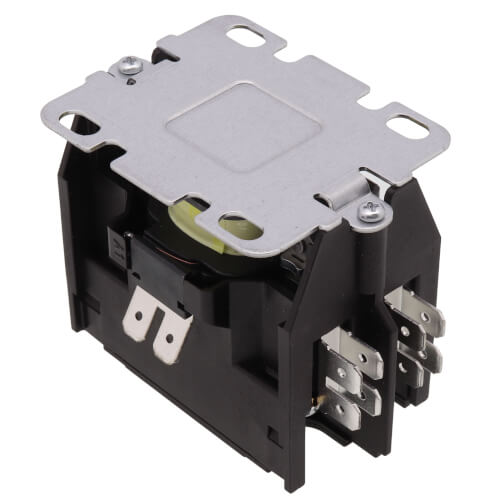

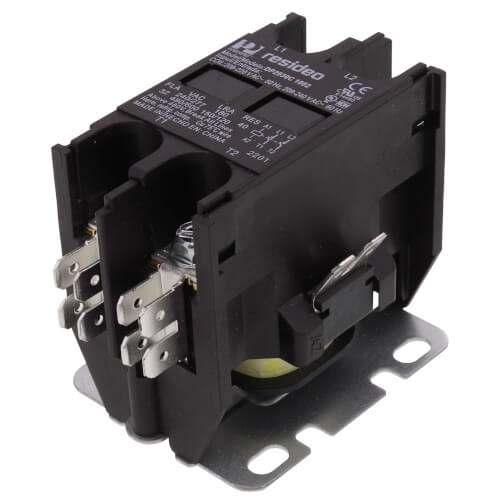

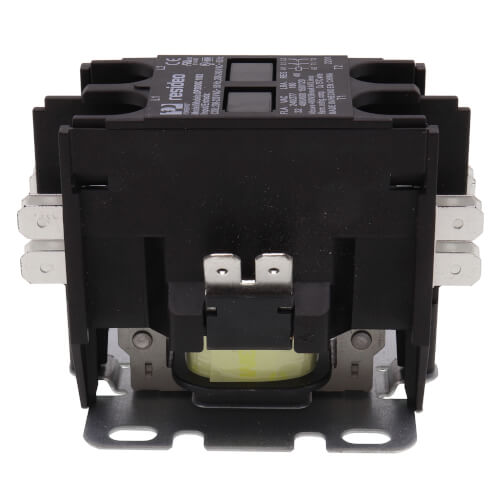

Resideo DP2030C1002 208/240 VAC 2 Pole Definite Purpose Contactor

Product Description

Generate the power you need with the Resideo DP2030C1002, a 208/240 VAC 2 Pole Definite Purpose Contactor designed for starting induction motors efficiently.

• Robust silver cadmium oxide contacts ensure durability and reliability.
• Compact design provides ample wiring space and multiple mounting options.
• Rated for both residential and commercial settings.

Product Highlights

This contactor is distinguished by its high efficiency and versatility, boasting dual silver cadmium oxide contacts which provide superior performance under extensive operational conditions. The design features multiple mounting points compatible with industry standards, making installation straightforward and adaptable.

Product Information

Standard Information

• Application: Economy Definite Purpose Contactor
• Frequency: 50 Hz; 60 Hz
• Underwriters Laboratories Inc.: Recognized Component (File No. 14480, Guide No. NLDX2)

Technical Specifications

• Poles: 2
• Amperage: 40 Amps at 240/277 Vac, 480 Vac, 600 Vac
• Temperature Range: -4°F to +149°F
• Electrical Connections: #10-32 combination head screws
• Coil Voltage: 208 Vac/240 Vac
