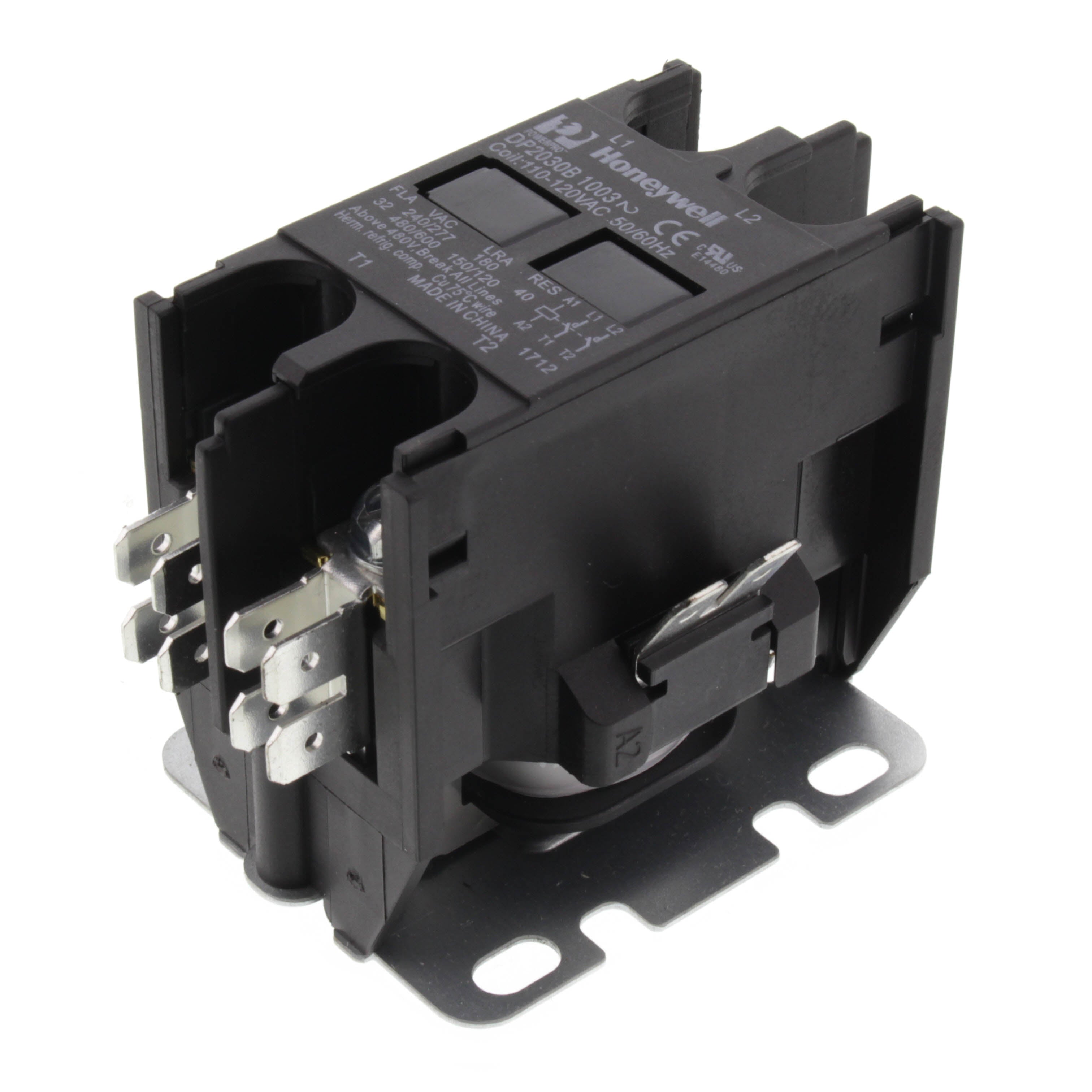

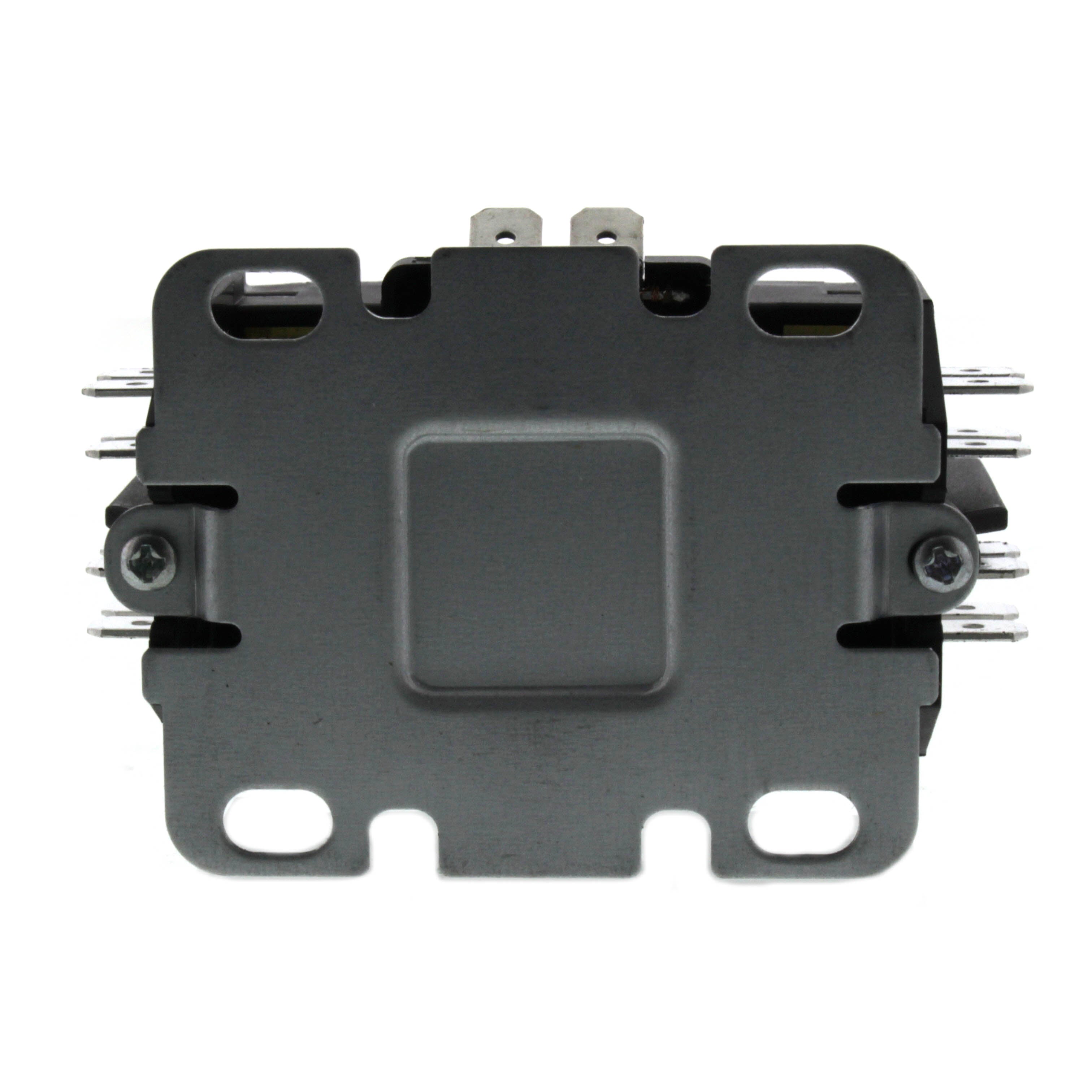

Resideo DP2030B1003 120 Vac 2 Pole Definite Purpose Contactor 30 A

Product Description

Resideo DP2030B1003 is a 120 Volt two-pole definite purpose contactor rated for thirty amps. This product is designed for starting induction motors safely and efficiently. The contactor features silver cadmium oxide contacts that enhance its longevity during demanding tasks. The low profile design allows for easy wiring, while multiple mounting holes provide flexibility in installation.

• Two-pole contactor with thirty amps rating.
• Silver cadmium oxide contacts for extended life.
• Convenient mounting options for installation.

Product Highlights

This contactor is an economy solution for various electrical applications, making it a reliable choice for professionals looking for durability and performance in electrical control.

Product Information

Standard Information

• Brand: Resideo
• MPN: DP2030B1003

Technical Specifications

• Voltage Rating: 120 Vac
• Poles: 2
• Amperage: 30 A
• Dimensions: 2.2 inches high × 3.31 inches wide × 2.17 inches deep
• Electrical Connections: #10 combination head screws
• Contact Connections: double 1/4 inch quick-connects
• Temperature Range: -4°F to 149°F
• Weight: 0.53 lbs
