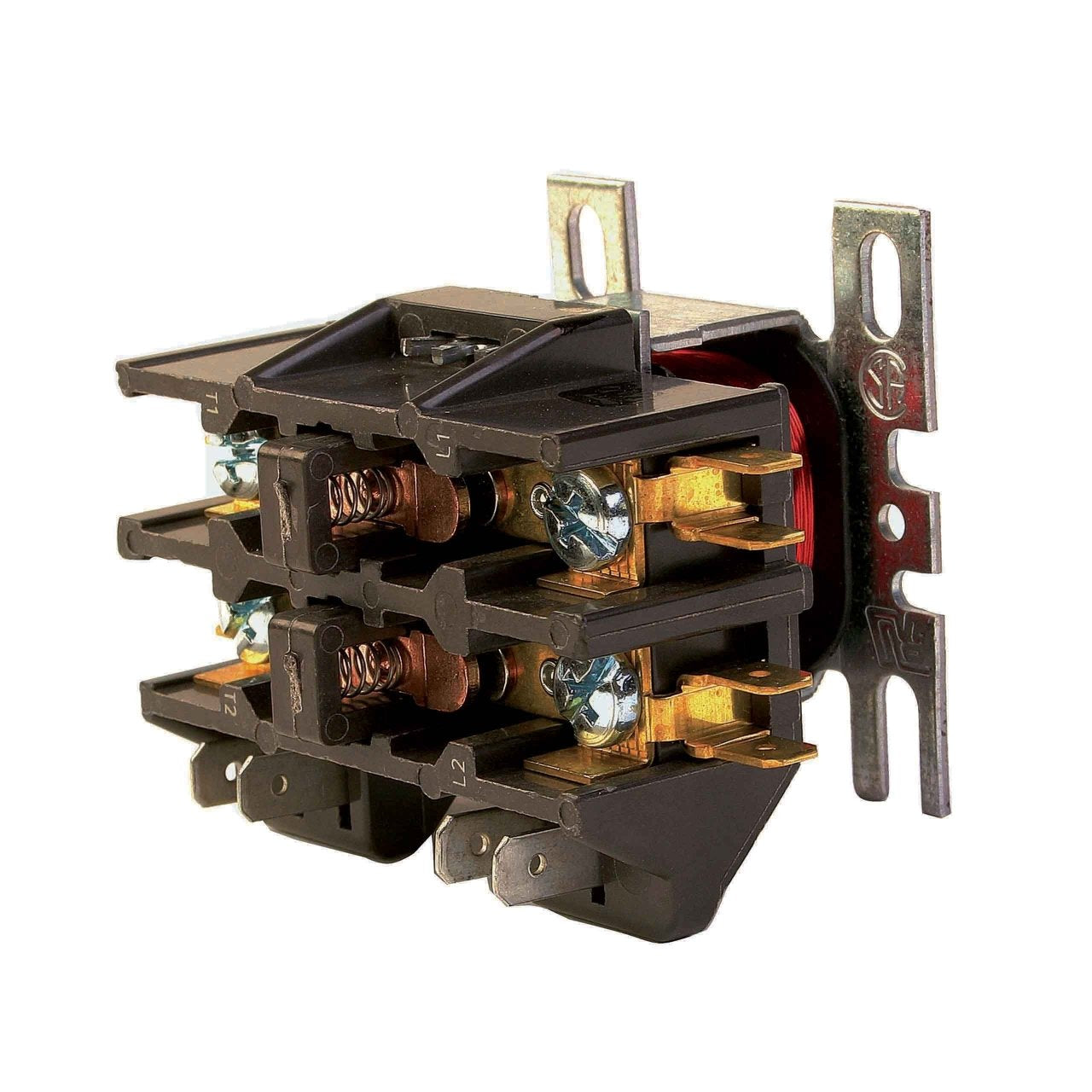

Resideo DP2030A1004/U 2 pole 24 vac economy definite purpose contactor

Product Description

The RESIDEO DP2030A1004/U is an electromagnetically-operated Definite Purpose Contactor designed for switching and starting induction motors. It features silver cadmium oxide contacts for extended life under demanding duty cycles and a low profile design for increased wiring room. Multiple mounting holes and slots ensure convenient, interchangeable mounting with various competitive devices.

• Silver cadmium oxide contacts provide long life under demanding duty cycles.
• Low profile design allows for more wiring room.
• Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.

Product Highlights

This 2-pole, 24 Vac contactor is ideal for starting induction motors, offering durability and flexible installation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DP2030A1004/U
• Country of Origin: China

Technical Specifications

• Application: Economy Definite Purpose Contactor
• Approvals and Standards: UL Component Recognized: File No. 14480, Guide No. NLDX2, CSA Certified: File No. LR6535, CE Compliant, RoHS Compliant, ARI 780/790
• Contact Electrical Rating AFL: 30 A @ 240/277 Vac, 480 Vac, 600 Vac
• Contact Electrical Rating Resistive: 40 A @ 240/277 Vac, 480 Vac, 600 Vac
• Coil Voltage: 24 V ac
• Coil Connection Size: 1/4 in
• Coil Connection Type: Quick Connect
• Number of Poles: 2 Poles
• Operating Frequency: 50 Hz, 60 Hz
• Connection Type: Screws
• Electrical Connection Size: #10-32
• Electrical Connection Type: Combination head screws
• Switch Action: DPST
• Minimum Operating Temperature: -25 °C (-13 °F)
• Maximum Operating Temperature: 70 °C (158 °F)
• Height: 58 mm (2.3 in)
• Width: 81 mm (3.2 in)
• Operation Type: Electromagnetically Operated
• Contactor Type: Definite Purpose
• Category: Contactors
• Configuration: Screw Connectors
• Product category: Relays & Contactors
• Product subcategory: Contactors
• Series: DP20
