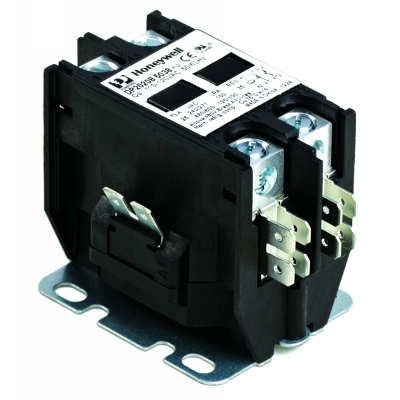

Resideo DP2020A5022 Definite Purpose Contactor 24 VAC 2 Pole 20 Amp

Product Description

The Resideo DP2020A5022 is a 24 VAC, 2-pole Definite Purpose Contactor designed specifically for starting induction motors. Engineered for reliable performance, this model incorporates robust features like silver cadmium oxide contacts which enhance lifespan under challenging duty cycles.

• Supports ARI-780 Standard with impressive mechanical and electrical life ratings.
• Compact design facilitates ample wiring space and versatile mounting options.
• Engineered for 20 Amps operation across a varied voltage range up to 600 Vac.

Product Highlights

Constructed to handle severe operational demands, this contactor meets critical performance standards and is suitable for a wide range of industrial applications.

Product Information

Standard Information

• Brand: Resideo
• Model: DP2020A5022
• Type: Definite Purpose Contactor

Technical Specifications

• Current Capacity: 20 Amps
• Voltage: 24 VAC
• Poles: 2
• Temperature Range: -4°F to 149°F
• Coil Ratings: 24 VAC
• Shipping Dimensions: 3.45 x 2.7 x 2.4 inches
