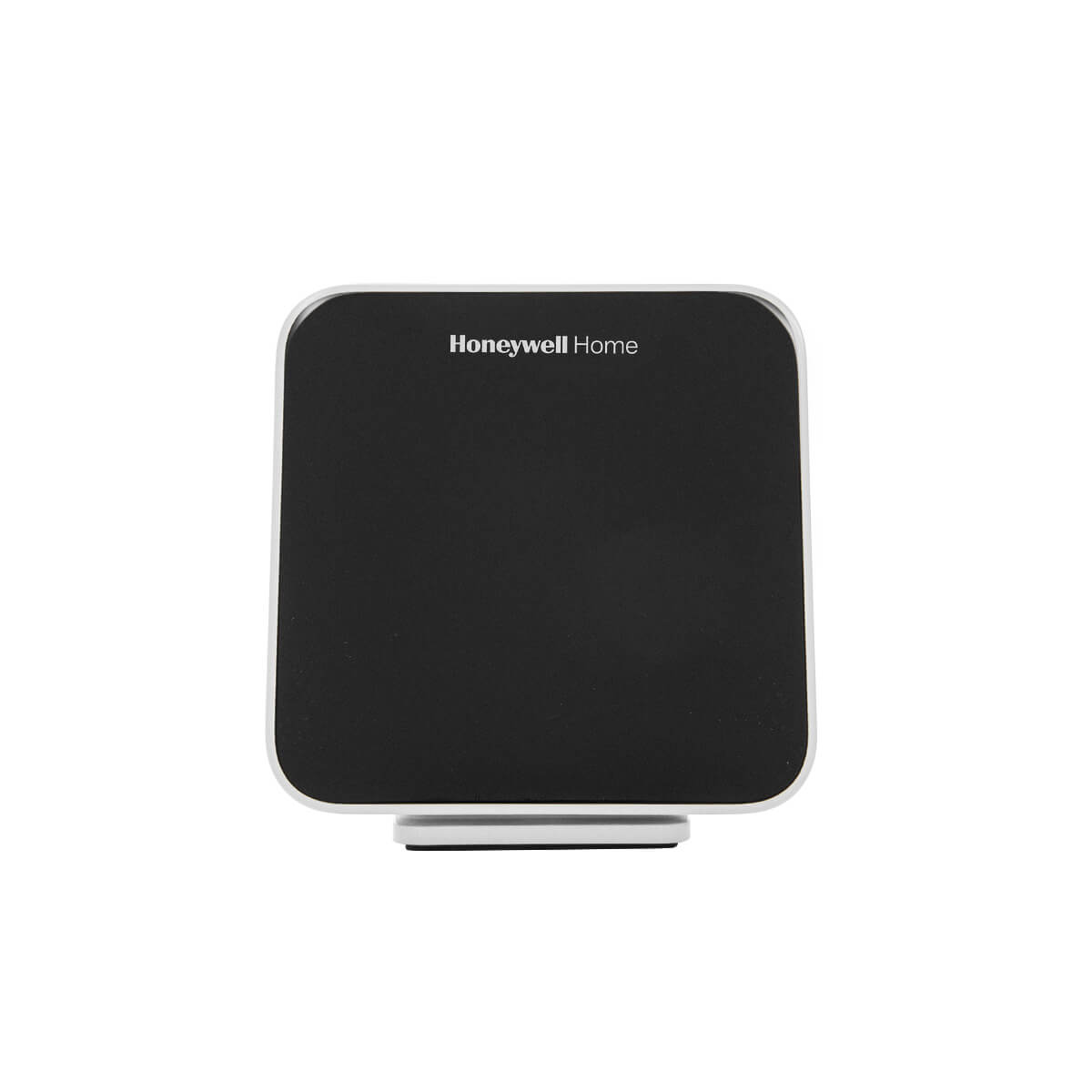

Resideo DC6000WF1001 D6 Pro WiFi Ductless Controller

Product Description

The RESIDEO DC6000WF1001 D6 Pro WiFi Ductless Controller helps your customers get more out of their ductless systems. Compatible with over 100 ductless mini-split system models from top manufacturers, this controller improves virtually any ductless mini-split system. It features minimal hardware, easy installation, and effortless homeowner hand-off. The pro controller works with the Resideo app, sending a personalized email to complete the WiFi connection process.

• Compatible with most major brands and models
• WiFi communication
• Infrared range to ductless unit in line of sight is 30 feet

Product Highlights

The D6 Pro WiFi Ductless Controller offers straightforward design, intuitive controls, and auto changeover for fewer callbacks.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DC6000WF1001

Technical Specifications

• Application: Ductless, Minisplit Control
• Product Features: Compatible with most major brands and models, WiFi communication, Infrared range to ductless unit in line of sight is 30 ft., Programmable (through app) for a time based 7 day, 5-2 day, or 1-week programs, or non-programmable, or GeoFence with sleep periods, 5-year warranty
• Thermostat Type: Programmable, Ductless Controller, Communicating, Digital, Low Voltage
• Approvals and Standards: FCC Approved, Transformer UL Approved, WiFi Alliance Approved
• Smart Home Integration: Yes
• Display Type: Touch Screen
• Display Size: 6.89 sq in
• Touchscreen: Yes
• Display Language: English
• Modes of Operation: Heat, Cool, Auto, Off
• Programming Features: Geofencing
• Program Type: Manual / Not Programmed, 5-2 Programmable, 1 Week, 7-Day Programmable
• Energy Star Certified: Yes
• Power Supply: USB cable (included), Wall plug (included)
• Warranty: 5 Years
• Includes: D6 Controller, wall plug, 6 ft USB cable, tabletop stand, wall mount plate, wall mount adhesive strips (2), Installation Guide, Quick Guide.
• For Use With: Mitsubishi, Daikin, Fujitsu, LG, Samsung, Gree, Midea, Carrier, Bryant, Payne, Trane, Lennox, Panasonic, Haier, ComfortMaker, JCI, Kenmore, TempStar, Frigidaire, ComfortStar.
• WiFi: Yes
• WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
• Z-Wave Specifications: Not Applicable
• RedLINK: No
• Operating Relative Humidity (Max): 90% Non-condensing
• Operating Relative Humidity (Min): 5% Non-condensing
• Backlight Options: Adjustable
• Demand Response: Yes
• Temperature Accuracy: 0.8°C, 1.5°F
• Power Supply Frequency: 50 Hz, 60 Hz
• Mounting Location: Tabletop stand (included), Wall mount with adhesive strips (included)
• Product Height: 3.5 in
• Product Length: 3.5 in
• Product Depth: 0.79 in
• Utility Rewards: Yes
• Sensor Type: Thermistor
